Protein, DNA, and RNA markers with pre-determined fragment sizes and concentrations are commercially available.

Considering this, how much is a DNA ladder?

For a standard electrophoresis system, we recommend loading 0.5 µg (20 µl) of the Fast DNA Ladder on the agarose gel. For a fast electrophoresis system (5 to 30 minutes separation), follow the system's manufacturer recommendations: 5 to 20 µl load. A dilution of the ladder may be required.

Similarly, what is the difference between DNA ladder and DNA marker? DNA marker means a sequence of DNA used to mark a particular location on a particular chromosome while DNA ladder is just DNA fragment of specific size and it could be from any source of DNA .

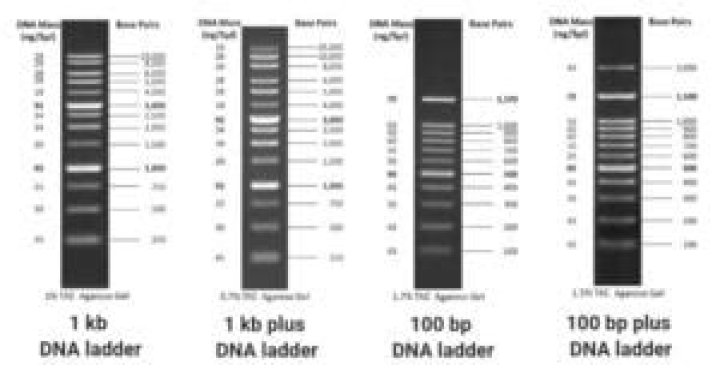

In this regard, what are the most common types of DNA ladders?

Most Popular DNA Ladders

  • 1 kb Plus. 1.0% TBE agarose gel. Mass values are for 1 µg/lane.
  • 1 kb. 0.8% TAE agarose gel. Mass values are for 0.5 µg/lane.
  • 100 bp. 1.3% TAE agarose gel. Mass values are for 0.5 µg/lane.
  • 50 bp. 3% TBE agarose gel. Mass values are for 1 µg/lane.
  • Low Molecular Weight. 3% TBE agarose gel.

How do you make a DNA ladder?

PCR is used to generate different types of DNA fragments for the construction of a DNA ladder. In the very first step, we have to select the plasmid. Use bacteria phage plasmid. Now digest the plasmid with the appropriate restriction endonuclease so that the circular DNA breaks open.

Related Question Answers

Do DNA ladders expire?

The recommended loading volume of 1 kb DNA Ladder is 6 μL per lane. Storage: Store at -30°C to +30°C. Shelf Life: Shelf Life: Stable until expiry date (EXP) on label. If product is frozen, thaw at room temperature (15 - 25°C).

Why do gels smile?

The main causes of bands “smiling” on a gel are: Uneven heating of the gel across different lanes. This is usually caused by high voltage. To avoid this, the user can run the gel slowly (reduce the voltage) so that the temperature inconsistency is minimized.

What would happen if the gel was run for too long?

If you run gel electrophoresis too long, the sample can run out of the bottom of the gel.

Why do we load DNA ladders onto your gels?

Gel electrophoresis is a technique used to separate DNA fragments according to their size. DNA fragments are negatively charged, so they move towards the positive electrode. Because all DNA fragments have the same amount of charge per mass, small fragments move through the gel faster than large ones.

What is another name for DNA?

Deoxyribonucleic Acid (DNA)

Why is the DNA ladder not separating?

When increasing percentage of low melting agarose gel (1.5% low melting or 1% low melting) the bands and ladder do not separate enough, when running on lower voltage such as 60-80V, for 2-3hours. Increasing voltage would melt the low-melting agarose.

What can a DNA ladder help determine?

DNA ladder is commonly used to determine the size of DNA fragments by electrophoresis in routine molecular biology laboratories.

How do you store DNA ladders?

1 kb DNA Ladder is stable for at least 3 months at 4°C. For long term storage, store at -20°C. If samples need to be diluted, use TE or other buffer of minimal ionic strength. DNA may denature if diluted in dH20.

What is DNA mass standard?

Molecular mass standards

Size standards are a mixture of DNA fragments that have masses spanning a certain range. Frequently the fragments are produced by digestion of a large molecule with restriction enzymes. Mass standards used in our experiments (Invitrogen 1 kb Plus DNA Ladder No. 10787-018).

What does BP mean in DNA ladder?

1,000-4,000-base pairs

What is the sides of DNA called?

The shape of DNA is a double helix, which is like a twisted ladder. The sides of the ladder are made of alternating sugar and phosphate molecules. The sugar is deoxyribose. The rungs of the ladder are pairs of 4 types of nitrogen bases.

What is the DNA ladder made of?

DNA, which stands for deoxyribonucleic acid, resembles a long, spiraling ladder. It consists of just a few kinds of atoms: carbon, hydrogen, oxygen, nitrogen, and phosphorus. Combinations of these atoms form the sugar-phosphate backbone of the DNA -- the sides of the ladder, in other words.

What charge does DNA have?

negatively charged

What does 1kb ladder mean?

1 kb plus DNA ladder is a DNA size standard consisting of DNA fragments of length ranging from 0.5 kb to 10 kb used for the determination of the size of double-stranded DNA fragments of length ranging from 250 bp to 25,000 bp. 1 kb plus DNA ladder consists of 14 individual chromatography-purified DNA fragments.

What do bubbles mean in gel electrophoresis?

When running agarose or polyacrylamide gels, bubbles mean the electrodes are connected, plugged in, and that current is flowing.

What can a DNA ladder help determine quizlet?

A DNA ladder usually contains a set of known DNA fragments with different sizes in base pairs (bp) or kilobases (kb).

Terms in this set (17)

  • To determine which organisms are most closely related.
  • To determine paternity of a child.
  • For crime scene analysis.

What makes a good DNA marker?

Markers should exhibit high level of polymorphism. In other words, there should be variability in the markers. It should demonstrate measurable differences in expression between trait types and/or gene of interest.

What is the purpose of the DNA ladder marker?

A molecular-weight size marker, also referred to as a protein ladder, DNA ladder, or RNA ladder, is a set of standards that are used to identify the approximate size of a molecule run on a gel during electrophoresis, using the principle that molecular weight is inversely proportional to migration rate through a gel

What is a marker or ladder in gel electrophoresis?

A marker or ladder is a set of DNA fragments and the base pair length of each fragment is known. It is considered a standard because it can be used as a tool from which to measure the lengths of your unknown DNA fragments.

Where Is DNA Found?

Most DNA is located in the cell nucleus (where it is called nuclear DNA), but a small amount of DNA can also be found in the mitochondria (where it is called mitochondrial DNA or mtDNA). Mitochondria are structures within cells that convert the energy from food into a form that cells can use.

What is a standard DNA marker?

Standard DNA markers are generated by restriction digestion of plasmid and deproteinization of the DNA fragments. The molecular weight of the digested DNA fragments determines the distance they would migrate on the gel.

What would happen if you switched the black and red wires gel electrophoresis?

What would happen if you switched the black and red wires? Black is negative charge, DNA has negative charge, red is positive charge. Not running if not connected correctly.

What does DNA look like?

The DNA molecule is a double helix: that is, two long, thin strands twisted around each other like a spiral staircase. The sides are sugar and phosphate molecules. The rungs are pairs of chemicals called 'nitrogenous bases', or 'bases' for short. The DNA molecule has two important properties.

What is a 100 bp ladder?

Invitrogen 100 bp DNA Ladder is designed for sizing and approximate quantification of double-stranded DNA in the range of 100 bp to 2,000 bp. 100 bp DNA Ladder consists of 13 individual chromatography-purified DNA fragments and has reference bands at 2000, 1500, and 600 bp for easy orientation.

What is a DNA size standard ladder?

Typical size standards are made up of DNA or RNA fragments in variable length in the range of 10bp to 1000bp (base pair) increments. One universally used DNA ladder measures up to 1 kilobase pair (1Kb) and contains 1-10 Kb fragments.

How do you make a 100 bp DNA ladder?

We recommend loading 0.5 μg of 100 bp DNA Ladder diluted in sample buffer. All fragments have 4-base, 5´ overhangs that can be end labeled using T4 Polynucleotide Kinase (#M0201) or filled-in using DNA Polymerase I, Klenow Fragment (#M0210) (1). Use α-[32P] dATP or α-[32P] dTTP for the fill-in reaction.

What is the purpose of gel electrophoresis?

Gel electrophoresis is used to separate macromolecules like DNA, RNA and proteins. DNA fragments are separated according to their size. Proteins can be separated according to their size and their charge (different proteins have different charges).

What is the function of DNA standard?

What is the function of the DNA Standard (also called the "Ladder"?) It contains DNA of known lengths. It gives estimation on the gel.

Is DNA positive or negative?

Because DNA is negatively charged, molecular biologists often use agarose gel electrophoresis to separate different sized DNA fragments when DNA samples are subjected to an electric field — due to their negative charge, all the DNA fragments will migrate toward the positively charged electrode, but smaller DNA

How many sets of primers are needed for DNA profiling?

two primers
