To test the cold cranking Amps, keep your multimeter connected to the battery terminals and then fire up the ignition of your car. This is a job for two people, where one needs to take control of the ignition while the other checks for fluctuations while the engine is cranked up.
Simply so, can you measure battery amps with a multimeter?
A good method to determine the charge retained in your battery is to check the amperage output using a multimeter.
Additionally, how do you measure cold cranking amps? To test CCA, apply different discharge currents to see which amperage keeps the battery above a set voltage while cold. Fully charge battery according to SAE J537 and cool to -18°C (0°F) for 24 hours. While at subfreezing temperature, apply a discharge current equal to the specified CCA.
Beside above, how do you check cranking voltage?
Do this test: Disable the ignition or injection to prevent the engine from starting. Then put a voltmeter across the battery posts while cranking it with the key or an external remote starter button. Crank for 15 seconds (no longer); the battery voltage should remain 9.6 volts or above.
How do I test my truck battery with a multimeter?

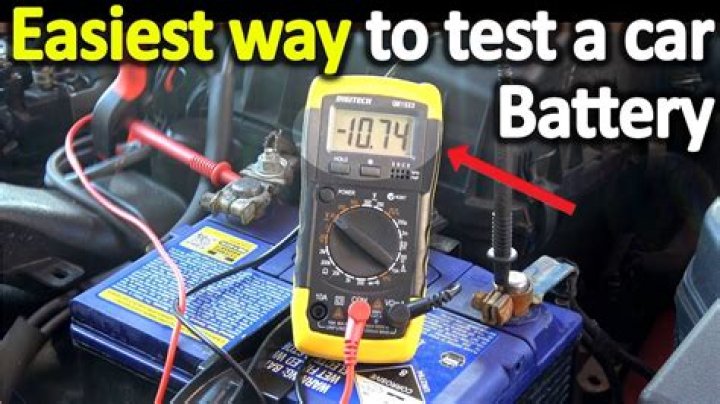

Using a Multimeter to Test a Car Battery
Set the multimeter to 15-20 volts. Turn the lights off. Connect the multimeter to the positive and negative battery terminals. If you don't have a voltage of around 12.6 volts, you may have a bad battery.
Related Question Answers
Can a battery have voltage but no amps?
Cannot reach higher than 10.5 volts when being charged, then the battery has a dead cell. Fully charged (according to the battery charger) but the voltage is 12.4 or less, the battery is sulfated.Can a battery have voltage but no AMPs?
| State of Charge | Voltage |
|---|---|
| 25% | 12.0 |
| Discharged | 0 - 11.9 |
What should a 12 volt battery read when fully charged?
That's only a difference of 0.25 volts on each cell from fully charged to fully discharged. So a 12volt battery will measure at about 12.9 volts when it's fully charged and about 11.4 volts when it is fully discharged. That's a total of 1.5 volts that represents the full range of charge on a 12volt battery.How do you check a CCA battery?
To test the CCA with a carbon pile, a battery that must have an SoC of 70 to 100 percent. It is then loaded with half the rated CCA for 15 seconds at a temperature of 10º C (50º F) and higher. As an example, a 500 CCA battery will discharge at 250A for 15s, and the battery passes if the voltage stays above 9.6V.How do I test a 12 volt battery with a multimeter?
Touch the black lead to the negative (-) terminal on the battery and the red lead to the positive (+) terminal. Note the reading on the meter. It tells you the voltage between the battery terminals. If the battery is good, the reading should actually be higher than 12 volts.Is a battery AC or DC?
Batteries that discharge emit a constant DC power in a single direction, and supply electricity through the positive to the negative terminal. The general rule of thumb dictates that everything that runs off an AC adapter, USB cable or battery relies on DC for we simply cannot store AC in batteries.How many amps does a 12 volt battery have?
Quick Answer: How Many Amps Are In A 12 Volt Car Battery?? A typical car battery with 12 volts rating has a capacity of 48 Ah. It means that when fully charged, the battery can deliver one amp for 48 hours, two amps for 24 hours and so on.How do you check dc current with a multimeter?
To start, let's measure voltage on a AA battery: Plug the black probe into COM and the red probe into mAVΩ. Set the multimeter to "2V" in the DC (direct current) range. Almost all portable electronics use direct current), not alternating current.What is the symbol for amps on a multimeter?
What are voltage, current, and resistance?| Variable | Symbol | Unit |
|---|---|---|
| Voltage | V | Volts |
| Current | I | Ampere |
| Resistance | R | Ohm |
What is the minimum cranking voltage specification?
The average cranking voltage was 11.28 volts, with the minimum at 11.16 volts. The maximum initial cranking amperage was 161.0 amperes with an average of 114 amperes during a 7-second extended cranking test.Is 12.2 volts enough to start a car?
12.2v is enough to start the car. It's a 12v battery after all, it's just voltage settling after being at ~14v when driving.What is meant by cranking voltage?
Cranking PowerTypically, as temperatures drop, more power is needed to start the engine. Cold cranking amps (CCA) is a rating that measures a battery's cranking power. It refers to the number of amps a 12-volt battery can deliver at 0°F for 30 seconds while maintaining a voltage of at least 7.2 volts.
