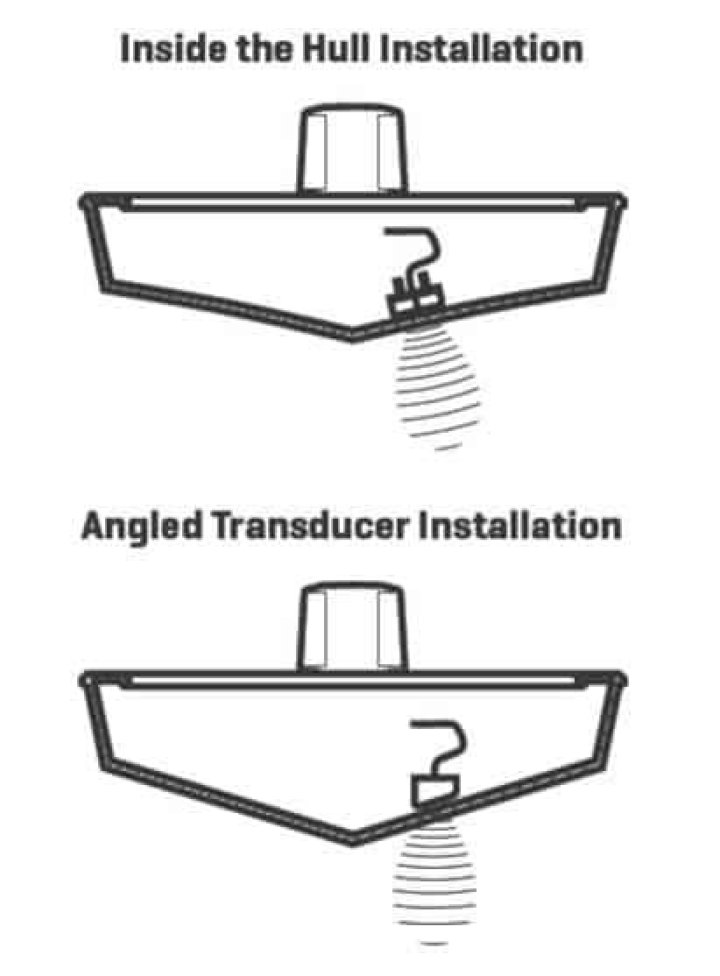

In-hull transducers can transmit and receive through the hull. No holes or external objects to snag on a trailer. In-hull: Installed against the inside of the hull bottom, the in-hull transducer sends its signal through the hull. “Shoot through hull” transducers do not need direct water contact.
Similarly one may ask, how does a thru hull transducer work?
An in-hull (aka shoot-through) transducer mounts to the inside of the hull and transmits and receives sonar signals through fiberglass, eliminating the need for drilling holes in the hull. This also eliminates the need to remove the boat from the water for installation, and there will be no protrusions under the boat.
Also, does transducer need to be in water to work? You will not be able to test out the transducer's ability to read depth when the boat is not in water. Air dissipates the sound waves produced by the transducer and will cause the transducer to not be able to produce a reading.
Also to know, will a transducer work through Fibreglass?
If the bottom of your hull is solid fiberglass, meaning not cored, you can shoot through the hull by mounting a transducer inside the boat.
How do I know if transducer is working?
The first thing you can do to check if your transducer is working is to turn it on and touch its surface. You should be able to feel the sound pulses as vibrations, and often you can also hear them as clicking sounds.
Related Question Answers
Will a transducer work through aluminum?
A true thru hull transducer is one that you drill a hole for, and mount thru the hull. Those work fine on aluminum boats. I think you are referring to a puck transducer designed to shoot thru the hull. Those will not work on an aluminum boats.What is the best transducer for deep water?
Transducer FrequencyA low frequency around 50 KHz is excellent for displaying a wide area of the bottom, especially if the water is deep, while a higher frequency shows more bottom detail in shallow water, a very useful trait for fishfinders and recorders.
How do you remove a through hull transducer?
If the thru hull is plastic then it will be easier. Take a chisel and chisel through the retainer nut inside the hull. if you crack it in about three or four places it will come right off. Then take a good hammer and you should be able to drive it out from the inside.Can I use my old transducer?
There is often a good chance that your transducer is fine and it's only the display that has died. Despite the transducer being old there is a chance it may be the same frequency as the new depth sounder. If it's a 200Khz transducer it will likely work with Raymarine and some others that are 200Khz.What is inside a transducer?
The main component of a depth transducer is the. piezoceramic element. It is the part that converts. electrical pulses into sound waves, and when the. echoes return, the piezoceramic element converts the.How do you test a marine transducer?
Just connect the multimeter to the wires of the transducer and "knock" on it with a screwdriver handle, it should show some reading.Do I need a transducer for my fish finder?
Transducers are essential parts to every fish finder. Transducers come with different types of mounts. The easiest one to install is the transom mount. But, if you have a bigger boat or need something more serious, you can opt for another type, like the thru-hull mount.Where do you put a thru hull transducer?
For displacement hull powerboats, locate the transducer 1/3 of the way along the LWL and 6" to 12" off the centerline. For planing hull powerboats, mount it well aft near the centerline and well inboard of the first set of lifting strakes to ensure that it is in contact with the water at high speeds.Where is the best place to mount a transducer?
The location should be as close to the center of the boat as possible, but on the side of the downward swing the propeller. On the majority of boats, this will be on the starboard (right) side.Can a transducer shoot through plastic?
The answer is pretty simple – yes, you can! Since kayaks are made of plastic, the transducer is able to shoot the beam through the plastic into the water without much disturbance. SONAR is sound, and sound travels very nicely through solids – so plastic won't mess up the signal.Can you use a transom mount transducer in Hull?
Determining How to Mount the Transducer.Your Humminbird fish finder includes a transom mounted transducer. This transducer can be mounted on the transom of the boat or bonded to the inside of a fiberglass hull boat with a two part slow curing epoxy.
How do you glue a transducer to Hull?
To affix the transducer to the hull use only 2-Part, Slow Cure Epoxy. Never use any adhesive or glue that is not 2 part, slow cure epoxy such as silicon sealant, weather sealants, rubbery caulks, construction adhesives, 5 minute or quick cure epoxies, rubber cements or 3M's 4200 or 5200 adhesive sealants.How far should a transducer be in the water?
The transducer should be even with the bottom of the boat or slightly below the bottom. Leading edge (the edge closest to the transom of the boat). One click too high: the transducer is tilted out of the water and cannot maintain a sonar signal.What side of a boat do you mount a transducer?
The general rule of thumb is to mount the transducer to the starboard side, which is the down stroke of most single outboard boat propellers (right hand lower unit). This side produces the least amount of turbulence and is most efficient in delivering the best performance.Does it hurt transducer to run out of water?
It is not recommended to run a FishFinder and transducer on a boat that is not in the water as you will not get any readings from the transducer. Without the water, the transducer could burn out and have issues if left running for an extended period of time out of the water.How long does a transducer last?
Overall..a quality single transducer will have a very long working life if properly used and cared for. 5 -7 plus years should be considered trouble free for most quality single element units with almost daily use..How do you clean the barnacles on a transducer?
Use a plastic or wooden scraper so that you do not damage the transducer. When you have the barnacle shells off, re-spray the transducer with Algex and wait while it dissolves and softens the adhesive rings (barnacle rings). Scrape or brush these off. Re-apply until clean.Should I paint my transducer?
Transducer surfaces exposed to salt water must be coated with anti-fouling paint. Anti-fouling or bottom paint is a coating designed to discourage weeds, barnacles, and other aquatic organisms from attaching themselves to the underwater portion of your boat's hull. Use water-based anti-fouling paint only.How do you clean a transducer?
It is recommended to use a soft cloth and mild household detergent to clean a transducer. If the fouling is severe, remove the growth with a green, Scotch Brite pad. Be careful to avoid scratching the transducer's face. It is possible to wet sand a paddlewheel on the speed sensor with a fine grade wet/dry paper.How do you test a transducer out of water?
Put a bucket of water under the transducer. It should show about 4 times the distance between the transducer and the water surface. Sound travels x4 in air compared to water. Just a quick and cheap way to check the transducer.Do transducers go bad?
"Q: Do transducers go bad? A: On average, transducers fail more often than the sonar units they are connected to. The biggest "killer" of transducers is impact damage. This is usually evident by severe scratches or dents in the plastic housing." I don't think they are talking about minor scuffs.Can I turn on my fish finder out of water?
No, you can't use a fish finder out of water, because the transducer is unable to send or receive sonar signals in air. The only exception to this rule are transducers that are set up to work through an appropriate solid substance, which is in turn connected to water.What is the difference between sonar and DownScan?
Regular sonar (2D sonar) sometimes can't define the details as well as DownScan sonar. DownScan has a very narrow beam front to back and wide beam side to side so you will “see” finer details. The regular, or 2D sonar, tends to blend the returns together because of the wider shape of the beam in all directions.Is chirp better than sonar?
A traditional sonar transmits about one percent of the time, but CHIRP sonars transmit ascending pulses that are ten times as long in duration. They put dramatically more energy into the water column, 10 to 50 times more, even though CHIRP devices often transmit at lower peak power than traditional fishfinders.Will 2 transducers interfere with each other?
The interference is typically manageable when the two 'ducers are separated by a boat length (one at the bow and one on the transom), but two transducers within a couple of feet of each other on the transom will make for some considerable interference when both are operating.How do you test a pressure transducer?
How to Test a 4-20 mA Pressure Transducer?- Connect the positive terminal of the transducer to the positive terminal of the power supply.
- Connect the negative terminal of the transducer to the positive lead on the multimeter.
- Connect the negative lead of the multimeter to the negative terminal on the power supply.
