The screw isn't tight, but it's long enough to hold the drive down without needing a riser. Just screw it in until the drive is parallel with your motherboard and you are good to go!
Also asked, how do I know if my m2 SSD is compatible?
2 SSD, you are going to need to figure out several things:
- Whether your system supports M. 2 SATA or M. 2 PCIe.
- If it is M. 2 PCIe, whether it's PCIe x2 or PCIe x4.
- The type of key supported by the socket.
- The maximum length of SSD drive supported (from 42mm up to 110mm)
One may also ask, can I use m2 SSD without screw? No it doesn't.
Keeping this in view, what slot do I put my m 2 in?
2 slot at the bottom of the motherboard (M.
Do you need a heatsink for m 2?
2 NVMe Next Generation Form Factor SSDs. It is a much needed aesthetical and functional heatsink for many PC owners. It is not a secret that M. 2 NVMe SSDs can overheat very easily and be subdued to thermal throttling, thus losing performance.
Related Question Answers
How do I install a new SSD?
How to install a solid state drive- Step 1: Unscrew and remove the sides of your computer tower's case to expose the internal hardware and wiring.
- Step 2: Insert the SSD into the mounting bracket or a removable bay.
- Step 3: Connect the L-shaped end of a SATA cable to the SSD.

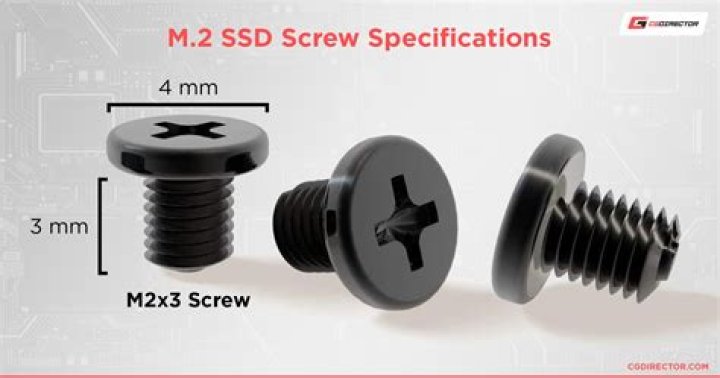

What screw is used for M 2?
The correct screw size is 2.0 x 3mm (CM2x3-3.3). If you are in the USA, then you can usually find the screws at Ace Hardware stores.Do NVME SSD come with screws?
This SSD does not include a screw. Screws for mounting SSD's of this type come with the motherboard or the device you are installing it in. 2 SSD's of this type for installation, and no matter the brand I chose (usually, but not always, Samsung) none of them included the mounting/holding screw.Can you install m2 without standoff?
The standoff height for the screw should be compatible with the connector height, making the M. 2 device level. You may need another standoff for your motherboard. If you don't use a spacer, take special care to only apply gentle pressure during screw installation.Why is my m 2 not showing up?
If option 1 you will need to make sure the drive has been added through the device manager (standard practice when you have two drives). If option 2 then I'd recommend updating the BIOS and see if that helps. 2 drive is showing up in both the BIOS and the device manager now, but not the file explorer.Can I use m2 SSD in NVMe slot?
As people already know they are physically compatible, you can plug an M. 2 SATA (aka M+B key) into an M. 2 NVMe (M key).Is m2 faster than SSD?
M. 2 SATA SSDs have a similar level of performance to mSATA cards, but M. 2 PCIe cards are notably faster. In addition, SATA SSDs have a maximum speed of 600 MB per second, while M.Are all m 2 slots the same?
While the M. 2 standard uses the same 22 millimeter-wide slot for all cards, it's not necessarily the exact same slot. Since M. 2 is designed to be used with so many different kinds of devices, it has some frustratingly similar-looking ports.Does my PC support SSD?
All SATA ports are compatible with each other, but in this case, the drive is SATA III (6.0 Gbps) whereas the motherboard only supports SATA II (3.0 Gbps). So the drive will work, but it likely won't be quite as fast as it would be with a newer board supporting SATA III.How do I know if my SSD is PCI or SATA?
Analyzing information- If the form factor is 2.5′, you DO NOT have an NVMe SSD.
- If the form factor is M. 2 and no PCI slot lists your SSD, you may have an NVMe drive or you may have a SATA drive.
- If the form factor is M. 2 and a PCI slot is in use, it is possible you have an NVMe drive.
Where is the m2 slot on my laptop?
If you can't find the slot in the user manual, you could unscrew the bottom case of your laptop and look for a slot near the WAN or WIFI cards. An extra slot could be there which may accept M2 ssd's (But it really depends on why it was added there.Is PCIe and NVMe the same?
NVMe (Non-Volatile Memory Express) is an interface protocol built especially for Solid State Drives (SSDs). NVMe works with PCI Express (PCIe) to transfer data to and from SSDs. NVMe enables rapid storage in computer SSDs and is an improvement over older Hard Disk Drive (HDD) related interfaces such as SATA and SAS.Do all motherboards support m 2 SSD?
Next step you will need to make sure that the motherboard supports it. New motherboard for the new gen of Intel and AMD CPUs all supports the M. 2 NVMe SSD. If you are unsure whether your motherboard has this slot, check their specification or use CPU-Z to find out.Are there different types of M 2 SSD?
M. 2 modules come in different sizes and can also be utilized for Wi-Fi, WWAN, Bluetooth, GPS, and NFC. M. 2 SSDs typically come in three dimensions, which may be deduced from the card name —2242, 2260, and 2280 — "22" represents the width in millimeters (mm), while the next two digits represent the length, also in mm.Can I use both M 2 slots?
Currently almost all motherboards only support 1 full speed NVME m. 2 slot, additional slots limit speed by 1/2.Does it matter what slot you put your graphics card in?
If the motherboard has four slots, any of the primary slots will work without any configuration adjustments. You may want to use another slot because the graphics card may be large and obstruct another component when installed in the first slot. The motherboard's manual will specify recommended slots as well.Does m 2 affect GPU?
Splendid. On a Z170 board, there is zero chance of an M. 2 drive reducing graphics performance. The CPU has 16 PCIe 3.0 lanes, specifically used in the PCIe x16 slots.Can m2 be used as boot drive?
Yes, as long as your motherboard supports booting from PCIe/NVMe, which it should if it has an NVMe-capable slot. I'm running a 1TB HP EX920 NVMe SSD as the boot drive of my bargain-basement laptop (upgraded immediately from the stock HDD). Now it's MUCH faster than it was, stock.How do I install an AM drive 2?
How to Install a SATA or PCIe M. 2 SSD in a Desktop PC- Step 1: Remove the mounting screw located across from the M. 2 slot.
- Step 2: Carefully insert the M.2 SSD. Gently push the M. 2 SSD into its slot, paying attention to the notch.
- Step 3: Secure the M.2 SSD using the mounting screw. Press down and hold the M.
What is the best m 2 SSD?
Compare SpecsThe Best M.2 Solid-State Drives for 2020| Our Picks | ADATA XPG Spectrix S40G See it $49.99 at Amazon | WD Black SN750 NVMe SSD See it $64.99 at Amazon |
|---|---|---|
| Interface (Computer Side) | M.2 Type-2280 | M.2 Type-2280 |
| Capacity (Tested) | 1 TB | 1 TB |
| NAND Type | TLC | TLC |
| Controller Maker | Realtek | SanDisk |
Does x570 support NVMe?
On X570 boards all M. 2 sockets can be Gen 4 NVME, even the ones running off the chipset.What is the difference between m2a and m2m?
When installing a evo plus m. 2 2280 in the Aorus pro wifi board I have two options, either the M2A slot which is closer to the cpu or the M2M slot which is basically behind the GPU. From what I understand both will work, M2A disables no SATA slots and the M2M actually disables SATA 4 and 5.What is m2_1?
M2_1 is an "Ultra" (32 Gb/s) type .. if it has a SATA SSD in it, one of the SATA ports becomes disabled (SATA3_5) .. if it has a PCIe/NVMe SSD in it there is no affect on other ports. (this one can also be used for "Intel Optane" memory modules)Can SSD be added to any laptop?
If so, you can breathe new life into your existing computer and increase your system performance without having to purchase a new laptop. Simply replace your existing 2.5-inch hard drive with a Seagate® BarraCuda SSD (solid state drive).Can I put m2 SSD in my laptop?
Installing an M. 2 SSD drive is really simple process. You just have to confirm with your laptop vendor's website what kind of SSD interface your laptop supports before you buy the actual SSD drive. 2 PCIe interface, then your drive won't fit in.How much faster is m 2 than SSD?
M2 drives are in real world use somewhere around 2–2.5 times faster than a SATA s.s.d.How do I install Windows on a new SSD in my laptop?
Once you have the bootable installation media created:- Shut down your system.
- Insert the Bootable Installation Media.
- Go into your BIOS and if SATA Mode is not set to AHCI, change it.
- Change the boot order so the Installation Media is top of the boot order.
- Save changes to BIOS and Reboot your system.
Which SSD is best for laptop?
Best SSDs at a glance- Intel Optane 905P – best U.2 SSD.
- Samsung 970 Pro – best NVMe SSD.
- Toshiba OCZ RD400 – best PCIe SSD.
- Adata XPG SX8200 SSD – best M.2 SSD.
- Samsung 860 Pro – best SATA 3 SSD.
- Intel 750 Series – best U.2 SSD.
- Samsung 860 Evo – best budget SSD.
- HP S700 Pro – best endurance SSD.
