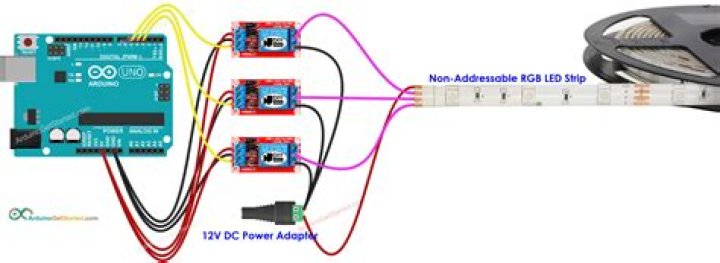

Connect a 9-12V power supply to the Arduino so that Vin supplies the high voltage to the LED strip. If you want, you can also just use a separate wire that connects to a power supply that provides about +12V. Make sure to connect the ground of that supply to the ground of the Arduino/MOSFETs!
In respect to this, how do I get Arduino 12v?
To get a 12V output from an Arduino Uno Board you need to use the Vin and GND pin as terminals. Vin would give the maximum voltage being provided to the board ( if board is supplied 9V then Vin would supply 9V and likewise).
Beside above, what resistor do I need for LED? Basics: Picking Resistors for LEDs
| Power Supply Voltage | LED Color | Resistor (calculated) |
|---|---|---|
| 5 V | Red, Yellow, or Yellow-Green | 128 Ω |
| 5 V | Red, Yellow, or Yellow-Green | 56 Ω |
| 9 V | Red, Yellow, or Yellow-Green | 72 Ω |
| 9 V | Blue, Green, White, or UV | 96 Ω |
Accordingly, how many LED can be connected to Arduino?
A standard Arduino board (like a Duemilanove) provides 17 "free" I/O pins, not counting TX, RX, Reset, or pin 13. So, you can hook up 17*16=272 LEDs. This can work well, especially if you're keeping one LED lit, or quickly scanning between just a few.
What is the L LED on Arduino?
The 'L' LED The Arduino has rows of connectors along both sides that are used to connect to electronic devices and plug-in 'shields' that allow the Arduino to do more. However, the Arduino also has a single LED that you can control from your sketches.
Related Question Answers
What is LED indicator on phone?
The LED is the little light, usually at the top of your phone, which lights up when you get a new notification (a call, text, news alert, etc.). What you may not know though, is that there are dedicated apps for managing the notification colors and customizing your phone's LED light.What resistor do I need for LED Arduino?
The Arduino is a convenient source of 5 Volts, that we will use to provide power to the LED and resistor. You do not need to do anything with your Arduino, except plug it into a USB cable. With the 270 Ω resistor in place, the LED should be quite bright.What language does Arduino use?
C/C++What is void setup in Arduino?
Void setup is technically a function that you create at the top of each program. Inside the curly brackets is the code that you want to run one time as soon as the program starts running. You set things like pinMode in this section. void loop( ){ }Can Arduino take 12v?
The board can operate on an external supply of 6 to 20 volts. If supplied with less than 7V, however, the 5V pin may supply less than five volts and the board may be unstable. If using more than 12V, the voltage regulator may overheat and damage the board. The recommended range is 7 to 12 volts.Can Arduino output 12v?
To get a 12V output from an Arduino Uno Board you need to use the Vin and GND pin as terminals. Vin would give the maximum voltage being provided to the board ( if board is supplied 9V then Vin would supply 9V and likewise).How do I run a 12v DC motor on Arduino?
Connection procedure of 5v relay and 12v DC motor with Arduino- Relay vcc pin with 5volt arduino.
- Arduino GND pin with relay GND pin.
- Arduino digital pin with relay IN pin or signal pin.
- Relay Normally Open Pin(NO) pin with +ve wire of 12 volt DC Motor.
- Relay Common pin(CO) pin with +12volt supply.
What is Arduino output voltage?
The board can operate on an external supply from 6 to 20 volts. If supplied with less than 7V, however, the 5V pin may supply less than five volts and the board may become unstable. If using more than 12V, the voltage regulator may overheat and damage the board. The recommended range is 7 to 12 volts.What is the output voltage of Arduino Uno?
Arduino Uno Technical Specifications| Microcontroller | ATmega328P – 8 bit AVR family microcontroller |
|---|---|
| Recommended Input Voltage | 7-12V |
| Input Voltage Limits | 6-20V |
| Analog Input Pins | 6 (A0 – A5) |
| Digital I/O Pins | 14 (Out of which 6 provide PWM output) |
How do I use a VIN pin Arduino?
Power Pins VIN (sometimes labelled "9V"). The input voltage to the Arduino board when it's using an external power source (as opposed to 5 volts from the USB connection or other regulated power source). You can supply voltage through this pin, or, if supplying voltage via the power jack, access it through this pin.What are the two voltages that an Arduino Uno puts out?
What is the output voltage of Arduino? - Quora. Arduino UNO takes input of 12V DC. There are two output pins for powering your external electronics on the left side of the board 5V & 3.3v with two grounds.What is Vin in Arduino?
VIN (sometimes labelled "9V"). The input voltage to the Arduino board when it's using an external power source (as opposed to 5 volts from the USB connection or other regulated power source). You can supply voltage through this pin, or, if supplying voltage via the power jack, access it through this pin.How do you connect LED strips without soldering?
How to connect LED Tape without soldering – LED Tape connectors- 1: This is the Tape to starter lead connector for single colour.
- 2: Cut the LED Tape along the cut line with a pair of scissors.
- 3: Now take your Tape to starter lead connector and your new piece of cut LED Tape.
- 4: Open the Connector.
How many RGB LEDs can an Arduino control?
8 RGB LEDsHow many LED strips can be connected together?
twoHow do I program an Arduino?
Program An Arduino In A Few Simple Steps- Arduino microcontrollers come in a variety of types.
- To begin, you'll need to install the Arduino Programmer, aka the integrated development environment (IDE).
- Connect your Arduino to the USB port of your computer.
- Set the board type and the serial port in the Arduino Programmer.
