Step by Step Setup
  1. Plug the Ethernet cable into the powered NVR or HCVR, then plug the other side into powered PoE switch.
  2. Now go into the NVR or HCVR's MAIN MENU and select CAMERA under SETTINGS.
  3. Under REMOTE on the left hand column, and the Remote Devices tab select Device Search.
  4. Try to add this camera.

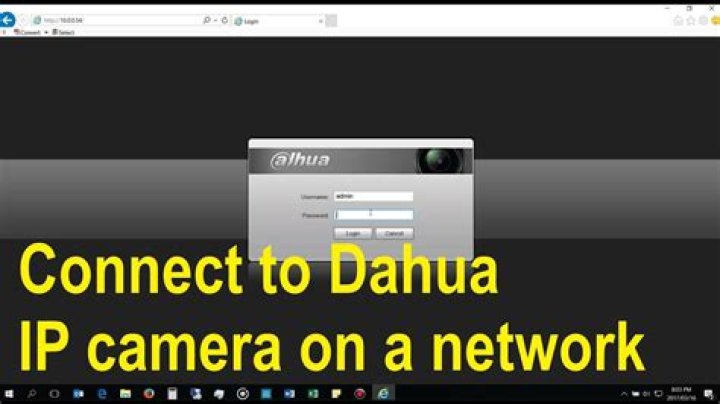

Hereof, how do I connect my Dahua IP camera?

More videos on YouTube

  1. From the home screen of the mobile application select "Camera".
  2. Select the menu button.
  3. Select Device Manager.
  4. Select add button to add device.
  5. Select Wired Device.
  6. Input Device Name -> input IP address of Dahua device -> input TCP port.
  7. Input Username and Password -> select live preview.

Also Know, how do I access Dahua camera through NVR? Setup by Step Instructions

  1. Locate the serial number of your NVR or DVR.
  2. Enter your account information, and login with an account.
  3. Click, "Add"
  4. Input the following and then click save:
  5. Go to Live, select NVR and select a camera and you may see it under live view.

Accordingly, can I connect IP camera directly to NVR?

Use Ethernet cables to connect the IP cameras to PoE NVR. As the NVR is enabled with the PoE technology, it can easily power the IP cameras. Take an HDMI cable or a VGA cable to connect NVR and TV or monitor.

What is Dahua NVR IP address?

The default IP address is 192.168. 1.108, but you may have to change this address if it conflicts with another device on the network.

Related Question Answers

How do I program my IP camera?

Network configuration
  1. Connect the network camera to your Local Area Network (LAN). A LAN is often the home network of a consumer.
  2. Find the IP address of the network camera. There are a few ways to do it.
  3. Fix the IP address (i.e. make the IP address static).
  4. Start using the Wi-Fi.
  5. Find the new IP again.

How do I change the IP address of my Dahua IP camera?

How To Change IP Address
  1. From the 'Modify IP' section of ConfigTool.
  2. Enter the username/password for the device (created in the previous guide)
  3. The device will appear in the list.
  4. The Modify IP Address window will appear.
  5. A green check mark next to the device in the list will confirm a successful IP change.

How do I setup my EZ IP camera?

The settings for Ez-ip cameras are built right into our free surveillance software - click "Add" then "IP camera with wizard" to automatically setup your Ez-ip cameras. Remember to also try connecting via ONVIF as Ez-ip cameras may support ONVIF connections as well. Start typing in the "Make" box to find your camera.

How do I change the IP address of my IP camera?

Configuring the IP address of the camera
  1. Open a web browser like Internet Explorer then enter the camera's IP address in the Address bar.
  2. Enter your camera's User name and Password then click OK.
  3. Click the Setup tab.
  4. Click Basic located at the left side of the page.
  5. Select the Configuration Type.

What is the default username and password for Dahua IP camera?

admin

How can I power my IP camera without a PoE switch?

Option One: Connecting PoE NVR for IP Cameras Without PoE Switch
  1. Use an Ethernet cable to connect the router and PoE NVR. Make sure the NVR can access the Internet.
  2. Connect IP cameras to the PoE NVR directly by Ethernet cables.
  3. Connect the NVR and a monitor or TV via a VGA or HDMI cable.

How do I add a wireless IP camera to NVR?

Power on the devices and login the web of IP camera. Enter Configuration—Advanced Settings---Wi-Fi, find out the SSID of NVR. Enter the password and click save. (2) Up to now, IP camera has successfully connected the wireless of NVR.

Do I need NVR for IP camera?

If you're familiar with a traditional analog CCTV set up, you know that your cameras need to be linked to a Digital Video Recorder (DVR) that records, processes, and stores all the data. IP cameras require a Network Video Recorder (NVR) that serves much the same purpose.

How can I use IP camera without NVR?

How to setup an IP Camera without DVR or NVR?
  1. Step 1: Download the free security camera software provided by the manufacturer.
  2. Step 2: Enter the camera UID and password to add the camera device (In order to improve cameras security, remember to change the default password)

Will any PoE camera work with any NVR?

Actually, if you get a complete PoE IP camera system set, which means both PoE security cameras and NVR are from one manufacturer, then you can simply connect all cameras with the NVR directly via the 4, 8 or even 16 PoE ports on it.

How many IP cameras can a NVR handle?

NVR can connect maximum 9 Network Cameras. 44 people found this useful.

Does NVR need to be connected to router?

The NVR supports an external hard disk from the SATA interface. This NVR ensures the best quality and highest performance in network video recording. If you are using a network router / DHCP server in your system, you need to connect your Standalone NVR to your network on Ethernet Port1.

How do I setup my NVR camera?

Hardware Setup
  1. Connect an Ethernet cable from your router to the back of your NVR.
  2. Connect an Ethernet cable from one of the PoE ports on your NVR to your camera.
  3. Connect a VGA or HDMI cable from the back panel of your NVR to a monitor or TV.
  4. Connect the included mouse to a USB port on the front or back of your NVR.

Can I plug PoE camera into router?

A: Yes, you can connect the PoE switch to your router using a Cat5E or Cat6 Ethernet cable up to 300ft (92m) in length, and you can connect the IP cameras up to 300ft (92m) from the PoE switch. This allows you to simplify the cabling for your installation.

What is the difference between NVR and PoE?

NVR represents for network video recorder which provides you with centralized video controls to easily view, manage, and store your surveillance footage in one convenient location. A PoE NVR is a security video recorder with built-in PoE switch designed to use with PoE-based IP cameras.

How do I add Onvif camera to Dahua NVR?

Step by Step Instructions
  1. From the Main Menu Select Camera.
  2. Select Manual add.
  3. You can select the brand of the third party camera or ONVIF.
  4. Enter the IP address of the 3rd party camera.
  5. Default ports are RTSP port 554 and HTTP Port 80.

How do I connect to NVR remotely?

There are 6 steps to setting up your NVR for remote viewing:
  1. Understand Your Network.
  2. Setup DDNS.
  3. Setup A Port Forward.
  4. Assign The DDNS Hostname To Your NVR.
  5. Set Two IP Addresses For Your NVR.
  6. Verify That Local Viewing and Remote Viewing Work.

What cameras are compatible with Dahua NVR?

NVR (IPC Support List)
  • Arecont vision.
  • Axis.
  • Bosch.
  • Brickcom.
  • Canon.
  • CNB.
  • CP Plus.
  • Dynacolor.

How do I access Dahua IP camera over the Internet?

Connect to your Dahua DVR. Now select the network from the menu selection tile bar. Under the network tab select DHCP if your DVR is connected to your DSL router. Other wise enter fixed IP that is within the network range which has access to the internet.

What is P2P in NVR?

Port forwarding is the way your Digital Video Record (DVR) or Network Video Record (NVR) establishes a remote connection with the application of your surveillance device. P2P or cloud connection is a new procedure for surveillance devices to make a connection with the camera application on smart phones.

What is P2P Dahua?

The P2P (Peer-to-Peer) feature allows for the user to access a recorder or camera without having to forward ports by utilizing an intermediary server to organize connectivity between devices.

How do I find my NVR IP?

This is the easiest way to find the security camera IP address. The easiest way to find the security camera IP address is to check the Network page on the CCTV camera software (mobile app or PC client). The network page will display all the IP address information of your camera.

How do I find my NVR IP address?

Find the IP address and Web port # of your NVR (IP address can be found in System Setup > Network Setup).

How do I find the IP address of my Dahua IP camera?

Step by Step Instructions
  1. Download and install ConfigTool. ConfigTool Download.
  2. Run the ConfigTool.
  3. The ConfigTool should display your IP Camera's IP address. Click the, " " icon to open Internet Explorer and access your IP Camera.
  4. Login with the default credentials: User Name: admin Passsword: admin.

What IP address is?

An IP address is a unique address that identifies a device on the internet or a local network. IP stands for "Internet Protocol," which is the set of rules governing the format of data sent via the internet or local network.

How do I connect my Dahua NVR to my router?

Step by Step Instructions
  1. Connect the NVR and IP Camera directly to your router or modem with a CAT5 cable.
  2. Open the ConfigTool and locate your NVR and IP Camera.
  3. Login to both using Internet Explorer.
  4. On the NVR, go to Settings->Network->WiFi Device Manage.
  5. On the IP Camera, go to Setup->Network->WiFi.

What is the default IP address for Hikvision NVR?

254.1 is default IP address).

What is the default IP address of a Dahua NVR DVR?

192.168.1.108

How do I add Hikvision IP camera to Dahua NVR?

Step by Step Instructions
  1. Start by creating a list of your devices.
  2. Open Internet Explorer, and input your NVR's IP address into the URL bar at the top of the browser window.
  3. Enter your credentials, and click, "Login"
  4. Click, "Setting"
  5. Then click, "Camera" and then, "Remote"
  6. Click, "Manual Add"
