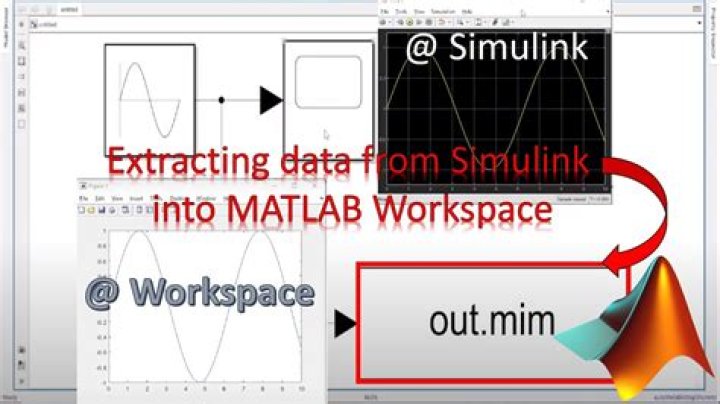

Set Scope Parameters for Logging to Workspace
  1. In the Simulink window, double-click the Scope block.
  2. In the Scope window, on the toolbar, click the Parameters button .
  3. In the Scope Parameters dialog box, click the Logging tab.
  4. Do one of the following:
  5. Select the Log data to workspace check box.

Likewise, how do I copy a scope from Simulink to Word?

Accepted Answer

The ability to copy the content of a Simulink scope block to the clipboard is not available in Simulink - NO VERSION. Alternatively, you can select the scope figure window, then hit ALT+PrintScrn to copy it to a clipboard, and paste it into an application.

Also Know, how do I export data from Simulink to excel? EXPORTING DATA TO EXCEL

Now select Array from the pull down menu. Leave the default values for the remaining fields. The To Workspace block will allow you to transfer data from the Simulink model to the MATLAB workspace, where you can further manipulate the data for export to Excel.

Besides, how do I import data into Simulink?

To import data from a file, do one of the following:

  1. On the Home tab, in the Variable section, select Import Data .
  2. Double-click a file name in the Current Folder browser.
  3. Call uiimport .

How do I extract data from a workspace in Matlab?

To export a table in the workspace to a Microsoft® Excel® spreadsheet file, use the writetable function. You can export data from the workspace to any worksheet in the file, and to any location within that worksheet. By default, writetable writes your table data to the first worksheet in the file, starting at cell A1 .

Related Question Answers

How do you save data on Simulink scope?

Set Scope Parameters for Logging to File
  1. In the Simulink Editor, double-click the Scope block.
  2. On the toolbar, click the Parameters button .
  3. Click the Logging tab.
  4. Do one of the following:
  5. Select the Log data to workspace check box.
  6. From the Save format list, select one of Structure with time , Structure , Array , and Dataset .
  7. Click OK.

What format do you use when you save your Simulink output to be used in the Matlab workspace?

Timeseries (default) | Structure With Time | Structure | Array. Specify the format for saving simulation output to the workspace. The default Timeseries format saves nonbus signals as a MATLAB timeseries object and bus signals as a structure of MATLAB timeseries objects.

How do I get output in Simulink?

When you invoke a sim command inside a function, the output logged by the function is in the function workspace. To be able to access that output in the base workspace, add a command such as this after the sim command: assignin('base','yout',yout); Do not use a variable name that is the same as a Simulink.

What is the workspace in Matlab?

The workspace contains variables that you create or import into MATLAB from data files or other programs. You can view and edit the contents of the workspace in the Workspace browser or in the Command Window. For more information, see Create and Edit Variables. Workspace variables do not persist after you exit MATLAB.

How do you plot a workspace in Matlab?

Plot Signal Data Logged to Workspace
  1. To show the structure of the variable ScopeData , in the MATLAB Command Window, type: ScopeData.
  2. To plot the first 1000 points, type: plot(ScopeData.time(1:1000),ScopeData.signals.values(1:1000))
  3. The variable ScopeData is not automatically saved to your hard disk. To save the variable ScopeData , type:

How do you plot time series data in Matlab?

Plot Two Time Series Objects on the Same Axes
  1. load count.dat; count1 = timeseries(count(:,1),1:24); count1.Name = 'Oak St.
  2. [~,index] = max(count1.Data); max_event = tsdata.event('peak',count1.Time(index)); max_event.Units = 'hours';
  3. count1 = addevent(count1,max_event);
  4. plot(count1,'.-b') grid on.

How do you plot in Matlab?

MATLAB - Plotting
  1. Define x, by specifying the range of values for the variable x, for which the function is to be plotted.
  2. Define the function, y = f(x)
  3. Call the plot command, as plot(x, y)

How do I change the background color on my Simulink scope?

Normally, Simulink simulation result on scope background color is black and the result line is yellow.

Changing Simulink Scope Background color

  1. Right click on any place inside Simulink page and select “Signal & Scope Manager…”
  2. Select Viewer >> Simulink >> Scope >> Attach to model ; then Scope will go to the right side.

How do I copy a graph from Matlab to Word?

The Easy Way

The easiest way to embed a MATLAB figure is to simply copy the figure (in the MATLAB figure window go to Edit->Copy Figure) and then paste into Word directly.

How do you copy in Matlab?

ctrl + C to copy. ctrl + X to cut. ctrl + V to paste.

How do I import data into Matlab?

Open the Import Tool
  1. MATLAB® Toolstrip: On the Home tab, in the Variable section, click Import Data.
  2. MATLAB command prompt: Enter uiimport( filename ) , where filename is a character vector specifying the name of a text or spreadsheet file.

How does Simulink work in Matlab?

Use the Simulink Editor to build your models.
  1. Start MATLAB®. From the MATLAB toolstrip, click the Simulink button .
  2. Click the Blank Model template. The Simulink Editor opens.
  3. From the Simulation tab, select Save > Save as. In the File name text box, enter a name for your model. For example, simple_model . Click Save.

How do you input data into Matlab?

x = input( prompt ) displays the text in prompt and waits for the user to input a value and press the Return key. The user can enter expressions, like pi/4 or rand(3) , and can use variables in the workspace.

How do I import Excel data into Matlab?

Import Spreadsheet Data Using the Import Tool

xls as a table in MATLAB. Open the file using the Import Tool and select options such as the range of data and the output type. Then, click the Import Selection button to import the data into the MATLAB workspace.

How do I import data from Matlab to workspace?

To load saved variables from a MAT-file into your workspace, double-click the MAT-file in the Current Folder browser. To load a subset of variables from a MAT-file on the Home tab, in the Variable section, click Import Data. Select the MAT-file you want to load and click Open.

How do I import data from workspace to Simulink in Matlab?

Load Data Using the From Workspace Block
  1. Create a workspace variable with the signal data that you want to load.
  2. Add a From Workspace block to a model. Connect the From Workspace block to the block that the From Workspace block provides input to.
  3. Double-click the From Workspace block and configure: The workspace data to load.

How do I read a CSV file in Matlab?

M = csvread( filename ) reads a comma-separated value (CSV) formatted file into array M . The file must contain only numeric values. M = csvread( filename , R1 , C1 ) reads data from the file starting at row offset R1 and column offset C1 . For example, the offsets R1=0 , C1=0 specify the first value in the file.

How do I clear the command window in Matlab?

clc clears all the text from the Command Window, resulting in a clear screen. After running clc , you cannot use the scroll bar in the Command Window to see previously displayed text. You can, however, use the up-arrow key ↑ in the Command Window to recall statements from the command history.

How do I read a file in Matlab?

Use fopen to open the file, specify the character encoding, and obtain the fileID value. When you finish reading, close the file by calling fclose(fileID) . A = fscanf( fileID , formatSpec , sizeA ) reads file data into an array, A , with dimensions, sizeA , and positions the file pointer after the last value read.

How do I export data from Simulink?

Export Data to MATLAB
  1. To open the model, at the MATLAB prompt, enter doc_hamming .
  2. To add a To Workspace (Simulink) block, begin typing the name 'to workspace' in the model window and select the To Workspace block from the DSP System Toolbox/Sinks library. Connect it as shown.

How do I export data from signal builder to excel?

This file is to extract the signal builder's dataset to excel file.
  1. Open your simulink model which is include the signal builder block.
  2. Just run 'sig2xls'
  3. Signal builder's data will be saved in the directory which is in the model's path.

How do I export data from Matlab to excel?

You can use the "MLGetFigure" function to import current MATLAB figure into Microsoft Excel worksheet. You can also do this by launching Excel from MATLAB by using the ActiveX Automation client feature of MATLAB. You can print a figure to the clipboard and then insert the clipboard contents into Excel.

How do I plot a graph in Simulink?

Output trajectories from Simulink can be plotted using one of three methods:
  1. Feed a signal into either a Scope or an XY Graph block.
  2. Write output to return variables and use MATLAB plotting commands.
  3. Write output to the workspace using To Workspace blocks and plot the results using MATLAB plotting commands.

How do you export a graph in Matlab?

Use the File > Export Setup dialog. Use Edit > Copy Figure to copy the figure's content to the system clipboard. For details, see Customize Figure Before Saving and Copy Figure to Clipboard from Edit Menu.
