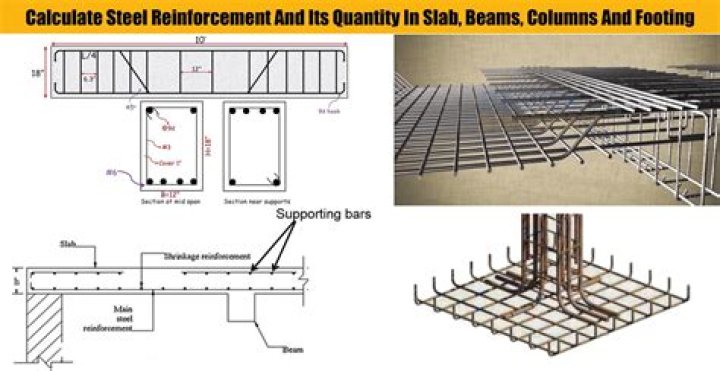

Example of Beam Reinforcement Calculation:
  1. Length of B1 = clear distance between walls + 2 x width of walls – 2 x bar cover + 2 x bend length.
  2. Length of bar B2: A + B + C = 4000 + 2 x 230 – 2 x 40 + (1.414xH – H)
  3. B2 = 4000 + 2 x 230 – 2 x 40 + (1.414×334 – 334) = 4518.3 = 4520mm.

Likewise, people ask, how do you calculate beams?

To estimate the total length of Floor Panels and beam Forms:

  1. STEP 1: Determine the square footage of floor, (A)
  2. STEP 2: To estimate total length, in feet, of Floor Panel, (B):
  3. (B) = 0.50 x (A)
  4. STEP 3: To estimate total length, in feet, of beam Forms, (C):
  5. (C) = 0.50 x (A)

Beside above, how are reinforcement bars calculated? Assume your longitude is 15 feet and there will be 14 inches between latitude rebar.

  1. Convert your longitude measurement into inches: 15 x 12 = 180.
  2. Divide your result by the spacing measurement: 180 / 14 = 12.87 (round up to 13)
  3. Add one rebar to your result: 13 + 1 = 14.

Hereof, how do you calculate bars on a beam?

For Beam :

  1. calculate total load and find its bending moment.
  2. multiply it with a FOS.
  3. find depth and width of Beam (generally D =2B)
  4. find percentage of steel.
  5. find total area of steel.
  6. divide total area of steel by area of one bar so you will get total number of bars.

What is development length?

A development length can be defined as the amount of reinforcement(bar) length needed to be embedded or projected into the column to establish the desired bond strength between the concrete and steel (or any other two types of material). Fig 1: Development length in Footing.

Related Question Answers

How do you find the volume of a beam?

If the beam is steel or some other material and you know the weight per unit length (which is commonly known), then divide the unit weight by the density of the material (to get unit volume) and multiply by the length.

How do you manually create a beam?

Manual Beam Design
  1. 1.DATA. L=3000mm.
  2. 2.EFFECTIVE SPAN OF BEAM: Effective Span =c/c of support.
  3. 3.SIZE OF BEAM: Effective depth=Span/12.
  4. Factored Load =23.694KN/m, Factored BM=Wl2/8 = 30.89KN/m.
  5. TO GET AST: Ast(Required) = 388.33mm2
  6. 7.CHECK FOR SHEAR:
  7. 8.SHEAR REINFORCEMENT:
  8. 9.CHECK FOR DEFLECTION:

How do you measure a formwork beam?

Measure overall beam length of each type first. Multiply length by cross-sectional size to get concrete volume. Multiply length by girth of two sides and soffit to get formwork area. Deduct slab soffit formwork intersected by beam.

How do you calculate area of reinforcement?

If you have measured the weight of the bar in kilograms, then divide the weight of the bar by 7850 and this will give you volume of the bar in cubic metres. Divide this volume by the length of the bar measured in metres and the result will be the area of the bar in Square Meters.

What is the difference between bar and beam?

A beam is Structural member; bar is a building material. Beam can be made of RCC or steel or any other composite material; whereas bar is usually made of Steel ( In Structural Engineering). Neutral Axis (NA) – Defines the bending neutral planes, for a beam element this axis is offset from the shear center axis.

How do you find the development length of a beam?

Ld= 0.87 X grade of steel X Dia of bar / 4 X bond stress of concrete . Value of Bond stress can be increased by 60% when high yield strength deformed( HYSD) bars are used. It can be further increased by 25% when we calculate development length for bars in compression.

What is Barbending schedule?

Bar Bending Schedule, commonly referred to as “BBS” is a comprehensive list that describes the location, mark, type, size, length and number, and bending details of each bar or fabric in a Reinforcement Drawing of a Structure.

What is unit of steel?

Actually the unit weight of steel is 7850 kg/m^3 Unit Weight = (Weight of substance)/(volume of substance) There is a thumb rule to calculate weight of reinforcement per unit length as D^2/162 in kg/m. Standard length of reinforcement bar in market is 12 meter.

How do you calculate bars?

Unit Weight of Steel Bar When Length is in Meter
  1. 10mmø bar = 10² x 1/162 = 0.617 kg/m.
  2. 12mmø bar = 12² x 1/162 = 0.888 kg/m.
  3. 16mmø bar = 16² x 1/162 = 1.580 kg/m.
  4. 20mmø bar = 20² x 1/162 = 2.469 kg/m.
  5. 25mmø bar = 25² x 1/162 = 3.858 kg/m.

How do you measure stirrup length?

Cutting length for Square Stirrups:-
  1. Considered the column size as 450mm x 450mm.
  2. Adopting Dia of Bar used for stirrups is 8mm.
  3. Deducting the concrete cover 25mm from all sides (in square all sides are equal) x = 450- 20-20 = 410mm.
  4. Total Length of the hook: There are two hooks which mean 9d+9d = 18d.
  5. Total length of Bends:

How do you calculate the extra top bar in a beam?

Length of extra top bar on support1 is, = extended bar length from support1 + width of support1 + bend length – clear cover. Length of extra bottom bar, = distance between support1 and support2 – 2 x distance between support and extra bottom bar.

How do you calculate the weight of steel?

  1. Weight of STEEL BAR.
  2. Weight = Density x Volume {Volume = Area x Length }
  3. Density of Steel = 7850 Kg/m3.
  4. Area of Steel = pi x d^2 / 4.
  5. = 0.785 d^2.
  6. Taking, Bar Length =1000 mm = 1 m.
  7. Therefore, we can calculate.
  8. Weight of Steel Bar = {7850/(1000x1000x1000)} x (3.14 x d^2 /4)x1000.

How do you calculate columns in a bar?

  1. Step 1: Vertical Bar calculation. Length of 1 bar = H + Ld #Where. Ld = development length. h = Height of column.
  2. Step 2: Cutting the length of stirrups. The cross-sectional area of the column is 300 mm x 400 mm. A is the vertical cross-section area of the stirrup. B is a horizontal cross-section area of the stirrup.
