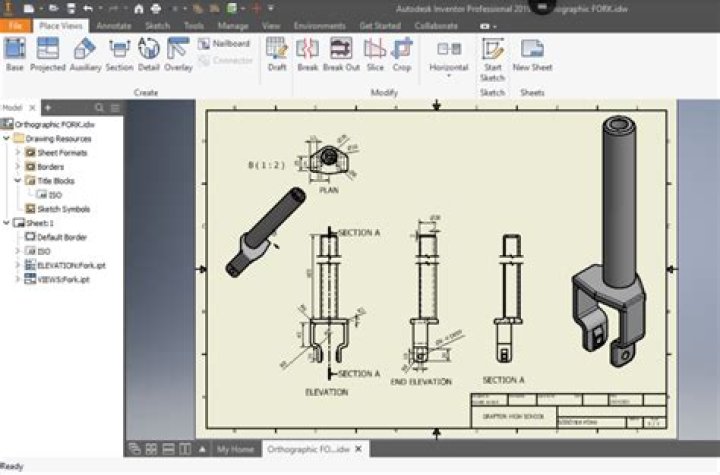

To Create Drawing Views from Inventor Models
- At the bottom right of the drawing area, click the tab corresponding to the layout you intend to create the base view on.
- Click Home tab View panel Base drop-down From Inventor.
- In the Select File dialog box, select the model to generate the base view from and click Open.
Also know, how do I make a drawing file?
To Create a New Drawing File From Selected Objects
- Open an existing drawing or create a new drawing.
- Click Insert tab Block Definition panel Write Block.
- In the Write Block dialog box, select Objects.
- Click Select Objects.
- Use your pointing device to select the objects to be included in the new drawing.
One may also ask, how do I make an assembly drawing? Create an Assembly Drawing
- Click New.
- In the Create New File dialog box, click the Templates folder and select Standard.
- In the drawing view, click Place Views tab Create panel Base .
- On the Drawing View dialog box, ensure that Enclosure_assembly.
- Click to place the view as shown, then right-click and select Done.
Also Know, how do you draw in Autodesk Inventor?
To create a sketch in a part or assembly file, do one of the following:
- On the 3D Model tab, click Start 2D Sketch or Start 3D Sketch .
- Right-click in the browser and choose New Sketch or New 3D Sketch.
- Click a planar face or work plane of a part and, in the mini toolbar, choose Create Sketch .
How do I open an Inventor drawing in AutoCAD?
1. With your Inventor drawing file open, select the file tab, export and select export to DWG. 2. When the save as dialog box opens, change the save as type to AutoCAD DWG files.
Related Question Answers
How do you make a 3d model in Autodesk Inventor?
To Create 3D Inventor Models of 2D DWG Underlay Layouts- Insert an AutoCAD DWG file as an associative DWG:
- In a 2D sketch, click a face or work plane to set the sketch plane.
- Click Sketch tab Create panel Project DWG Geometry.
- Select the geometry to project.
- When done, select Cancel or right-click and select OK.
What is an IDW file?
IDW is an image file format used by Autodesk Inventor. Autodesk Inventor creates 2-D and 3-D vector-based drawings, used to design and simulate mechanical products. IDW files contain the finished designs, and may contain . IPT, . IPN files.What are CAD tools?
The software applications that helps to make designs in the computer are called CAD tools. The design may refers to a Building, Car, Bolt or Nut, a human skull, etc.. Some Popular CAD tools are. CATIA, Siemens NX - Popular among Automotive industry. AutoCAD - Popular among Automitive, CIvil industry.How do you create a section view in Inventor?
Create a Section View Defined by Sketch Geometry or an Aligned View- Select an existing view to use as the parent view.
- On the ribbon, click Place Views tab Create panel Section .
- Select the view cutting line you defined in the sketch.
- (Optional) Specify the appearance of the view in the Section View dialog box.
How do I save an Inventor drawing as a PDF?
Make View A active, verify the model orientation and note visibility is correct in the view, and then export the model.- In an assembly or part file, click File Export 3D PDF or click 3D PDF in the Annotate Export panel.
- In the Publish 3D PDF dialog box, select model properties to include in the 3D PDF.
How do I convert AutoCAD drawing to inventor?
With your Inventor drawing file open, select the file tab, export and select export to DWG. 2. When the save as dialog box opens, change the save as type to AutoCAD DWG files.How do you dimension in Inventor?
Add baseline dimensions- On the ribbon, click Annotate tab Dimension panel Baseline .
- Select the geometry to dimension in the graphics window :
- Right-click and select Continue.
- Autodesk Inventor assigns a point on the first of the selected edges as the origin.
- Click to place the dimensions.
- Right-click and select Create.
