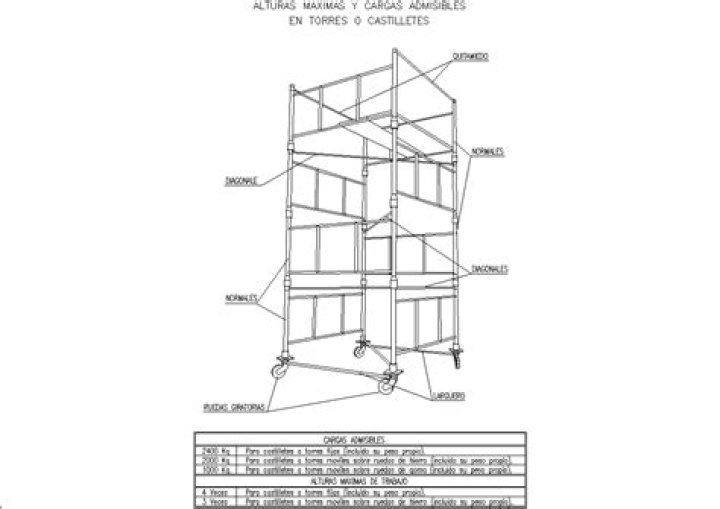

To start drawing scaffolding, just click on a component in the palette and click somewhere within the drawing viewport. Note that you don't have to hold the mouse button down while dragging; you can just click once to pick up the component and click again to drop it.

Subsequently, one may also ask, how do I draw a diagram in AutoCAD?

Use one of the following methods to start a drawing.

  1. On the Start tab, click Start New Drawing. This opens a new drawing based on the default drawing template file.
  2. Right-click a file tab, and choose New to display the Select Template dialog box.
  3. Click Application menu New Drawing. Find.

One may also ask, what are the different types of scaffolding? We are breaking down the eight main types of scaffolding and their uses:

  • Access Scaffolding. Access scaffolding does what it says on the tin.
  • Suspended Scaffolding.
  • Trestle Scaffolding.
  • Cantilever Scaffolding.
  • Putlog/Single Scaffold.
  • Double Scaffolding.
  • Steel Scaffolding.
  • Patented Scaffolding.

Likewise, how do you draw an area in AutoCAD?

To Set the Plot Area

  1. Click the layout tab for which you want to set the plot area and adjust the display.
  2. Click Output tab Plot panel Page Setup Manager.
  3. In the Page Setup Manager, Page Setups area, select the page setup that you want to modify.
  4. Click Modify.

What do you mean by scaffolding?

A scaffold is any temporary, elevated work platform and its supporting structure used for holding people, materials, or both. Scaffolding is used in new construction, renovation, maintenance and repairs. Suspended scaffolds, which are one or more platforms suspended by ropes or other non-rigid, overhead support.Jan 9, 2020

Related Question Answers

What is scaffolding in construction PDF?

Scaffolding is basically a temporary structure used to support labours and material in the construction or repair of buildings and other large structures, when performing tasks at heights above the ground.

How do I draw one line in AutoCAD?

To Draw Lines
  1. Click Home tab > Draw panel > Line. Find.
  2. Specify the start point and end point of the line segment by clicking in the drawing area.
  3. Continue specifying additional line segments.
  4. Press Enter or Esc when done or enter c to close a series of line segments.

How do you draw a simple house plan?

There are a few basic steps to creating a floor plan:
  1. Choose an area. Determine the area to be drawn.
  2. Take measurements. If the building exists, measure the walls, doors, and pertinent furniture so that the floor plan will be accurate.
  3. Draw walls.
  4. Add architectural features.
  5. Add furniture.

Where are drawing tasks in AutoCAD?

Below the title bar is the Ribbon, where you'll find most of the AutoCAD commands and tools needed to complete any drawing task.

What is Draw Toolbar in AutoCAD?

Basic drawing commands, as well as frequently used advanced drawing commands, are located on the Drawing toolbar. One Drawing toolbar in AutoCAD is built into the tool ribbon, and the second is a floating panel that can be fixed.

How do you start the draw command?

In common with most AutoCAD commands, the Draw commands can be started in a number of ways. Command names or short-cuts can be entered at the keyboard, commands can be started from the Draw pull-down menu, shown on the right or from the Draw toolbar.

What is drawing space in AutoCAD?

There are two distinct working environments, called "model space" and "paper space," in which you can work with objects in a drawing. By default, you start working in a limitless 3D drawing area called model space. You then draw at 1:1 scale. To prepare your drawing for printing, switch to paper space.Mar 29, 2020

How do you plot a selected area in AutoCAD?

To Set the Plot Area
  1. Click the layout tab for which you want to set the plot area and adjust the display.
  2. Click Output tab Plot panel Page Setup Manager.
  3. In the Page Setup Manager, Page Setups area, select the page setup that you want to modify.
  4. Click Modify.

How do you set drawing limits in AutoCAD?

Steps to set the limits
  1. Open the AutoCAD software.
  2. Type LIMITS on the command line or command prompt.
  3. Press Enter or spacebar.
  4. Write the coordinates of the lower-left corner. For example, (0,0).
  5. Press Enter.
  6. Write the coordinates of the upper-right corner. For example, (200, 200).
  7. Press Enter.
  8. Write Z.

How do you set up paper space in AutoCAD?

How to Set Up a Layout in AutoCAD
  1. Click the desired layout tab.
  2. Click the Layout tab of the Ribbon menu.
  3. In the Layout panel, click Page Setup.
  4. Click New.
  5. Type a suitable name and click OK.
  6. Specify the printer you want to use, its paper size, and so on, but leave the Plot Area drop-down list set at Layout.
  7. Click OK.

How do I draw a circle in AutoCAD?

This is the default method for drawing a circle.
  1. Do one of the following: Click Home tab Draw panel Circle drop-down Center, Radius. Find. Click Home tab Draw panel Circle drop-down Center, Diameter. Find.
  2. Specify the center point.
  3. Specify the radius or diameter.

How do you write fractions in AutoCAD?

How to format fractions
  1. Type the numerator.
  2. Type the character that defines the fraction format you want: Type a slash (/) to create a fraction separated by a horizontal line.
  3. Type the denominator.
  4. Type a space (or other nonnumeric character). A lightning symbol appears.

How do you draw a Dimensiond line in AutoCAD?

Create a Linear Dimension with Angled Extension Lines
  1. Click Annotate tab Dimensions panel Linear. Find.
  2. Specify the first and second extension line origin.
  3. At the prompt, enter r (Rotated).
  4. Enter an angle for the dimension line.
  5. Click to place the dimension line.

How do I use architectural units in AutoCAD?

To change units in a drawing:
  1. Type in UNITS on the command line.
  2. Select Architectural under the first drop-down menu and then click OK.

How do you draw in metric in AutoCAD?

  1. Open AutoCAD Architecture or AutoCAD MEP and start a new blank drawing.
  2. Enter UNITS command to bring up the "Drawing Setup" dialog box.
  3. Once there, change "Units" to "Millimeters" or "Meters".
  4. Check the box next to "Save as Default" in the bottom left of the dialog box.

How do you draw a line with distance in AutoCAD?

To Create a Line Using a Direction and a Distance
  1. Click Drafting tab > Draw panel > Line.
  2. Specify the first point and then, move the cursor the same angle as the line that you want to create.
  3. Enter a distance at the prompt.

How do I set measurements in AutoCAD?

To change the units in AutoCAD:
  1. Type Units and Hit ENTER on your keyboard, the following window should pop up.
  2. Click on the drop down menu under Insertion scale, select the appropriate unit and click on OK. Hope that did the trick.
