Combining these two influences upon the vertical displacement yields the following equation. where viy is the initial vertical velocity in m/s, t is the time in seconds, and g = -9.8 m/s/s (an approximate value of the acceleration of gravity).
| Time | Horizontal Displacement | Vertical Displacement |
|---|---|---|
| 5 s | 100 m | -122.5 m |
Also question is, how do you solve for horizontal displacement?
Use the equation y = 0.5 • g • t2 and substitute -9.8 m/s/s for g. The vertical displacement must then be subtracted from the initial height of 78.
| Time | Horizontal Displacement | Vertical Displacement |
|---|---|---|
| 2 s | 67.8 m | 19.6 m |
| 3 s | 101.7 m | 14.7 m |
| 4 s | 135.6 m | 0 m |
Likewise, what is the formula of displacement? Introduction to the Displacement and Acceleration Equation This equation relates displacement, original velocity, constant acceleration, and time: It reads: Displacement equals the original velocity multiplied by time plus one half the acceleration multiplied by the square of time.
Considering this, what is horizontal displacement?
Answered Apr 7, 2017. Vertical displacement- Total distance moved from the origin in the y direction/North/upwards. Horizontal displacement- Total distance moved from the origin in the x direction/East/sideways.
How do you find the horizontal range in projectile motion?
The range (R) of the projectile is the horizontal distance it travels during the motion. Using this equation vertically, we have that a = -g (the acceleration due to gravity) and the initial velocity in the vertical direction is usina (by resolving). Hence: y = utsina - ½ gt2 (1)
Related Question Answers
How far will a ball travel horizontally?
For example: If a ball is thrown horizontally at a velocity of 20 m/s, then after 1 second, it will traveled 20 meters, after 2 seconds, 40 meters, after 3 seconds, it has traveled 60 meters, etc… The distance that the ball travels horizontally depends on the time it is in the air.How do you find horizontal speed?
Divide Displacement by Time Divide the horizontal displacement by time to find the horizontal velocity. In the example, Vx = 4 meters per second.What is a projectile give two examples?
A projectile is any object that is cast, fired, flung, heaved, hurled,pitched, tossed, or thrown. you throw the ball straight upward, or you kick a ball and give it a speed at an angle to the horizontal or you just drop things and make them free fall; all these are examples of projectile motion.When a ball is thrown horizontally and another is dropped which will be faster?
The horizontal one would have the faster velocity as it would have the horizontal and he vertical one at the same time. As both of their vertical components of initial velocity equal zero, they are equally fast vertically.Does horizontal velocity change?
The horizontal velocity of a projectile is constant (a never changing in value), There is a vertical acceleration caused by gravity; its value is 9.8 m/s/s, down, The vertical velocity of a projectile changes by 9.8 m/s each second, The horizontal motion of a projectile is independent of its vertical motion.What is the relationship between horizontal velocity and horizontal displacement?
The horizontal velocity of a projectile is constant (a never changing in value), There is a vertical acceleration caused by gravity; its value is 9.8 m/s/s, down, The vertical velocity of a projectile changes by 9.8 m/s each second, The horizontal motion of a projectile is independent of its vertical motion.Does height affect horizontal distance?
Increasing the launch height increases the downward distance, giving the horizontal component of the velocity greater time to act upon the projectile and hence increasing the range. "What is vertical displacement?
In tectonics, vertical displacement refers to the shifting of land in a vertical direction, resulting in uplift and subsidence.What is horizontal distance?
More definitions of Horizontal distance Horizontal distance means the distance between two points measured at a zero percent slope. Horizontal distance means the distance on a line parallel to the horizon (not parallel to the slope).What is horizontal motion?
The horizontal motion of the projectile is the result of the tendency of any object in motion to remain in motion at constant velocity. Due to the absence of horizontal forces, a projectile remains in motion with a constant horizontal velocity.Why is horizontal velocity constant?
The horizontal velocity is constant. According to Newton's 1st Law and object in motion stays in motion until a force acts on it. There are no forces acting on a projectile in the horizontal direction (neglecting air resistance), therefore the velocity is constant.What is an example of displacement?

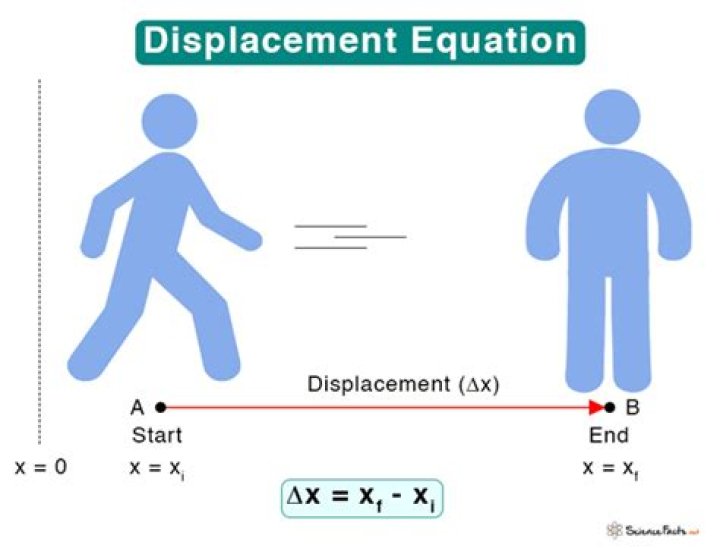

If an object moves relative to a reference frame—for example, if a professor moves to the right relative to a whiteboard, or a passenger moves toward the rear of an airplane—then the object's position changes. This change in position is known as displacement.What is the formula of displacement and distance?
Displacement Formula. Displacement is the change in an object's position from the origin. Answer: Jane's initial position in Seattle is Xi= 0. Her final position Xf is the distance traveled N minus the distance South.What is the difference between distance and displacement?
Distance is a scalar quantity that refers to "how much ground an object has covered" during its motion. Displacement is a vector quantity that refers to "how far out of place an object is"; it is the object's overall change in position.What is the displacement symbol?
Δ x Delta x Δx is the symbol used to represent displacement. What does the triangle symbol mean? The triangle symbol Δ Delta Δdelta is the Greek capital letter delta. It is used in physics to represent the change in a variable.What is called displacement?
Displacement (symbolized d or s ), also called length or distance, is a one-dimensional quantity representing the separation between two defined points. The standard unit of displacement in the International System of Units ( SI ) is the meter (m). Displacement is usually measured or defined along a straight line.What is the formula of distance?
To solve for distance use the formula for distance d = st, or distance equals speed times time.What is the dimension of displacement?
Let us find the dimensions of the terms in (1). A displacement u(t) has dimension [L]. The derivative u′(t) is change of displacement, which has dimension [L], divided by a time interval, which has dimension [T], implying that the dimension of u′ is [LT−1].How do you solve displacement problems in physics?
To calculate displacement, simply draw a vector from your starting point to your final position and solve for the length of this line. If your starting and ending position are the same, like your circular 5K route, then your displacement is 0. In physics, displacement is represented by Δs.What is the formula of horizontal range?
The range R (in the horizontal direction) is given as: R=v0⋅T=v0√2Hg R = v 0 ⋅ T = v 0 2 H g .How do you find the height of a projectile?
How to find the maximum height of a projectile?- if α = 90°, then the formula simplifies to: hmax = h + V0² / (2 * g) and the time of flight is the longest.
- if α = 45°, then the equation may be written as:
- if α = 0°, then vertical velocity is equal to 0 (Vy = 0), and that's the case of horizontal projectile motion.
