If you have a capacitor that has nothing other than a three-digit number printed on it, the third digit represents the number of zeros to add to the end of the first two digits. The resulting number is the capacitance in pF. For example, 101 represents 100 pF: the digits 10 followed by one additional zero.

Likewise, how do you read polyester capacitor values?

Number Coding of Capacitor

  1. The number printed on the capacitor's body represents the capacitance value in Pico Farads.
  2. If the third number is zero, then the value is in Picofarad.
  3. For a 3-digit value, the third digit represents the number of zeros after the second digit.

Additionally, what are the three types of capacitors? Different Types of Capacitors

  • Electrolytic Capacitor.
  • Mica Capacitor.
  • Paper Capacitor.
  • Film Capacitor.
  • Non-Polarized Capacitor.
  • Ceramic Capacitor.

Subsequently, one may also ask, how do you read a disk capacitor?

Ceramic disc capacitors have two to three digits code printed on them. The first two numbers describe the value of the capacitor and the third number is the number of zeros in the multiplier. When the first two numbers are multiplied with the multiplier, the resulting value is the value of the capacitor in picofarads.

Can I replace a start capacitor with a higher uF?

Watch out: as a general rule of thumb, electric motor start capacitors can be replaced with a micro-farad or µF or mfd rating equal to or up to 20% higher µF than the original capacitor serving the motor. On the replacement capacitor the voltage rating must be equal to or greater than the original.

Related Question Answers

What does a capacitor look like?

There are the two conductors (known as plates, largely for historic reasons) and there's the insulator in between them (called the dielectric). The two plates inside a capacitor are wired to two electrical connections on the outside called terminals, which are like thin metal legs you can hook into an electric circuit.

How do you convert a capacitor to a value?

When converting between these it is sometimes useful to have a capacitor conversion chart or capacitor conversion table for the different capacitor values.

Capacitor conversion chart.

Capacitor Value Conversion Chart pF to nF, µ to nF, etc . .
microfarads (µF) Nanofarads (nF) Picofarads (pF)
0.000001 0.001 1
0.00001 0.01 10
0.0001 0.1 100

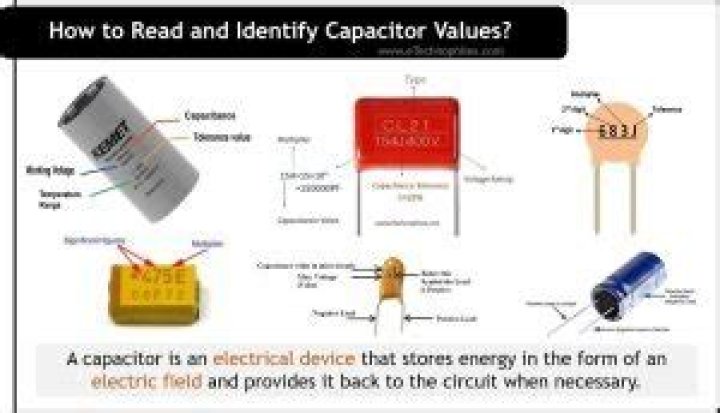

What are the markings on a capacitor?

Understanding Capacitor Markings. Capacitors are routinely marked with at least their capacitance value; many capacitors are also marked with value tolerance notation, and a breakdown voltage. Additionally, capacitors that are polarized—they have a + and a – lead—also carry a polarization marking.

How do you read a capacitor?

If you have a capacitor that has nothing other than a three-digit number printed on it, the third digit represents the number of zeros to add to the end of the first two digits. The resulting number is the capacitance in pF. For example, 101 represents 100 pF: the digits 10 followed by one additional zero.

What does 25 70 21 Mean on a capacitor?

Examples include 55/100/56, 40/85/21, 40/105/21, 40/100/56, -25/70/21, etc. This code is called the Climatic Category and consists of the climatic conditions that can be present when the capacitor is in use. It does not describe any other parameters of the capacitor such as capacitance, voltage rating or package.

How do I read a capacitor with a multimeter?

To test the capacitor with a multimeter, set the meter to read in the high ohms range, somewhere above 10k and 1m ohms. Touch the meter leads to the corresponding leads on the capacitor, red to positive and black to negative. The meter should start at zero and then moving slowly toward infinity.

How do you read a ceramic capacitor value?

Ceramic disc capacitor code / label will normally consist of three numbers followed by a letter. They are very easy to decode to find the value. The first two significant digits represent the first two digits of the actual value, which is 47. The third digit is the multiplier, which is ×1000.

What is the value of capacitor 106?

So, for example, if the digits are '106', this equals a capacitance value of 10μF. The first 2 digits are '10' and the multiplier factor is 1,000,000, so the value is 10,000,000pF or 10μF (10pF x 1,000,000= 10,000,000pF= 10μF).

What does uF mean in capacitors?

micro farad

What is capacitor and its types?

Dielectrics
Capacitor style Dielectric Relative Permittivity at 1 kHz
Film capacitors Polytetrafluoroethylene (PTFE) 2.0
Paper capacitors Paper 3.5–5.5
Aluminum electrolytic capacitors Aluminium oxide Al2O3 9,6
Tantalum electrolytic capacitors Tantalum pentoxide Ta2O5 26

How does a capacitor work?

A capacitor is made up of two metallic plates. With a dielectric material in between the plates. When you apply a voltage over the two plates, an electric field is created. And this is what the physicists mean when they say that “a capacitor works by storing energy electrostatically in an electric field”.

Does shorting a capacitor damage it?

1 Answer. Electrolytic capacitors may become permanently damaged by excessive peak currents, which will definitely occur during short-circuit events. Such inrush events may be viewed as the opposite of a short circuit condition, just that the current flows in the opposite direction ("into the cap").

What does J mean on a capacitor?

Read the tolerance code on ceramic capacitors. C = ± 0.25 pF. D = ± 0.5 pF for capacitors rated below 10 pF, or ± 0.5% for capacitors above 10 pF. F = ± 1 pF or ± 1% (same system as D above). G = ± 2 pF or ± 2% (see above). J = ± 5%.
