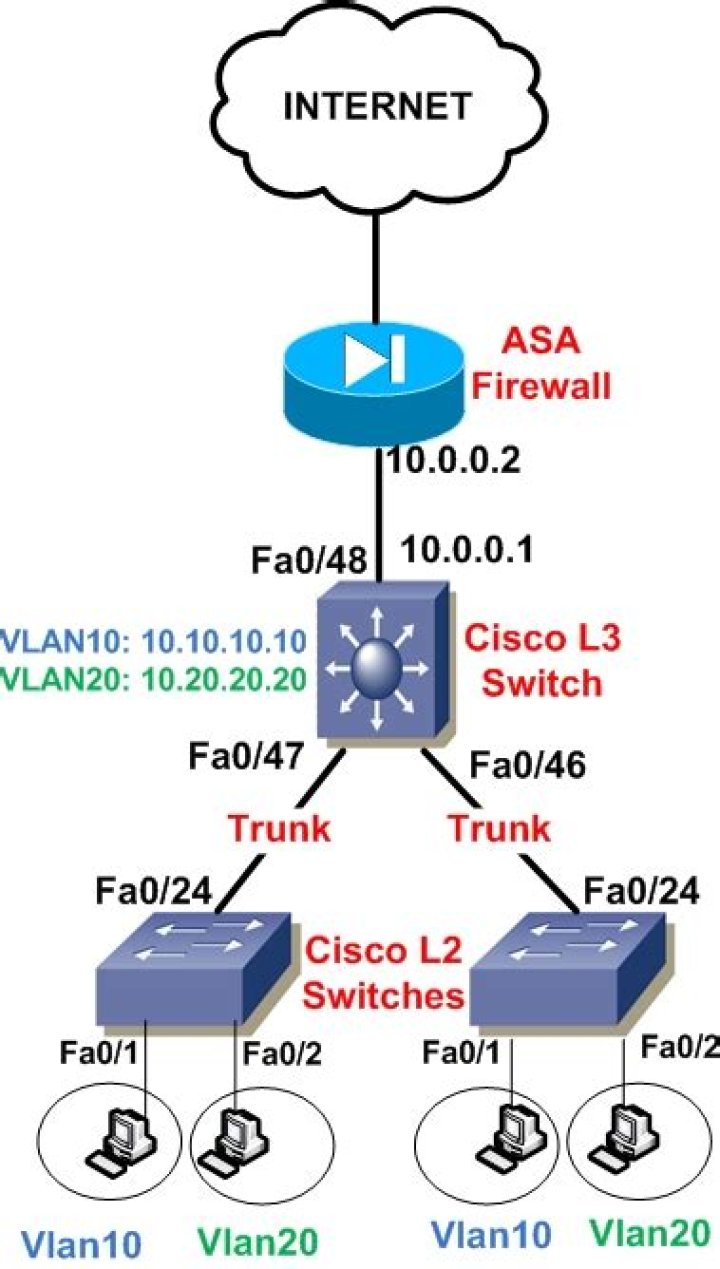

Configuring a Routed Port
- Switch(config)#ip routing. Enable IP routing on the router.
- Switch(config)#no switchport. Create the SVI interface or navigate to configuration mode for the interface.
- Switch(config-if)#ip address n.n.n.n subnet-mask. Assign an IP address to the SVI for the VLAN.
Also know, what is routed port on a switch?
Routed ports are used for point-to-point links. Connecting WAN routers and security devices are examples of the use of routed ports. In a switched network, routed ports are mostly configured between switches in the core and distribution layer.
Secondly, how do I assign a VLAN to a switch port? Assigning Access Ports to VLANs
- Choose Switch configuration.
- Choose VLAN Menu…
- Choose VLAN Port Assignment.
- Choose Edit.
- Find the port to assign.
- Press space on Default VLAN until it shows No.
- Move over to the column for the VLAN to which this port will be assigned.
- Press space until it shows Untagged.
Beside above, how do I configure a port on a switch?
To configure the switch so that you can connect an appropriate device to a port and have it work, follow these steps:
- Connect to your switch and get into Configuration mode using a set of commands like the following:
- Choose the interface by number.
- Specify the interface number.
What is difference between a routed port and Switchport on a Layer 3 switch?
There are two types of Layer 3 ports that can be configured on a switch depending on what you need to do, an SVI is for Inter-VLAN communication on a switch without the need for a router, and a Routed Port functions entirely at Layer 3 (no L2 services). Routed Port = Re-configuring a Physical interface.
Related Question Answers
Can a Layer 3 switch act as a router?
A layer 3 switch is both a switch and a router: it can be regarded as a router with multiple Ethernet ports and with switching function. Layer 3 switches are thus able to segregate ports into separate VLANs and perform the routing between them.How does a switch prevent loops?
How does STP prevent loops? Because the “best ports” are put into forwarding state and the other ports are put into blocking state, there are no loops in the network. When a new switch is introduced to the network, the algorithm and port states are recalculated to prevent a new loop.What does the no Switchport command do?
The no switchport command puts the interface in L3 mode (known as "routed port") and makes it operate more like a router interface rather than a switch port. The ip address command assigns an IP address and network mask to the interface. It is supported only on switches running the IP base or IP services image.How do I create a routed port?
Configuring a Routed Port- Switch(config)#ip routing. Enable IP routing on the router.
- Switch(config)#no switchport. Create the SVI interface or navigate to configuration mode for the interface.
- Switch(config-if)#ip address n.n.n.n subnet-mask. Assign an IP address to the SVI for the VLAN.
What command configures a port on the switch to act as a router port?
To make the port stop acting like a switch port and instead act like a router port, use the no switchport command on the interface. Once the port is acting as a routed port, think of it like a router interface.What is the difference between SVI and VLAN?
A virtual LAN or VLAN is any broadcast domain that is segregated and isolated at the data link layer OSI layer 2. VLANs reduce the load on a network by keeping local traffic within a VLAN. An SVI is virtual and has no physical port defined and performs the same functions for the VLAN as a router interface.What is routed VLAN?
In a LAN environment, VLANs divide broadcast domains. When a host in one VLAN must communicate with a host in another VLAN, the traffic must be routed between them. This type of routing is called inter-VLAN routing. The smart switch forwards an inbound multicast packet to all ports in the VLAN.What is a Layer 3 port?
Simply put, a layer 3 switch combines the functionality of a switch and a router. It acts as a switch to connect devices that are on the same subnet or virtual LAN at lightning speeds and has IP routing intelligence built into it to double up as a router.Do switches have an IP address?
A unmanaged switch does not have an IP address. It is a ethernet switch and it switches ethernet packets and on the level of ethernet packets there are no IP addresses. If you don't want your ISP to give you the second IP you must use a router or alternate the use of the devices.How are switch ports numbered?
Port numbers are assigned starting with 1. Switches that have 1 row of ports on a bank are assigned from left to right. Switches that have 2 rows of ports on a bank are assigned from top to bottom and left to right.What happens if there is no VLAN in switch ports?
An untagged port, or access port on a Cisco switch, connects to hosts (such as a server). The host is unaware of any VLAN configuration. The connected host sends its traffic without any VLAN tag on the frames. When the frame reaches the switch port, the switch will add the VLAN tag.Can you assign an IP address to a switch port?
Usually, the default VLAN 1 acts like the switch's own NIC for connecting into a LAN to send IP packets. Here are the steps to configure an IP address under VLAN 1: enter the VLAN 1 configuration mode with the interface vlan 1 global configuration command.How do I save switch settings?
Saving Configuration ChangesTo display the current running configuration, enter the show running-config command. Enter the copy running-config startup-config command to save the current running configuration to the startup configuration file in NVRAM.
What are the steps to configure a switch?
How to Configure Cisco Switches: A step-by-step Command guide- Connect the Switch to PuTTY.
- Enter Privileged EXEC Mode and Set a Hostname for the Switch.
- Assign a Password to the Switch.
- Configure Telnet and Console Access Passwords.
- Configure IP Addresses With Telnet Access.
- Configure a Network Management IP address (or Management Interface)
- Assign a Default Gateway to the Switch.
Which is the default mode in switch ports?
The default switchport mode for newer Cisco switch Ethernet interfaces is dynamic auto. Note that if two Cisco switches are left to the common default setting of auto, a trunk will never form. switchport mode dynamic desirable: Makes the interface actively attempt to convert the link to a trunk link.What is the default setting for all ports on a switch?
By default, all ports on the switch are VLAN 1.How do you reset a port on a switch?
Reset interface (port) to default- Switch> en.
- Switch# conf t.
- Switch(config)# default interface Gi1/0/1.
- Switch(config)# exit.
Should I Enable VLAN?
VLANs provide an excellent and low cost method of greatly improving you home network security and should be considered if you share your network with guests, and or have IOT devices connected to your Network.Can I create VLAN on router?
Configuring VLAN Routing via Web InterfaceSwitching --> VLAN--> Configuration. To create the VLANs and specify port participation. Routing --> VLAN Routing --> Configuration. To enable VLAN routing and configure the ports.
What is VLAN in Switch?
A virtual LAN (VLAN) is any broadcast domain that is partitioned and isolated in a computer network at the data link layer (OSI layer 2). VLANs allow network administrators to group hosts together even if the hosts are not directly connected to the same network switch.What is VLAN configuration?
A virtual LAN (VLAN) is a broadcast domain created by switches. VLANs are a convenient way to connect ports from different switches and different buildings onto the same network and broadcast domain, preventing the need for a complex system of subnets.How many ports does a VLAN have?
You can have three vlans on one port if the switch configuration allows it. Mine allows one for data and one for VoIP. The quick answer is yes, That's called a trunk.How do I add a trunk port to a VLAN?
Specify a native VLAN for untagged 802.1Q frames. Specify the list of VLANs to be allowed on the trunk link. Return to the privileged EXEC mode. Use the Cisco IOS switchport trunk allowed vlan vlan-list command to specify the list of VLANs to be allowed on the trunk link.How do you set up a VLAN?
Select Switching>VLAN>Basic > VLAN Configuration. Create a static VLAN by specifying a VLAN ID and VLAN name, and, from the VLAN Type menu, selecting Static. Click the Add button. The new VLAN is added to the configuration.What is a VLAN interface?
A VLAN Interface is a virtual interface that is attached to the physical network port or bond that your VLAN is configured on. The VLAN Interface is used to automatically tag traffic that is routed through it with the appropriate VLAN ID.How do I assign a port to a VLAN on an HP switch?
To configure dynamic MAC-based VLAN follow the steps given below:- Enter system view, use the command: system view.
- Enter interface view or port group view. Enter Ethernet interface view, use the command:
- Configure the link type of the ports as hybrid, use the command: port link-type hybrid.
- Enable MAC-based VLAN.
Can Layer 3 switch route between VLANs?
When using a router to facilitate inter-VLAN routing, the router interfaces can be connected to separate VLANs. Devices on those VLANs communicate with each other via the router. Apart from that, a more convenient way is introduced — configure inter VLAN routing on layer 3 switches.How do I change a Layer 2 switch to a Layer 3 switch?
Port ConfigurationOn both of the CGRs, you can configure the 2 GE ports to operate in Layer 2 mode or the default Layer 3 mode. You can convert the switch to Layer 2 mode by using the switchport command. Note Layer 2 switching is hardware switched. Layer 3 switching is software forwarding.
