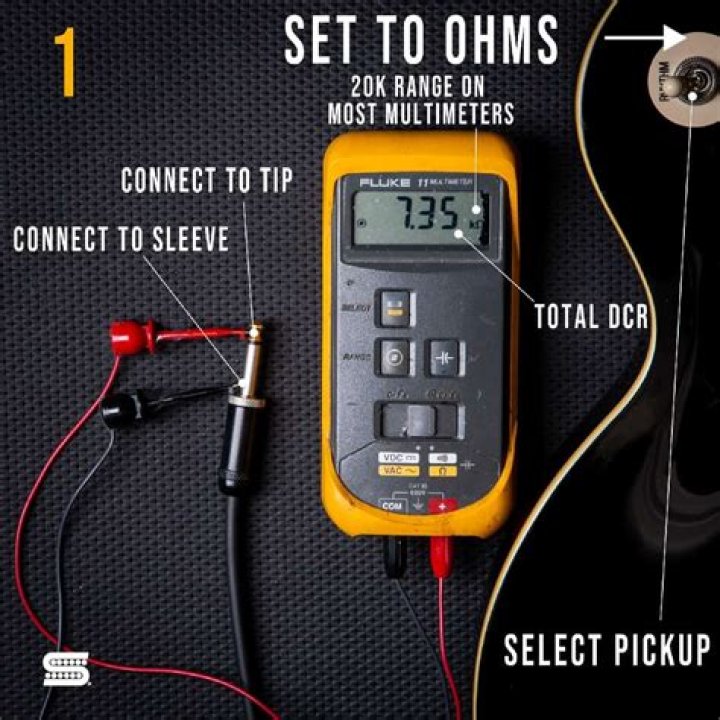

It's a simple process to test a pickup. Set the multimeter to the ohm setting and touch its red test lead to the pickup's primary lead (hot) and touch the black test lead to the pickup's ground wire. If you're testing a humbucker with four conductors, make sure that the wires are properly attached to each other.

Besides, do pickups really make difference?

changing the pickups can drastically change the tone of a guitar! especially with modern active pickups, there is really no limit to how much you can change your tone. If your amp is any good, your guitar is any good, your pedals are any good and you choose your pickups wisely then yes, they can make some difference.

Additionally, are guitar pickups supposed to move? It's not normal, however, if they shake around on their own. It's totally normal if guitar pick-ups move a little bit when you push on them in some way, however, if they move around on their own, there is something wrong.

In respect to this, can guitar pickups die?

Pickups can die, but it's very rare hold one under an industrial electromagnet , for example, and it'll stop working. Also on very rare occasions the windings can become damaged, but that's usually a result of botched maintenance, it doesn't just "happen".

How do I know if my guitar is grounded?

Checking Your Guitar's Grounding Touch the probes to a guitar string and the ground section of the output jack. If you hear a clear beep then your ground is good. If not then it's time to check all of your wiring, making sure that all solder-joints are nice and solid.

Related Question Answers

How long do guitar pickups last?

High-output humbuckers do not break in well and never have. There are "metal" guitars aplenty out there with humbucker pickups that are useless after about 12 to 24 months, depending on how much the guitar was played. The break-in period of a high-output humbucker is quick, and usually takes less than 6 months.

Are rusty guitar pickups bad?

There is no way that you'll ever get electrocuted due to rusty pickups. The one way you might, is if your amp isn't grounded (many older amps didn't even have a ground pin on the plug.). In that case, you should be fine as long as you're not standing in a puddle.

What makes guitar pickups sound different?

The shape, size, and composition of the magnet, along with the amount of coil wire, the winding pattern of the coil wire, gauge of the coil wire, and the make up and size of the pole pieces are all parts of the pickup that effect the tone.

What does it mean when pickups are out of phase?

When they are out-of-phase, the two pickups work against one another; the resulting sound is simply the “leftovers” from the pickups' cancellations. The closer the two pickups are, the greater the cancellations, meaning thinner sound and lesser volume.

Why does my guitar hum when I touch the strings?

So, when you touch your guitar strings, it's you that's being grounded through the guitar. The reason the noise quietens is that when you're grounded, you no longer act as a fleshy meat antenna (careful, now). Ordinarily, you're standing around soaking up various electrical interference from the environment.

What does guitar pickup resistance mean?

The DC (direct current) resistance of a guitar pickup tells you how much the wire coil in the pickup resists electron flow through the system. Knowing the resistance (measured in kiloOhms or kΩ) only tells you one tiny bit about a pickup and it's potential performance and sound.

How do I know what pickups to get for my guitar?

There are three ways you can try to identify what pickups you're using: by looks, by sound, and by the guitar.

Identifying Pickups Visually

  1. Single coil pickups are small and thin.
  2. P90 pickups look like single coils except they are a bit wider.
  3. Humbucker pickups are much wider, usually twice the size of a single coil.

How do I test a guitar cable with a multimeter?

1) Tip to tip (hot)
  1. Set your multimeter to resistance (ohms; symbol: Ω), choosing a very small scale.
  2. Place both plugs of the same cable on the wooden surface of your table.
  3. Touch both plug tips with the probes – the red one going to one plug, the black one to the other.

Why is my guitar pickup not working?

If the guitar exhibits no output from any of its pickups the first thing to check is the wiring at the jack and the switch. You just need to make sure that the output jack of the guitar isn't shorted to ground and is properly grounded to the same location as the pickup ground.

Which pickup wire is hot?

Once you've established the right way to wire the humbuckers, all that's left is to establish the relative phase of the single coil with respect to them. Again, just pick a wire, for example white, and connect it to ground, and the other one (red) as hot.

Can humbuckers be out of phase?

First, the coils can be wired in series or parallel, the coils can be in-phase or out-of-phase with each other. The traditional humbucker is wired in series, out-of-phase (see diagram #1).

Are Strat pickups out of phase?

This is why most Strat middle pickups and Tele neck pickups are what is known as reverse wind, reverse polarity, or RWRP for short. With a RWRP middle pickup in a Strat, for example, you will get hum cancelling in positions 2 and 4 on a 5-way switch. When this happens, we say that the pickups are out of phase.

Can a humbucker be out of phase with itself?

Just like speakers, pickups have a polarity that must be matched to the other pickup. Positive and negative If one pickup is wired backwards (positive where the negative should be), it will be out of phase with the other pickup, but only when both pickups are selected. It will sound just fine by itself.

What do out of phase pickups sound like?

When they are out-of-phase, the two pickups work against one another; the resulting sound is simply the “leftovers” from the pickups' cancellations. The closer the two pickups are, the greater the cancellations, meaning thinner sound and lesser volume.

Does it matter which way you put a humbucker in?

Most humbuckers are symmetrical and their sound does not change at all when installed backwards. Some humbuckers have a distinctly different sound if you turn them around. There is no right or wrong installation direction. The Bluesbucker® is brighter-sounding with the adjustable screw coil toward the bridge.
