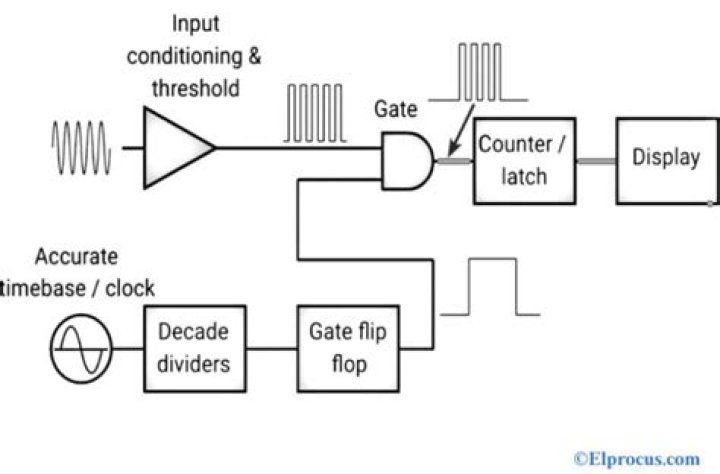

Operating principle Most frequency counters work by using a counter which accumulates the number of events occurring within a specific period of time. After a preset period known as the gate time (1 second, for example), the value in the counter is transferred to a display and the counter is reset to zero.
Similarly, you may ask, what is a digital frequency meter?
Digital frequency meter is a general purpose instrument that displays the frequency of a periodic electrical signal to an accuracy of three decimal places. It counts the number events occurring within the oscillations during a given interval of time.
Beside above, which type of counter is used for counting high frequencies and why? Asynchronous Vs Synchronous Counters
| Synchronous counters | Asynchronous counters |
|---|---|
| Its operational frequency is very high. | The maximum frequency of operation is very low. |
| These are faster than that of ripple counters. | These are slow in operation. |
Subsequently, one may also ask, how does a counter work?
Counter is a digital device and the output of the counter includes a predefined state based on the clock pulse applications. The output of the counter can be used to count the number of pulses. Generally, counters consist of a flip-flop arrangement which can be synchronous counter or asynchronous counter.
How do you measure frequency of a signal?
The number of ticks of the Input Signal is then counted over the known period of time provided by theInternal Signal. Dividing the number of ticks by the known measurement time gives the frequency of the Input Signal.
Related Question Answers
What is the difference between analog and digital frequency meter?
The primary difference between the two is the display, an analog multimeter uses a needle to show the value, while a digital multimeter will show the results as numbers on a screen.What is a digital frequency counter?
A frequency counter is an electronic instrument, or component of one, that is used for measuring frequency. Frequency counters usually measure the number of cycles of oscillation, or pulses per second in a periodic electronic signal.How do you measure the frequency?
Usually frequency is measured in the hertz unit, named in honor of the 19th-century German physicist Heinrich Rudolf Hertz. The hertz measurement, abbreviated Hz, is the number of waves that pass by per second. For example, an "A" note on a violin string vibrates at about 440 Hz (440 vibrations per second).What is digital phase meter?
Digital Phase Meter: Digital Phase Meter – The simplest technique to measure the phase difference between two signals employs two flip-flops. The signals to be fed must be of the same frequency. The frequency of the two inputs is the same but their phases are different.What is frequency meter in microwave?
To measure the frequency of a microwave signal, the Resonant Cavity Frequency Meter is tuned until it resonates at the signal frequency. If a SWR meter is used as the indicator, resonance will reflect as a decrease (dip) in the signal level due to the storage of energy in the cavity at resonance.Why Schmitt trigger is used in digital frequency meter?
Basic Circuit of a Digital Frequency Meter The Schmitt trigger converts the input signal into a square wave with fast rise and fall times, which is then differentiated and clipped. As a result, the output from the Schmitt trigger is a train of pulses, one pulse for each cycle of the signal.What are frequency counters used for?
Frequency counters are test instruments used to provide very accurate measurements of the frequency of a signal. Frequency counters are test instruments used in many applications associated with radio frequency engineering to measure the frequency of signals very accurately.How does a frequency meter work?
A frequency meter is an instrument that displays the frequency of a periodic electrical signal. Various types of frequency meters are used. Frequencies in the middle of the meter's range cause the currents in the two coils to be approximately equal and the pointer to indicate the midpoint of a scale.Why JK flip flop is used in counters?
The J-K Flip-flop is one of the most versatile and widely used flip-flops. The most prominent reason behind using it as a counter is its toggle operation. If J and K are both high at the clock edge then the output will toggle from one state to the other. Thus, it can function as D Flip-flop.Which flip flop is used in counters?
Asynchronous or ripple counters The toggle (T) flip-flop are being used. But we can use the JK flip-flop also with J and K connected permanently to logic 1.What is difference between up counter and down counter?
The only difference between an up-counter and a down counter stems from the ports that are connected to the display. For up-counters, the non-inverted output, Q, is connected to the display. Whereas for a down counter, the inverted output, nQ, is connected to the display.How do you make an asynchronous counter?
Asynchronous counters can be easily designed by T flip flop or D flip flop. These are also called as Ripple counters, and are used in low speed circuits. They are used as Divide by- n counters, which divide the input by n, where n is an integer. Asynchronous counters are also used as Truncated counters.What are the types of counter?
Types of Electronic Counters- Synchronous counter.
- Asynchronous Counter or Ripple Counter.
- Up/Down Counter.
- Decade Counter.
- Ring counter.
- Cascaded counter.
- Johnson counter.
- Modulus counter.
