Those who have installed HDMI cables in their walls are ill-equipped to removing them if a connector becomes broken. You can repair the broken connector by replacing it with a new connector. You will need a few tools found in most homes as well as supplies acquired from an electronics store.

Then, what does the end of an HDMI cable look like?

The Standard 14mm version of HDMI connector is known as 'Type A' and is available as either a 'plug' or 'male' connector on the cable. A normal HDMI cable will usually feature a plug at both ends, with HDMI Type A Sockets featuring on the AV devices (the Source, Display, Screen, TVG, etc).

Subsequently, question is, what happens if HDMI cable is bad? Common problems that may be signs or symptoms of a bad HDMI cable include: “Shooting stars” or sparkling in the picture. Fuzzy or blurry picture. No picture or intermittent picture.

Also asked, how long can an HDMI cable be before it loses quality?

50 feet

Can you splice HDMI cables together?

It is impossible to splice a HDMI cable. the signal path, attenuation and various other components will be stuffed.

Related Question Answers

Can you make a HDMI cable out of cat5?

CAT5 is widely used to make HDMI cables and transmit HDMI cable data. For those wanting to make HDMI cables from Category 5 Ethernet-style cables, the solution lies with baluns. These are devices that alter the wiring pattern of two CAT5 cables, converting them internally to HDMI.

Can I replace HDMI ports on my TV?

Though it's possible to repair a broken HDMI port on a television, it is extremely difficult and should not be attempted unless you are very comfortable with soldering tiny connections. If your television is under warranty, have the manufacturer repair or replace it for you.

Can you make a HDMI cable?

New from Greenlee is a HDMI Field Installation Kit designed to let the installer make custom length High Speed HDMI cables. The kit includes the stripper, crimper and field installable HDMI plugs allowing the installer to make any custom length HDMI cable from 1' to 100'.

How many wires does HDMI cable have?

HDMI connectors have 19 pins/19 wires – how do you get 19 wires down to one or two Category cables that only have eight wires within each?

Is there a difference between HDMI 1.4 and 2.0 cables?

In a nutshell, HDMI 2.0 is designed to handle more bandwidth than HDMI 1.4. Both can deliver 4K video, but HDMI 2.0 can transfer up to 18Gbps whereas HDMI 1.4 can only transfer up to 10.2Gbps. That extra bandwidth allows HDMI 2.0 to deliver a few extras that might have seemed unnecessary just a few years ago.

Should I run hdmi1 or hdmi2?

Doesn't matter. Either will work fine. They're just separate inputs.

Do all HDMI cables support audio?

Yes, all HDMI cables have the video and audio signals directly transported. You cannot have one without the other, so the HDMI cable is almost never the issue when you have just one of the two. If you're having an issue with the sound, check the settings directly on your source.

Are there different grades of HDMI cables?

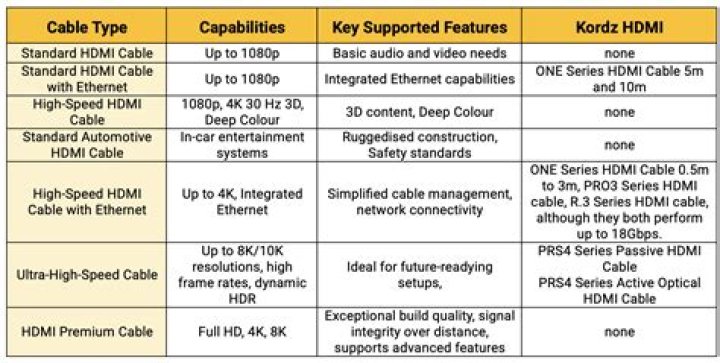

Are there different types of HDMI cables? Although your search for an HDMI cable may seem overwhelming at first, there are really only four types to consider: high speed with Ethernet, high speed without Ethernet, standard speed with Ethernet, and standard speed without Ethernet.

Do all HDMI cables support 4k?

It's important to remember that all High-Speed HDMI cables will carry a 4K video signal. If you bought your cables after 2009, your 4K content should reach your screen. HDMI cables tested under version 1.4 should carry 4K but they may not do it as well as you'd like.

Are HDMI cables different?

There's no such thing as HDMI cable "versions." As in, there's no such thing as an "HDMI 2.0" cable. The version numbers refer to the connections in your TV, receiver or sound bar. So your TV and 4K Blu-ray player need to both have HDMI 2.0 to watch HDR content, but the cable connecting them couldn't care less.

What is HDMI male and female?

Male Cables, Female Ports

All HDMI ports on devices -- both outputs on media devices and inputs on TVs -- are designated as female. Extension cables, however, have a male tip on one end and a female port on the other, allowing you to connect a standard cable to the end of the extension cable.

Are there two sizes of HDMI cables?

HDMI uses five main connector types: Type A, B, C, D, and E, each for different applications - these include the standard connector as well as the mini-HDMI and micro-HDMI. There are five types of HDMI connector.

Is USB C the same as Mini HDMI?

While HDMI cables are probably extremely familiar products to most people, there are actually three different consumer HDMI cable types: HDMI Type A, which is the full-size HDMI connector you know and love; HDMI Type C, known as Mini HDMI, a smaller connector designed for smaller portable devices (like cameras and

How long can you run a 4k HDMI cable?

For resolutions near 4K, it's recommended to use an HDMI cable that is no longer than 3 meters (10 feet). After that distance, the signal can start to degrade. For lower resolutions, the reliable distance is much longer, with the most common being 15 meters (50 feet).

Do long HDMI cables cause lag?

1 – Does HDMI cable length affect input lag? Results are pretty clear, right? There is no difference between the cables on all 3 different units they were used. It doesn't matter how long the cable is, it is the electronics in the TV that define the input lag value.

What is the longest HDMI cable without signal loss?

HDMI Category 1 - also referred to as Standard HDMI cables will easily reach up to 5 metres without any problems and in ideal conditions will transmit over distances of up to 20 metres. But remember! - before running any longer cable distances through walls or ceilings, etc - test your system first!

Are shorter HDMI cables better?

If you don't need a cable this long, then it's wise to stick to shorter HDMI cables. The rule here is that the shorter your HDMI cable is, the better the sound and video quality.

Do HDMI splitters reduce quality?

In order to remedy this fear, the image and audio quality do not decline when a good HDMI Splitter is used! Since the HDMI cable transmit digital signals and digital signals can be copied without loss of quality, then the quality remains the same with the transmission.
