The LVDT acting as a primary transducer converts the displacement to electrical signal directly. The LVDT can also act as a secondary transducer.

Similarly, you may ask, which type of transducer is LVDT?

LVDT is an acronym for Linear Variable Differential Transformer. It is a common type of electromechanical transducer that can convert the rectilinear motion of an object to which it is coupled mechanically into a corresponding electrical signal.

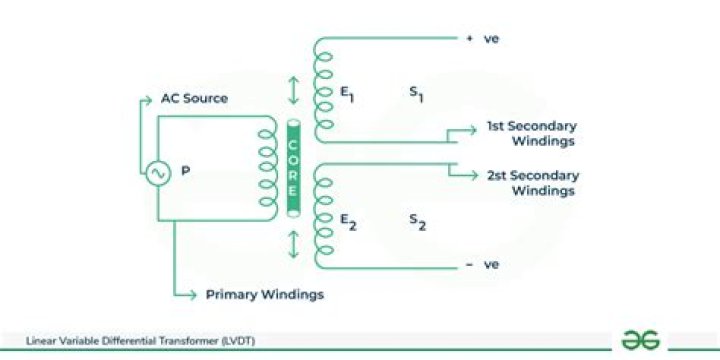

Secondly, what are the three main parts of LVDT? The main components of an LVDT are a transformer and a core. The transformer consists of three coils — a primary and two secondaries (S1 and S2) — wound on a hollow form, which is typically made of glass-reinforced polymer.

Besides, is LVDT primary or secondary transducer?

The Bourdon's Tube is the primary transducer, and the L.V.D.T is called the secondary transducer.

What are the applications of LVDT?

LVDT Applications

  • Main transducer – the LVDT will convert the displacement into an electrical signal.
  • Secondary Transducer- An LVDT can also be used as a secondary transducer where it will measure force, weight or pressure.
  • Friction Free – they are non-contacting and therefore friction free meaning they offer long life.

Related Question Answers

Is LVDT active or passive transducer?

Example of passive transducer is LVDT (linear variable differential transformer). It generates electric current or voltage directly in response to environmental stimulation. It gives a change in some passive electrical quantity, such as capacitance, resistance or inductance, as a result of stimulation.

What is LVDT principle?

Linear variable differential transformers (LVDT) are used to measure displacement. LVDTs operate on the principle of a transformer. As shown in Figure 2, an LVDT consists of a coil assembly and a core. Magnetic flux produced by the primary is coupled to the two secondary coils, inducing an AC voltage in each coil.

Why it is called LVDT?

The term LVDT stands for the Linear Variable Differential Transformer. The output across secondary of this transformer is the differential thus it is called so. It is very accurate inductive transducer as compared to other inductive transducers.

Why LVDT is called linear?

Definition: The Linear Variable Inductive Transformer converts the linear displacement into an electrical signal. The output of the transformer is obtained because of the difference of the secondary voltages, and hence it is called a differential transformer.

Who invented LVDT?

Herman Schaevitz

What are the advantages of LVDT?

Advantages:
  • The LVDT has low power consumption.
  • It has higher sensitive.
  • It has ruggedness.
  • It has wide range.
  • It has low hysteresis.

Is LVDT and inductive transducer?

Then the LVDT is a passive inductive transducer that requires an external source of power to operate. It uses coils and an alternating magnetic field to produce an analogue output voltage making it a variable inductive transducer.

How many types of transducers are there?

two

What is an example of a transducer?

A transducer is an electronic device that converts energy from one form to another. Common examples include microphones, loudspeakers, thermometers, position and pressure sensors, and antenna. Among the worst transducers, in terms of efficiency, are incandescent lamps.

Which is active transducer?

The transducer which gives the electrical output (in the form of voltage and current) without any external energy source is known as the active transducer. The transducer whose physical properties varies because of the input or measurand signal is known as the passive transducer.

What is sensitivity of LVDT?

Sensitivity mostly affects the gain required of the LVDT's signal conditioning electronics. The sensitivity is then defined as the ratio between the output signal and measured property. For example, if a sensor measures temperature and has a voltage output, the sensitivity is a constant with the units [V/K].

Is thermocouple a sensor or a transducer?

So, thermocouple is an temperature transducer.

What is strain gauge transducer?

Strain gauge-type transducers electrically convert physical quantities. They operate by converting physical quantities into mechanical stress in a component called a sensing element, and then electrically converting that stress with a strain gauge.

Is analogue voltmeter a transducer?

A transducer, which converts input signal into output signal in a continuous function of time is known as Analog transducer. On the other hand, a transducer, which converts input signal into output signal in the form of pulses i.e., it gives discrete output is called a digital transducer.

What is transducer and types?

A transducer is an electrical device that is used to convert one form of energy into another form. In general, these devices deal with different types of energies such as mechanical, electrical energy, light energy, chemical energy, thermal energy, acoustic energy, electromagnetic energy, and so on. Transducer.

Which is an analog transducer?

An analog transducer is a device that converts the input signal into a continuous DC signal of voltage or current.

What are the types of active transducer?

Active Transducers
  • Piezo Electric Transducer.
  • Photo Electric Transducer.
  • Thermo Electric Transducer.

What is LVDT and Rvdt?

The linear variable differential transformer (LVDT) is a type of electrical transformer/transducer used for measuring linear displacement (position). A counterpart to this device that is used for measuring rotary displacement is called a rotary variable differential transformer (RVDT).

What is LVDT explain it with neat diagram?

The LVDT full form is “Linear Variable Differential Transformer” is LVDT. Generally, LVDT is a normal type of transducer. The main function of this is to convert the rectangular movement of an object to the equivalent electrical signal. The above LVDT sensor diagram comprises a core as well as a coil assembly.

Which type of core is used in LVDT?

An LVDT core is normally a cylinder made from permeable magnetic material which provides inductive coupling between the primary coil and the secondary coils. The core's material is often some kind of ferromagnetic metal such as iron or ferrimagnetic compounds such as ferrites.

What does Rvdt stand for?

Rotary Variable Differential Transformer

What is residual voltage of LVDT?

What is residual voltage in lvdt? Ideally, the output voltage at the null position should be equal to zero. However, in actual practice, there exists a small voltage known as Residual Voltage, at the null position. This residual voltage is generally less than 1% of the maximum output voltage in the linear range.

What is the definition of a transducer?

A transducer is a device that converts energy from one form to another. Usually a transducer converts a signal in one form of energy to a signal in another.

How LVDT is used for pressure measurement?

An LVDT is incorporated into a pressure measurement device by connecting the core of the LVDT to the centre of a pressure sensing diaphragm, so that any flexing of the diaphragm due to changes in pressure will be detected as a position change by the LVDT.

What is measured by a Hall effect transducer?

Measurement of Power – The hall effect transducer is used for measuring the power of the conductor. The current is applied across the conductor, which develops the magnetic field. The intensity of the field depends on the current.
