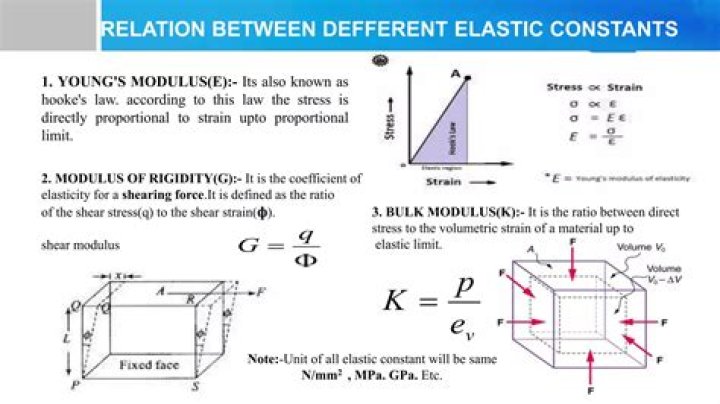

Young's modulus, Bulk modulus, and Rigidity modulus of any elastic solid are together called as Elastic constants. When a deforming force is acting on a solid. It results in the change in its original dimension. In such cases, we can use the relation between elastic constants to understand the magnitude of deformation.
Hereof, what are the elastic constants?
Elastic Constants: Stress produces a strain, but how much strain is produced depends on the solid itself. The three types of elastic constants (moduli) are: Modulus of elasticity or Young's modulus (E), Bulk modulus (K) and. Modulus of rigidity or shear modulus (M, C or G).
Secondly, what is the relationship between modulus of elasticity and modulus of rigidity? Young's modulus of elasticity of a material is the ratio of longitudinal stress to the longitudinal strain produced in a body made of same material. Modulus of rigidity is the ratio of tangential stress to shear strain.
Also asked, how do you find the elastic constant?
For isotropic materials, only two independent elastic constants are needed for describing the stress-strain relationship, i.e., Hooke's Law. Select 2 constants for input, and calculate the rest.
Answer.
| Young's Modulus E: | 70.00 GPa |
|---|---|
| Lamé's Constant l: | 40.38 GPa |
What is G in SOM?
In materials science, shear modulus or modulus of rigidity, denoted by G, or sometimes S or μ, is defined as the ratio of shear stress to the shear strain: where = shear stress is the force which acts is the area on which the force acts = shear strain.
Related Question Answers
Why are elastic constants needed?
Hydrogen–Metal Systems: Elastic Properties The elastic constants are needed to evaluate γ and B; vM is determined from the density of the metal, and vH is often known from measurements of the lattice expansion on absorption of hydrogen. The energy U contributes to the enthalpy of formation of the hydride.How many elastic constants are there?
There are 81 independent elastic constants for generally anisotropic material and two for an isotropic material. Let us summarize the reduction of elastic constants from generally anisotropic to isotropic material. For a generally anisotropic material there are 81 independent elastic constants.What are the 4 types of elasticity?
5 Types of Price Elasticity of Demand – Explained!- Perfectly Elastic Demand: When a small change in price of a product causes a major change in its demand, it is said to be perfectly elastic demand.
- Perfectly Inelastic Demand:
- Relatively Elastic Demand:
- Relatively Inelastic Demand:
- Unitary Elastic Demand:
Is Young's modulus a constant?
No. It's a material property. For the metals and ceramics that are isotopic, in such cases Young's modulus will have constant value since their mechanical properties are same in all orientations. For anisotropic material Young's modulus will change depending on the direction of the force vector.What is elasticity limit?
Elastic limit, maximum stress or force per unit area within a solid material that can arise before the onset of permanent deformation. When stresses up to the elastic limit are removed, the material resumes its original size and shape. Stresses beyond the elastic limit cause a material to yield or flow.What is Young's modulus used for?
Young's modulus is a measure of the ability of a material to withstand changes in length when under lengthwise tension or compression. Sometimes referred to as the modulus of elasticity, Young's modulus is equal to the longitudinal stress divided by the strain.What is meant by rigidity modulus?
Modulus of Rigidity - G - (Shear Modulus) is the coefficient of elasticity for a shearing force. It is defined as. "the ratio of shear stress to the displacement per unit sample length (shear strain)"What are elastic properties?
The bulk elastic properties of a material determine how much it will compress under a given amount of external pressure. The ratio of the change in pressure to the fractional volume compression is called the bulk modulus of the material. The amount of compression of solids and liquids is seen to be very small.How do you find Poisson's ratio?
Deriving the Formula Write down the formula for Poisson's ratio: μ = –εt / εl. Again, note that Poisson's ratio is dividing two dimensionless quantities, and therefore the result is dimensionless and has no units.What is the dimension of elasticity?
It is defined as the ratio of tangential stress to the shearing strain, within the elastic limit. Its unit is N/m2 or Pascal and its dimensional formula is [ML-1T-2]. Compressibility of a material is the reciprocal of its bulk modulus of elasticity. Its SI unit is N-1m2 and CGS unit is dyne-1 cm2.What is the formula for elastic potential energy?
Elastic potential energy is equal to the force times the distance of movement. Elastic potential energy = force x distance of displacement. Because the force is = spring constant x displacement, then the Elastic potential energy = spring constant x displacement squared.What is the unit of elastic potential energy?
Elastic potential energy is stored in a spring that has been stretched or compressed by a distance x away from its equilibrium position. The letter k is used for the spring constant, and it has the units N/m. Like all work and energy, the unit of potential energy is the Joule (J), where 1 J = 1 N∙m = 1 kg m2/s2 .What is the elastic constant of a spring?
To put a number to elasticity, we use the spring constant. The spring constant is a number that represents how much force it takes to stretch a material -- materials with larger spring constants are stiffer. Hooke's Law tells us how this spring constant relates to the force we need to apply to stretch the object.What is bulk modulus of air?
Hence you can notice that bulk modulus of a gas is based on its pressure. The atmospheric pressure of air at STP is 1.01325 x 105N/m2 and the bulk modulus is of similar order, while it is 2.15 x 109 N/m2. These values show that air is over 15,000 times more compressible than water.What is the unit of extension?
Extension and compression force (F) is measured in newtons (N) spring constant (k) is measured in newtons per metre (N/m) extension (e), or increase in length, is measured in metres (m)What does modulus of elasticity mean?
An elastic modulus (also known as modulus of elasticity) is a quantity that measures an object or substance's resistance to being deformed elastically (i.e., non-permanently) when a stress is applied to it.What is the formula for bulk modulus?
The formula for bulk modulus is bulk modulus = - ( pressure applied / fractional change in volume). Bulk modulus is related to elastic modulus.What is the unit of Young's modulus?
Young's modulus = stress/strain = (FL0)/A(Ln − L0). This is a specific form of Hooke's law of elasticity. The units of Young's modulus in the English system are pounds per square inch (psi), and in the metric system newtons per square metre (N/m2).What are the 3 modulus of elasticity?
The modulus of elasticity is simply the ratio between stress and strain. Elastic Moduli can be of three types, Young's modulus, Shear modulus, and Bulk modulus.What is torsional rigidity?
Torsional rigidity is the amount of resistance a cross section has against torsional deformation. The higher the rigidity, the more resistance the cross section has. it is the minimum force required to deform an object.What is Poisson's ratio used for?
Poisson's ratio is a measure of the Poisson effect, the phenomenon in which a material tends to expand in directions perpendicular to the direction of compression. Conversely, if the material is stretched rather than compressed, it usually tends to contract in the directions transverse to the direction of stretching.What is the equation for Modulus of elasticity?
The modulus of elasticity equation is used only under conditions of elastic deformation from compression or tension. The modulus of elasticity is simply stress divided by strain: E = σ / ε with units of pascals (Pa), newtons per square meter (N/m2) or newtons per square millimeter (N/mm2).What is the relationship between Poisson's ratio and Young's modulus?
Poisson's ratio(n) is related to elastic moduli K (also called B), the bulk modulus; G as the shear modulus; and E, Young's modulus, by the following (for isotropic solids, those for which properties are independent of direction). The elastic moduli are measures of stiffness. They are ratios of stress to strain.What does Poisson ratio of 0.5 mean?
The value of 0.5 indicates that the volume of the material or object will remain the same or constant during the elongation process or when the diameter decreases of material when the material is elastomeric. Following is the different Poisson's Ratio for different materials. Rubber = 0.49.What is the difference between Young's modulus and modulus of elasticity?
Young's modulus (E) describes tensile elasticity, or the tendency of an object to deform along an axis when opposing forces are applied along that axis; it is defined as the ratio of tensile stress to tensile strain. It is often referred to simply as the elastic modulus.How do you calculate Young's modulus?
Young's modulus equation is E = tensile stress/tensile strain = (FL) / (A * change in L), where F is the applied force, L is the initial length, A is the square area, and E is Young's modulus in Pascals (Pa). Using a graph, you can determine whether a material shows elasticity.What is G for steel?
Modulus of Rigidity of some Common Materials| Material | Shear Modulus - G - | |
|---|---|---|
| (106 psi) | (GPa) | |
| Structural Steel | 11.5 | 79.3 |
| Stainless Steel | 11.2 | 77.2 |
| Steel, Cast | 11.3 | 78 |
