Welding equipment and soldering tools are used to create a joint on a workpiece. They include soldering irons, stick welders, TIG welders, MIG welders, and gas welders as well as the torches, electrodes, filler metals, solder, and other welding supplies that are used with them.
Consequently, what equipment is needed for arc welding?

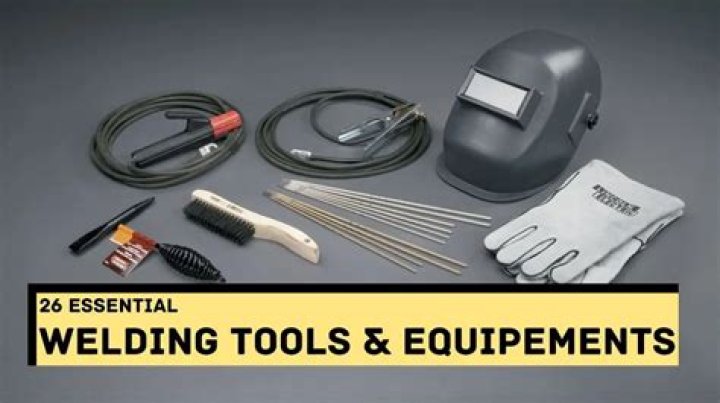

The various equipments required for electric arc welding are:
- Welding Machine: The welding machine used can be A.C. or D.C. welding machine.
- Electrode Holders:
- Cables or Leads:
- Cable Connectors and Lugs:
- Chipping Hammer:
- Wire Brush, Power Wire Wheel:
- Protective Clothing:
- Screen or Face Shield:
Similarly, what are the different types of welding machines? Types of Welding Machines
- arc welding (MIG, TIG, stick, submerged arc)
- resistance welding.
- laser welding.
- electron beam welding.
- stud welding.
- orbital welding.
- wave soldering.
- hot dip brazing.
Accordingly, what are the 4 types of welding?
However, only four welding types are used commonly, and they are MIG, TIG, Stick and Flux- Cored arc welding.
What is needed to start welding?
Right-angle grinder: for grinding, beveling, and flattening welds, as well as for surface preparation. Miter clamp or magnet square: to secure joints. Chipping hammer and wire brush: for cleaning up slag and spatter. Welding pliers: to trim welding wire and remove spatter from the welding-gun nozzle.
Related Question Answers
What are the disadvantages of arc welding?
Disadvantages of Arc Welding:- Not suitable for welding thin metals.
- Requires skilled welders.
- Cannot be used for reactive metals like Al or Ti.
What equipment is needed for MIG welding?
What Equipment is Needed To MIG Weld?- Wire Feeder.
- MIG Gun.
- Gas Regulator.
- Hoses and Ground Clamp.
How much current is required for arc welding?
Welding usually requires high current (over 80 amperes) and it can need above 12,000 amperes in spot welding. Low current can also be used; welding two razor blades together at 5 amps with gas tungsten arc welding is a good example.Which current is used in arc welding?
Both direct current (D.C.) and alternating current (A.C.) are used for arc welding. The alternating current for arc is obtained from a step down transformer. The transformer receives current from the main supply at 220 to 440 volts and step down to required voltage i.e., 80 to 100 volts.What is the basic principle of arc welding?
Working Principle of Electric Arc Welding The working principle of arc winding is, in a welding process the heat can be generated with an electric arc strike among the workpiece as well as an electrode. This is glowing electrical discharge among two electrodes throughout ionized gas.What do welders do?
A welder's primary duty is to join metal parts together. They may also fix holes in metal objects as well. They work on the metal components of various structures to include pipelines, bridges, power plants, buildings, refineries, automobiles, or ships. There is also more to welding than most people may realize.What type of welding is most in demand?
MIG weldingWhich Weld is the strongest?
TIG weldingWhich type of welding is best?
As we said, MIG is the most versatile and the easiest one to learn; TIG is the most aesthetically pleasing; stick and arc produce the strongest welds and can operate under less than desirable conditions. We also discussed the best beginner's welder and the type that produces the strongest weld.Is welding hard to learn?
Welding is not difficult to learn – but it does take time to become proficient and consistent. There are different methods to weld many different types of metals. As stated above – the best way to learn the basics is through a technical school or community college.What is best welder for beginner?
The 7 Best Welders for Beginners:- Weldpro 200 Multi-Process Welder – Best Overall.
- Lotos TIG200 Aluminum TIG Welder.
- Forney Easy Weld 271 MIG Welder – Best Value.
- ESAB 120/230-Volt MIG/TIG/Stick Welder.
- Lotos MIG140 Flux Core & Aluminum Beginner Welder.
- Hobart Handler 210 Beginner MIG Welder.
- Amico TIG160 ARC Stick Welder.
What are the dangers of welding?
Health hazards associated with welding, cutting, and brazing operations include exposures to metal fumes and to ultraviolet (UV) radiation. Safety hazards associated with these processes include burns, eye damage, electrical shock, cuts, and injury to toes and fingers.What are the 5 welding positions?
4 Basic Welding Positions- Flat Position (1G and 1F) The easiest type to perform is the flat position, which is also sometimes called the downhand position.
- Horizontal Position (2G and 2F) This is an out of position welding position.
- Vertical Position (3F and 3G)
- Overhead Position.
What is the basic welding symbol?
Each welding position has its own basic symbol, which is typically placed near the center of the reference line (and above or below it, depending on which side of the joint it's on). The symbol is a small drawing that can usually be interpreted as a simplified cross-section of the weld.What is the best welding machine brand?
Top 10 Best Welder Brands- Lincoln Electric. Year of foundation: 1895.
- ESAB Welders. Year of foundation: 1904.
- Miller Electric. Virtually everyone has heard of the great Miller Electric welders.
- Hobart Welders. Year of foundation: 1917.
- LOTOS Technology.
- Everlast Welders.
- Eastwood.
- Forney.
What is the most common welding process?
Gas Metal Arc Welding (GMAW/MIG) This style of welding is also referred to as Metal Inert Gas (MIG). It uses a shielding gas along the wire electrode, which heats up the two metals to be joined. This method requires a constant voltage and direct-current power source, and is the most common industrial welding process.What are the 5 basic types of welding joints?
Five types of welded joints are butt joint, corner joint, lap joint, tee-joint and edge joint.- Butt joint: In Butt welded type, the parts lie in the same plane and are joined at their edges.
- Corner joint:
- Lap joint:
- Tee-joint:
- Edge joint:
