Abstract: It is well known that a three-phase induction motor will continue to operate when a disturbance of some sort causes the voltages supplied to the motor to become single-phase. The single-phasing can occur as a result of a fuse blowing or protective device opening on one phase of the motor.
Keeping this in consideration, what happens if there is single phasing of a three phase motor?
This is called phase failure or single phasing. If a three-phase motor is operating and loses one of the phases, the motor will continue to operate at a reduced speed and experience vibrations. The current will also increase considerably in the remaining phases, causing an internal heating of the motor components.
Additionally, what is single phasing and its effect? Single phasing is a power supply-related electrical fault in case of an induction motor. It occurs when one of the 3 phase circuits in a three-phase motor is opened; hence the remaining circuits carry excess current.

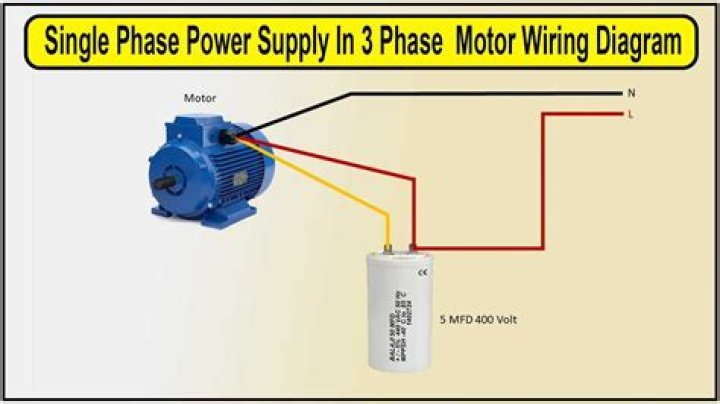

Similarly one may ask, can a 3 phase motor be converted to single phase?
Running a three phase motor on single phase power is simple. First you'll need to invest in a variable frequency drive. Essentially all you need to do is wire the single phase power to the input side of your variable frequency drive and then wire the three phase power of your motor to the output section of the drive.
What causes a 3 phase motor to burn out?
The complete insulation burning out on all phases of the three-phase winding is caused by motor overload. Under or overvoltages cause the same type of failure. Picture number 7: The complete insulation burn out on all phases is normally caused by high currents in the stator winding due to locked rotor.
Related Question Answers
How can you tell if a motor is 3 phase?
3 phase motors will have 3 power wires (usually labeled L1, L2, L3) while single phase will only have two wires and a ground.How do you check windings on a 3 phase motor?
Check the motor winding resistance or ohms reading using a multimeter or ohmmeter for phase to phase terminal ( U to V,V to W ,W to U ). The ohms reading for each winding must be the same (or nearly the same). Remember that the three phases have identical windings or nearly so!How do you check electric motor windings?
If the shaft turns freely, set the multimeter to its ohms function to check resistance. The windings (all three in a three-phase motor) should read low but not zero ohms. The smaller the motor, the higher this reading will be, but it should not be open.How do you test if a motor is working?
With a multimeter set to low ohms (usually 200), test between each winding terminal and the metal casing of the motor. If there is any reading on any of these then the motor is bad, do not use it. You may find that when it runs ungrounded that the casing becomes live at up to supply voltage.What happens if you lose one phase power?
Answer: When one phase of a three-phase system is lost, a phase loss occurs. This is also called 'single phasing'. Under phase loss conditions motors, pumps, blowers, and other equipment draw excessive current on the remaining two phases which quickly overheats the motor windings.What is the difference between a single phase motor and a three phase motor?
Single phase AC motors usually operate on a single phase source of power while 3 phase AC motors operate on a three phase source of power. Three phase alternating current power motor is economical to supply power to data center since it requires less conductor material to supply electricity.What is single phasing preventer?
Single Phasing Preventer is used for protection and burnouts of pumps and motors against phase unbalance, missing and negative phase sequence. The relay resets automatically and remains off when a voltage is low zero, unbalanced or negative phase sequence.How do you check motor overload?
Overload Protection Test:- Measure the normal motor running current (i motor).
- Turn off the motor and let it cool for about 10 minutes.
- Calculate the following ratio: i (motor) / i (overload min FLA).
- Set the overload to its minimum FLA and turn on the motor.
- Wait for the overload to trip.
Can I run a 3 phase motor on 220?
The single phase to 3 phase VFD is the best option for a 3 phase motor running on single phase power supply (1ph 220v, 230v, 240v), it will eliminate the inrush current during motor starting, make the motor run from zero speed to full speed smoothly, plus, the price is absolutely affordable.Can you get 3 phase power in your house?
The good news is that the technology is now much more readily available and can be used in homes. The 3-phase power works with three alternating currents that are separated uniformly in phase angle. The three phases share a common leg, neutral in the installations.Can a 3 phase motor run on 2 phases?
Yes , it will run but short period of time. because if a three phase motor is running and suddenly one phase becomes opened, the motor will still run but at reduced efficiency. if you try to start a three phase motor in two phases that will not work.How do you wire a 3 phase motor?
Connect motor leads 8 and 5 together. Connect motor lead 1 to the black L1 conductor. Connect motor lead 2 to the red L2 conductor. Connect motor lead 3 to the blue L3 conductor.How do you know if its single phase or three phase?
The circuit break named 'Main Switch' is how you will identify what phase power is available. If there is a single circuit breaker (as per image below) this is single (1) phase power. If there are three circuit breakers joined together by one switch (as per image below) this is three (3) phase power.Can a 3 phase motor run on 230 volts?
You can run a 3 phase motor from standard 220 Single phase power. First, you get the 3 phase motor turning it (manually, or better, with a small 110 v motor), and THEN turn on the 220 (connected to two legs) it will run.What is a three phase motor?
Three-phase motors are a type of AC motor that is a specific example of a polyphase motor. These motors can be either an induction motor (also called an asynchronous motor) or a synchronous motor. The motors consist of three main components – the stator, the rotor, and the enclosure.How does a single phase AC motor work?
Single phase motors work on the same principle as 3 phase motors except they are only run off one phase. A single phase sets up an oscillating magnetic field that goes back and forth rather than a rotating magnetic field (see bottom figure). Because of this a true single phase motor has zero starting torque.What is 3 phase electrical supply?
Three-phase power is a three-wire ac power circuit with each phase ac signal 120 electrical degrees apart. Residential homes are usually served by a single-phase power supply, while commercial and industrial facilities usually use a three-phase supply.What is single phase preventer diagram?
Basically, a Single Phasing Preventer works like a switch, but it automatically closes the circuit in normal condition and opens the circuit in the fault condition that is single phasing. For better understanding see the below circuit diagrams. There two circuit diagram is given.What is the most common cause of motor failure?
Low ResistanceThe most common cause of motor failure, and arguably the most difficult to overcome, is low resistance. Low resistance is caused by the degradation of the insulation of the windings due to conditions such as overheating, corrosion, or physical damage.
