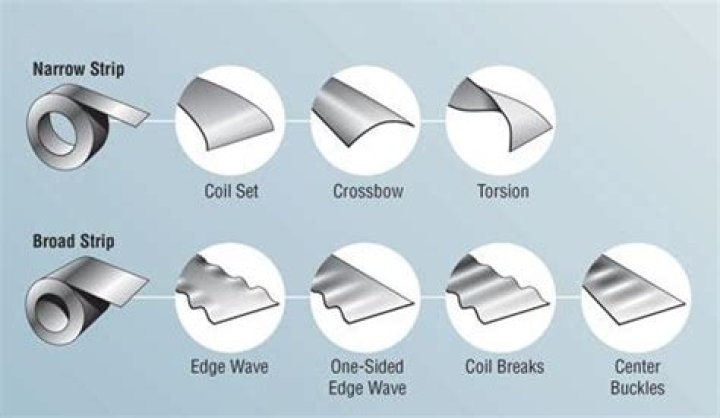

What causes Coil Breaks? Coil Breaks are caused by the phenomenon of “yield point elongation” or “elongation at the yield point” which is inherent in low carbon steel. Localized yielding occurs at the point of unbending when the strain exceeds the yield point of the material. This is what Coil Breaks are.
Moreover, how are steel coils made?
To convert coils into cold-formed steel framing members, they are first slit into widths that match the intended dimensions of the final product. The slit coils of cold-formed steel are formed into C-sections and other shapes usually by roll forming the steel through a series of dies.
One may also ask, what is a metal coil? Steel coil- a finished steel product such as sheet or strip which has been wound or coiled after rolling. Cold-rolled steel is a more highly finished product and has a smoother surface, greater dimensional accuracy (thickness, width, length) and greater strength.
Also know, what are metal coils used for?
Metal coils in the form of sheet, strip, or wire, are a material used across a wide range of industries, such as automotive, construction, container manufacturing, tools, machinery, food and beverage and electronics.
How much does a coil of steel weigh?
Each coil usually weighs between about 7 to 15 tons depending on the length and thickness of the plating. Coils weighing up to 30 tons are not altogether uncommon.
Related Question Answers
What process makes steel?
Steel making process. Steel is produced from iron ore or scrap. There are two main processes for producing steel: by means of a blast furnace (= indirect reduction) in combination with a converter, or by means of an electric furnace. In the former process, iron ore is the main raw material.How is steel made step by step?
The Six Steps of Modern Steel Manufacturing- Making the Iron. To create pure steel, the products that go into it- lime, coke and iron ore- must be made into iron.
- Primary Steel Making. To get the impurities out, the molten metal is infused with scrap steel.
- Secondary Steel Making.
- Continual Casting.
- Primary Forging.
- Secondary Forming.
How sheet metal is manufactured?
Sheet metal is made by taking a large cast ingot and rolling it into a long ribbon of the desired thickness. This long, flat piece of metal is then rolled into a coil and sent directly or cut into sheets before being sent to a machine shop.How can you tell if steel is cold rolled?
Look at the color and the finish. Hot rolled steel always has a rough blue-gray finish, while cold rolled steel has a smooth gray finish. This is because hot rolled steel takes a considerably longer amount of time to process.Why is cold rolled steel more expensive?
Price: Because of its advantages over hot rolled steel, cold rolled steel is more expensive. Also, because cold rolled steel is tougher to manipulate, it's takes more time and can cost more to take it through similar processes.Where is cold rolled steel used?
Applications for Cold Drawn Steel in Industry Cold drawn steel products are used in production of machined parts, automotive motor parts, shafting, and fabricated structural units. Cold drawn steel, like cold rolled steel, is also provided in near net and net shaped profiles.What is the difference between hot and cold rolled steel?
Customers often ask us about the differences between hot rolled steel and cold rolled steel. Hot rolled steel involves rolling the steel at high temperatures, where cold rolled steel is processed further in cold reduction mills where the material is cooled followed by annealing and/or tempers rolling.How hard is cold rolled steel?
Cold worked steels are typically harder and stronger than standard hot rolled steels. Cold rolled steel is essentially hot rolled steel that has been through further processing. Once hot rolled steel has cooled, it is then re-rolled at room temperature to achieve more exact dimensions and better surface qualities.How do you calculate the weight of a steel coil?
The approximate coil weight can be determined by measuring the Outside Diameter (OD), Inside Diameter (ID), and the Width.How do you calculate coil length?
To obtain the coil length we have to divide the result by the section of the coil determined by coil width and thickness. The coefficient 1000 is used to compensate the dimensions in [mm] with the length in [m]. For example, a coil with OD = 1600mm, ID = 508mm and T = 0,6mm results in a length of 3010 meters.What is better cold rolled or hot rolled steel?
In terms of physical characteristics, cold rolled steels are typically harder and stronger than standard hot rolled steels. As the metal is shaped at the lower temperatures, the steel's hardness, resistance against tension breaking, and resistance against deformation are all increased due to work hardening.Why does cold rolling increase hardness?
Cold rolling is a process which passes metal through rollers at temperatures below its recrystallization temperatures. This increases the yield strength and hardness of the metal. This is done by introducing defects into the crystal structure of the metal creating a hardened microstructure which prevents further slip.What is a master coil?
Definitions. A wide roll of coiled steel from a steel mill which will be slit into multiple narrower coils.What is a coil coating?
Coil coating is a continuous, automated process for coating metal before fabrication into end products. The steel or aluminum substrate is delivered in coil form from the rolling mills.What is hot rolled coil steel used for?
Uses: Hot rolled products like hot rolled steel bars are used in the welding and construction trades to make railroad tracks and I-beams, for example. Hot rolled steel is used in situations where precise shapes and tolerances are not required.What is meant by helical spring?
Helical spring. A spring is defined as an elastic body, whose function is to distort when loaded and to recover its original shape when the load is removed. Helical springs. The helical springs are made up of a wire coiled in the form of a helix and are primarily intended for compressive or tensile loads.How long is a coil of steel?
For example, a steel coil with D = 7,81 kg/dm^3 and weight 3000 kg has a volume of 384dm^3 and a length of 2550 m.How much is a coil of steel?
