Plumbers and electricians are familiar with this system of color-coding and rely upon it for their own safety. Accordingly, white pipe denotes water, gray indicates electrical wiring, yellow is used exclusively for gas, and purple is now being used or recycled water.
Beside this, what Colour should electrical conduit be?
All insulating conduits shall be coloured light orange.
Similarly, can electrical conduit be painted? The NEC does not prohibit the painting of steel EMT or conduit, but it is important to maintain grounding continuity. But if you want to match exposed EMT or conduit to your specific paint color, we suggest you refer to the websites of paint manufacturers who post guidelines for painting galvanized products.

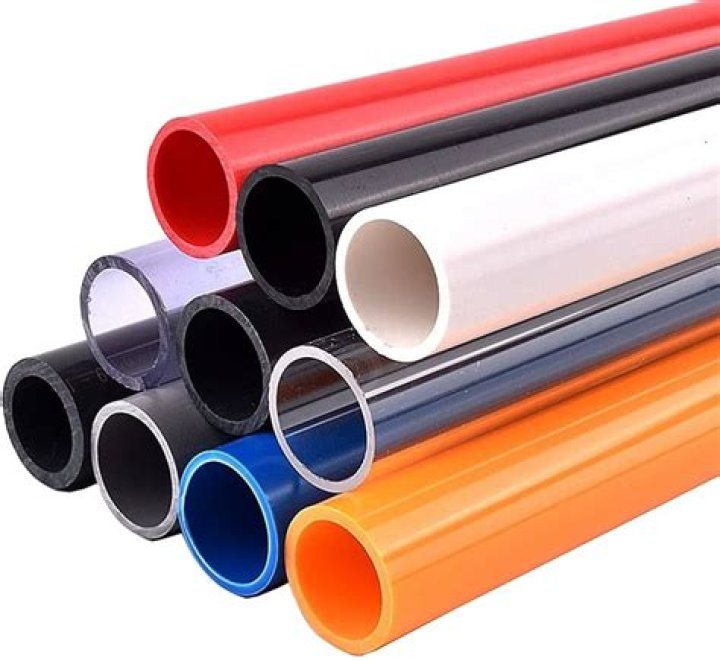

Similarly, you may ask, what color is conduit?
Common colored conduit applications are: Black and white — Architectural use. Red — Fire alarms systems. Green – Health care systems.
What are the different types of conduits?
There are seven different types of conduit used commonly in residential and light commercial wiring.
- Rigid Metal Conduit—RMC and IMC.
- Electrical Metallic Tubing—EMT.
- Electrical Non-Metallic Tubing—ENT.
- Flexible Metal Conduit—FMC and LFMC.
- Rigid PVC Conduit.
Related Question Answers
Is electrical conduit waterproof?
Only outdoor electrical conduit should be used outdoors. Water-resistant wire just resists water. It is not meant to be immersed in water. If your conduit or boxes fill up with water, it will short out and/or you will get leaks.What size is electrical conduit?
In most home construction jobs, conduit sizes of ¾-inch to 1½-inch are the most common sizes of conduits that are used. For most residential construction jobs, these sizes are adequate for protecting wiring that runs throughout the home from the main breaker box to lights, outlets, and switches.What conduit do I use for underground electrical?
PVC and Rigid conduits are typically used when installing underground electrical wiring. The depth for underground conduit is typically 18 inches, depending on the specific installation and project type. EMT and IMC conduits should not be used for underground electrical wiring installations.How many wires can you put in a 3/4 conduit?
Allowable Conduit Fill Capacities| Size and Type of Conduit | 14 AWG Wire | 8 AWG Wire |
|---|---|---|
| 1/2-inch EMT | 12 | 3 |
| 3/4-inch EMT | 22 | 6 |
| 1-inch EMT | 35 | 9 |
| 1 1/2-inch EMT | 84 | 22 |
Do you glue electrical conduit?
Anyone that says don't glue electrical conduit has NO idea what they are talking about. You do not need primer, but you absolutely need to glue it. Yes, water will get in, it's expected, but this is why we need to use wet rated conductors and cables.Can PVC water pipe be used for electrical conduit?
PVC pipe can be used in place of PVC conduit if the PVC pipe has been manufactured to meet safety requirements on flame and temperature resistance, but because PVC conduit isn't pressure tested, PVC conduit cannot replace PVC pipe. So, the answer is YES. A PVC pipe can be used for electrical conduit.Can you run rg6 next to electrical?
Don't Run Coax Too Close to Electrical Wiring Electrical lines can cause nasty interference in coaxial cable. So keep coax cables as least 6 in. away from electrical cable, even if the cables are separated by wood or other building materials.Can you use GREY conduit underground?
This Electrical Conduit is used for commercial and industry applications. Our PVC Electrical Conduit is four metres long and comes in two specifications – grey medium duty (MD) which is used for aboveground applications and orange heavy duty (HD) which is used for underground applications.What is Red conduit used for?
Hot galvanized steel using patented inline Flo-Coat process for long lasting exterior protection. E-Z Pull interior coating provides a smooth raceway for fast, easier wire-pulling. Excellent mechanical protection for conductors. Ductility for faster and easier bending.White EMT.
| Color | Red |
|---|---|
| Size | 1 1/2 |
| 2 | |
| 2 1/2 | |
| 3 |
Why is electrical conduit gray?
To prevent mishaps of this kind, the building code specifies gray plastic conduit as a means of easy identification, to protect workers from needless injury. Accordingly, white pipe denotes water, gray indicates electrical wiring, yellow is used exclusively for gas, and purple is now being used or recycled water.What is orange conduit used for?
The National Public Works Association recommends Orange for Telecommunication conduit in the underground. Red or Black with three Red stripes are typical for power applications.What color is for EMT?
True Color EMT is available in 8 vibrant colors to provide instant identification of multiple circuit systems.White EMT.
| Color | Green |
|---|---|
| Size | 1 1/2 |
| 2 | |
| * | |
| * |
Can EMT conduit be painted?
The NEC does not prohibit the painting of steel EMT or conduit, but it is important to maintain grounding continuity. The painting should be done after installation to maintain that continuity.Is EMT galvanized?
Electrical Metallic Tubing—EMT Another example of a rigid electrical conduit is EMT (electrical metal tubing), which is most commonly made of galvanized steel but can also be aluminum. EMT is also called "thin-wall" conduit because it is thin and lightweight, especially compared to RMC.Can white and gray PVC be glued together?
Yup, and they will glue (solvent weld) together just fine, but I'd splice in copper for a hose bib and use a frost-proof faucet. Make sure that you use the clear primer and have at it. PVC is PVC. the gray stuff is for non-potable water.Is GREY electrical conduit UV resistant?
Corrugated Electrical Conduit is a staple item used by electricians and other contractors for cost-effective cable protection. This grey solar corrugated conduit is classified as heavy duty with resistance to UV, making it perfect for solar applications.Can you use PVC conduit inside?
Nonmetallic conduit is typically made from PVC and is a good choice for outdoor residential applications. Blue electrical nonmetal tubing (ENT) is for indoor use only. Some code-compliant PVC fittings can be used with ENT inside walls, floors, some ceilings or encased in concrete.Can you paint PVC electrical conduit?
PVC conduit is made of a plastic-like material that is a bit lighter and easier to work with than EMT. Painting either type of conduit may be necessary to help it blend in with its surroundings (or to simply decorate the tubing to make it look better).Can you paint galvanized metal?
Galvanized metal is difficult to paint because it's coated with a layer of oil to prevent white rust. Alkyd and oil-based paints may seem to stick at first, but the oily layer eventually "sheds" the paint. Metal paint, preferably the same brand as the primer. Look for a brand specially designed for galvanized metal.How do you paint exterior conduit?
- Clean the PVC conduit with a commercial cleaner or degreaser.
- Prepare the conduit for painting by lightly sanding it with fine-grit sandpaper.
- Apply a coat of primer to the conduit using a paintbrush and latex primer designed to be used on plastics.
What paint will stick to PVC?
Use Krylon infusion spray paint for plastic or Rustoleum 2x spray paint for plastic. PVC will take paint. You would need to wipe down the pipe with mineral spirits to remove the print, oil, and grease from the manufacturing process. Lightly sand to remove any shine and roughen the surface.Can you paint galvanized conduit?
Never attempt to paint over a galvanized EMT conduit without abrading it with an etching primer, first, or the finish will peel. In addition, because metal is a nonporous surface, you will need to apply a special kind of primer that will abrade the conduit and allow the paint to stick.Can you paint metal electrical conduit?
Metal conduit, also known Electrical Metallic Tubing (EMT) is commonly made of stainless or galvanized steel. Painting either type of conduit may be necessary to help it blend in with its surroundings (or to simply decorate the tubing to make it look better).Can I spray paint galvanized pipe?
Galvanized metal is difficult to paint because it's coated with a layer of oil to prevent white rust. Alkyd and oil-based paints may seem to stick at first, but the oily layer eventually "sheds" the paint. Therefore, it's important to follow the correct procedure when painting galvanized metal.How do you prime galvanized metal?
There are primers specifically designed for galvanized metal.- Prepare your work area. You need a non-humid work area that is at least 70 degrees Fahrenheit and ventilated.
- Wipe the galvanized object clean with a wet rag.
- Spray the galvanized object, using even strokes.
- Allow the primer to cure for 12 hours.
What does electrical conduit look like?
Conduit is typically required where wiring is exposed or where it might be subject to damage. A conduit can be made of metal or plastic and may be rigid or flexible. All conduit is installed with compatible fittings (couplings, elbows, connectors) and electrical boxes, usually made of the same or similar material.How many wires can be in a conduit?
Allowable Conduit Fill Capacities| Size and Type of Conduit | 14 AWG Wire | 10 AWG Wire |
|---|---|---|
| 1/2-inch EMT | 12 | 5 |
| 3/4-inch EMT | 22 | 10 |
| 1-inch EMT | 35 | 16 |
| 1 1/2-inch EMT | 84 | 38 |
What is conduit wiring?
Conduit wiring is a system where the cables are enclosed in metal or plastic tubes . The conductors have insulation which is rated at the voltage required but gives no mechanical protection.What is conduit wiring and its types?
The term "electrical conduit" refers to durable tubing or other types of enclosure used to protect and provide a route for individual electrical wiring conductors. All conduit is installed with compatible fittings (couplings, elbows, connectors) and electrical boxes, usually made of the same or similar material.Is electrical conduit PVC?
Polyvinyl chloride, or PVC, is a versatile material used for a variety of applications, from drain pipes to fencing and even inflatable boats. PVC pipe alone has many uses, with most falling broadly into the categories of either plumbing applications or electrical conduit applications.Do you need conduit in walls?
Smaller cables shall be run either through bored holes in joists or on running boards. So basically if the cable is on the ceiling, it does not require conduit. If the cable is run along walls, it requires some form of protection. This protection can be conduit, or some other form of protection.What is a conduit person?
A conduit, in esoterism, and spiritual discourse, is a specific object, person, location, or process (such as engaging in a séance or entering a trance, or using psychedelic medicines) which allows a person to connect or communicate with a spiritual realm, metaphysical energy, or spiritual entity, or vice versa.What are the types of wire?
Color Codes – Different color wires serve different purposes, like:.- Black : Hot wire, for switches or outlets.
- Red : Hot wire, for switch legs.
- Blue and Yellow : Hot wires, pulled in conduit.
- White : Always neutral.
- Green and Bare Copper : Only for grounding.
