A T-beam is a structural element able to withstand large loads by resistance in the beam or by internal reinforcements. The upright portion carrying the tension of the beam is termed a web or stem, and the horizontal part that carries the compression is termed a flange.
Furthermore, why flanged beam is provided?
1. Since the beam is cast monolithically with the slab, the flange also takes up the compressive stresses which mean, it will be more effective in resisting the sagging moment acting on the beam. 2. Better head room, this is direct outcome of the first point since the depth of the beam can be considerably reduced.
Also Know, what are the types of flange beam? Different Types and Uses of Steel Beams
- I-Beam: These steel beams are shaped like the capital letter 'I', just as the name implies.
- W-Beam: These are similar to I-beams and they are also called as 'wide flange' beams.
- H-Beam: These are generally heavier and longer than I-beams.
- Channels:
In this way, what is flanged beam in RCC?

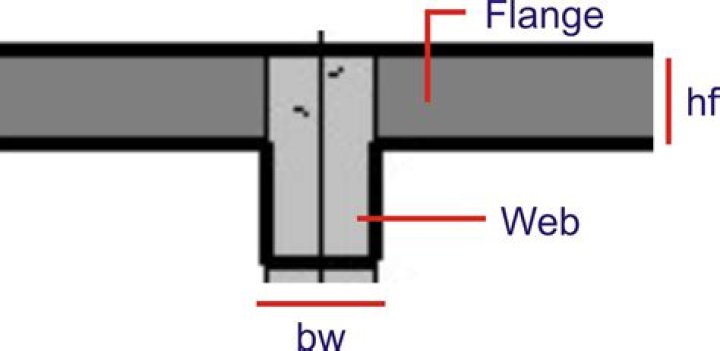

2.11. The portion of the slab which acts integrally with the beam to resist loads is called as Flange of the T-beam or L-beam. The portion of the beam below the flange is called as Web or Rib of the beam.Nov 18, 2017
What is flange in steel beam?
Let's start with the basics: The horizontal pieces are known as flanges, and the vertical piece is called the web. The flanges resist bending while the web takes on the shear force. An I-beam has tapered flanges with a narrower flange than most wide flange beams, making it a lighter building material.
Related Question Answers
What are flanged sections?
The top of the T-shaped cross section serves as a flange or compression member in resisting compressive stresses. The web (vertical section) of the beam below the compression flange serves to resist shear stress and to provide greater separation for the coupled forces of bending.Why flanged beams are preferred over rectangular beam?
T-beams are generally preferred to rectangular beams and L-beams. The compressive load on the slab is shared by the flange of the T-beam (because it is cast monolithically with the slab), which increases the moment of resistance. This also reduces the need for additional compression reinforcement at the top.Jul 19, 2020What are the types of beam?
Types of beam- 2.1 Universal beam.
- 2.2 Trussed beam.
- 2.3 Hip beam.
- 2.4 Composite beam.
- 2.5 Open web beam.
- 2.6 Lattice beam.
- 2.7 Beam bridge.
- 2.8 Chilled beam.
What are the advantages of I beam?
Its characteristics are as follows:- Wide flange and large lateral stiffness.
- Compared with general section steel, it has the advantages of low cost, high precision, low residual stress, no expensive welding materials and weld detection, and saves about 30% of the manufacturing cost of steel structure.
What is singly reinforced beam?
The beam that is longitudinally reinforced only in tension zone, it is known as a singly reinforced beam. In Such beams, the ultimate bending moment and the tension due to bending are carried by the reinforcement, while the compression is carried by the concrete.Under which conditions a beam can act as a flanged section?
1 a, b and c). Due to monolithic casting, beams and a part of the slab act together. Such beams having slab on top of the rectangular rib are designated as the flanged beams - either T or L type depending on whether the slab is on both sides or on one side of the beam (Figs. 5.10.What is a isolated beam?
2. Isolated T-Beams: An Isolated T-Beam is such type of beam in which flange of T- Beam not connected with the slab. In this type of beam T-Beam and slab didn't cast at same time. Page 3 of 12 Notations for T-Beam: cbc = Allowable stress in concrete in bending in compression in direct stress.What is a beam construction?
In building construction, a beam is a horizontal member spanning an opening and carrying a load that may be a brick or stone wall above the opening, in which case the beam is often called a lintel (see post-and-lintel system).What is rib of T-beam?
The beam consists of a flange and a rib in the form of a T, generally made of RC concrete or metal is known as T-beam. The top part of the Slab which acts along the beam to resist the compressive stress is called flange. The part which lies below the slab and resists the shear stress is called rib.What is T beam bridge?
Tee beam bridges have cast-in-place, reinforced concrete beams with integral deck sections to either side of the tops of the beams. In cross section the beams are deeper than their deck sections, which produces the T-shape that gives them their names.Jul 15, 2020Where are T beams provided?
Tee beam is mostly used in the construction sector. A tee beam is mostly a load-bearing structure made up of reinforced concrete or wood, or metal with a T-shaped cross-section. The top portion of the T-shaped cross-section is a compression resisting member. Thank You.Aug 2, 2020What is limit state method?
Limit state design (LSD) refers to a structural engineering design method. A degree of loading or other actions imposed on a structure can result in a 'limit state', where the structure's condition no longer fulfils its design criteria, such as; fitness for use, structural integrity, durability, and so on.Sep 4, 2020What is development length?
A development length can be defined as the amount of reinforcement(bar) length needed to be embedded or projected into the column to establish the desired bond strength between the concrete and steel (or any other two types of material).Feb 19, 2010What is effective flange width?
In elastic stress analysis, the total effective flange width beff is. theoretically defined as the width of the slab that has a constant. stress distribution max equal to the maximum value of the actual. stress distribution .What are L beams used for?
Because of their minimal structural depth, L-shaped angle beams are reliably stable and are therefore commonly used to anchor a flooring system to a building's foundation.Jan 21, 2020How do you calculate beam flange?
Interior beams have flanges on both sides and are termed as T-beams, while edge beams have flanges on one side and are called L-beams.Find effective flange width (be), which is the smallest of the following:
- Span/4= 7500/4= 1875 mm.
- bw +16hf= 275+16*75= 1475 mm.
- Center-to-center spacing of beams= 1200 mm.
