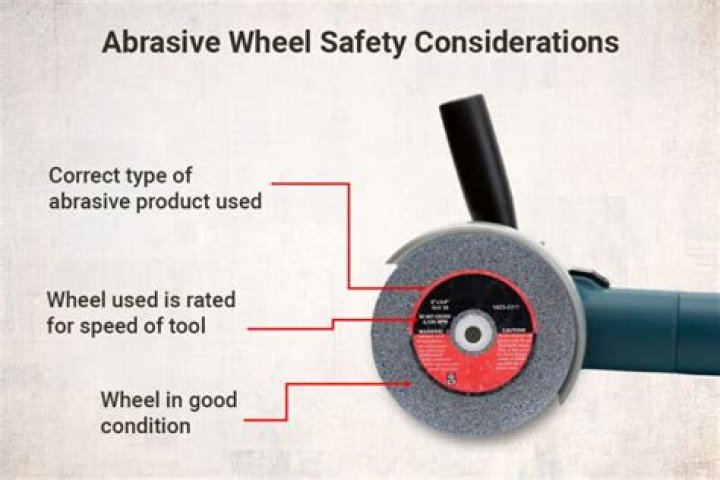

Specification. A series of numbers and letters make the wheel specification – e.g. A16 R 5 B S4. These numbers symbolize the abrasive wheel material, grit size, grade, structure and the bond type.

Considering this, what do the numbers on a grinding wheel mean?

The type of the wheel is marked as an ISO number and signifies the wheel's shape. For example, ISO Type 52 is a spindle-mounted wheel. The size of the grinding wheel is marked as dimensions in mm. For example, 230 x 3 x 22.2mm. This represents the wheel's diameter x thickness x hole size.

Additionally, which symbol in the marking code on a grinding wheel indicates the bond grade? The 36 represents the grain size. The L shows the wheel grade or also called degree of hardness, which is medium. And the V refers to the bond type.

Moreover, how do you read a cutting wheel specification?

How to Read a Grinding Wheel Spec

  1. What does the rest of the description mean after the size?
  2. T-1 means the grinding wheel is flat.
  3. Vitrified is the bonding of grinding wheel;
  4. A36 - A means it is an aluminum oxide grinding wheel and the 36 means the grinding wheel is composed of a medium grain size also known as grit.
  5. A/O also means aluminum oxide;

At what speed are Colour coded stripes displayed on the wheel?

50 m/s

Related Question Answers

What is grinding wheel specification?

Diamond/CBN grinding wheels (super abrasive wheels) can be applied to various specifications by combining "abrasive grain (abrasive grain type)", "grain size (abrasive grain size)", "bond strength", "degree of concentration (grain concentration in bond)", and "bond type (bonding material)".

How a grinding wheel is selected?

The abrasive aggregate is selected according to the hardness of the material being cut. Grinding wheels with diamond or CBN grains are called superabrasives. Grinding wheels with aluminum oxide (corundum), silicon carbide, or ceramic grains are called conventional abrasives.

What is the most common cause of incidents involving abrasive wheels?

RoSPA's accident statistics tell us that nearly half of all accidents involving abrasive wheels occur due to an unsafe system of work or operator error. If you work with abrasive wheels it's therefore essential that you follow safe work practices at all times in order to avoid accidents, injuries and ill-health.

Do grinding wheels expire?

It may be true under ideal storage conditions Resinoid Bonded grinding wheels can survive without any degradation in strength for well over two years.

What is the process of grinding?

Grinding is an abrasive machining process that uses a grinding wheel as the cutting tool. A wide variety of machines are used for grinding: Handheld power tools such as angle grinders and die grinders.

What is a Type 27 Grinding Wheel?

The Type 27 grinding wheels are a very popular group of general purpose and specialized abrasive tools intended for rough grinding on various materials. Most frequently they are operated at angles 20-35° and 90° when required by grinding requirements.

What are the two main types of bonding agent for abrasive wheels?

An abrasive wheel is a wheel, cup or cone consisting of abrasive particles bonded together with various substances. There are two main types of bonding agent, inorganic and organic. Only organic-bonded wheels should be used for portable and hand-held grinding machines.

What is grade of grinding wheel?

Grade: The term "grade" as applied to a grinding wheel refers to the tenacity or hardness with which the bond holds the cutting points or abrasive grains in place. It does not refer to the hardness of the abrasive grain.

What is the use of grinding wheel?

A grinding wheel is basically a precision tool composed of abrasive grains held together by a bonding material. The abrasive grains provide the wheel with its cutting ability which helps in finishing the material to the required dimensional accuracy and surface finish.

What is a Type 1 cutting wheel?

Type 41 Wheel (formerly Type 1A cutting wheel) – A disc shaped wheel intended for cutting by the periphery of the wheel used with abrasive cut off machines or angle grinders fitted with the appropriate guard.

How many types of grinding wheels are there?

7 Types

Why should you take care to switch off the coolant before the abrasive wheel is stopped?

Wait for the wheel to reach maximum speed before using it as there may be unseen faults in the wheel. Stand to one side of the wheel before starting the grinder. Turn off coolant before stopping the wheel to avoid creating an out-of-balance condition.

Which legislation covers the use of a grinding wheel?

Abrasive Wheels Regulations

Abrasive Wheels are used in many areas and can be highly dangerous if used by untrained personnel. The Provision and Use of Work Equipment Regulations 1998 requires that anyone involved in mounting, dressing or setting abrasive wheels is trained and certified.

What angle should you use an angle grinder at when grinding a flat surface?

For surface grinding, use the flat part of the wheel, maintaining a 20°-30° angle between the tool and the work surface. Position the blade guard at the back towards your body. Use a smooth back and forth motion to guide the flap disc over the material.

What is a white grinding wheel used for?

The Norton White Aluminum Oxide Grinding Wheel is the standard for grinding cutting tools such as chisels and plane irons. Unlike the gray wheels that come with most bench grinders, these wheels help keep your tool much cooler. By running cooler, your tool doesn't overheat and weaken your cutting edge.

What are the five principal parameters of a grinding wheel?

The parameters are (1) abrasive material, (2) grit size, (3) bonding material, (4) wheel structure, which refers to the relative spacing of grains, and (5) wheel grade, which refers to the bond strength of the wheel in retaining abrasive grains.

Which bond is commonly used in grinding wheel?

Resin bond

What is the difference between cutting wheel and grinding wheel?

Yes, the difference is the thickness of the disc. A cutting disc will be thinner than a grinding disc. The 4-1/2" x 1/8" disc you have should work well. Typically the grinding discs are at least 1/4" thick.

Why do grinding wheels explode?

An under-rated, worn, damaged, or clogged grinding wheel can fracture and explode – releasing tremendous amounts of energy in the form of high-hardness shrapnel.

Why is grain spacing important in grinding wheels?

17) Why is grain spacing important in grinding wheels? Grain spacing determines the size of chip cavities and the number of cutting edges. In creep feed grinding, the feed is slow yet the material to be removed is far greater.

Is abrasive wheel training mandatory?

Under the 'Use of Work Equipment Regulations 1998' and the 'Abrasive Wheels Regulations 1970' those who operate Abrasive Wheels must have sufficient training. This training must certify competence and not just attendance.

What is an abrasive wheel?

Abrasive wheels: Are cutting tools consisting of abrasive grains, held together by organic or inorganic bonds. Diamond and reinforced wheels are included. Organic wheels:Bonded by an organic material.

Which wheel is used for grinding tough materials?

For example, aluminum oxide or zirconia alumina should be used for grinding steels and steel alloys. For grinding cast iron, non-ferrous metals and non-metallic materials, select a silicon carbide abrasive. Hard, brittle materials generally require a wheel with a fine grit size and a softer grade.

What should you do before mounting an abrasive wheel?

The wheels must fit freely on the spindle. Test wheel and machine by running it at operating speed in a protected area at least one minute before grinding. Wear all necessary personal protective equipment such as eye, face, hearing and respiratory protection, gloves, arm guards, and safety shoes.

How often should abrasive wheel training be given?

This certificate does not have an expiry date. However, based on industry best practice guidelines, the recommended renewal period for this training is 3 years. We will print this recommended renewal date on your certificate.

How long does abrasive wheels last?

3 years

Which 2 components of an abrasive wheel determine how quickly the wheel wears out?

The wheel speed depends several factors, some of which included the grindability of the wheel, the shape of the part, and the material of the workpiece.

What test should be performed on abrasive wheels?

Abrasive grinding wheels must be inspected carefully and the spindle speed checked before mounting to avoid improper mounting and to prevent the exploding of used wheels that may cause an injury. Blade guards must automatically adjust to the thickness of the stock of the material being processed.
