Regarding this, whats is an orifice?
: an opening (such as a vent, mouth, or hole) through which something may pass an anatomical orifice the nozzle orifice the cone built up from the cinders around the eruption orifice— R. H. Mohlenbrock.
Also Know, what is orifice and its types? Orifice is defined as the small opening on side or bottom of a tank through which any kind of fluid is flowing. The opening can be of circular, triangular or rectangular in cross section and they are named on the basis of shape accordingly. Orifices are mainly used for measuring the rate of fluid flow.
Consequently, what is the function of the orifice?

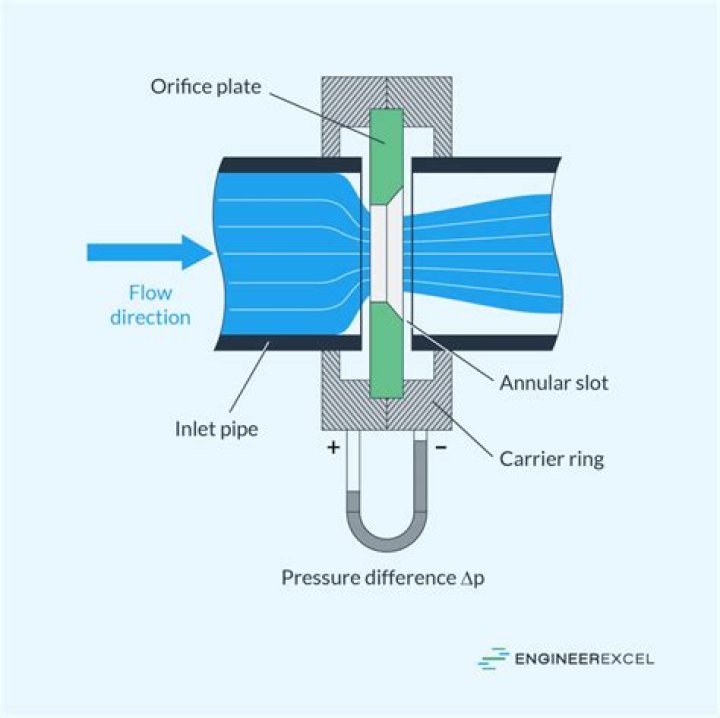

An orifice plate is a device used for measuring flow rate, for reducing pressure or for restricting flow (in the latter two cases it is often called a restriction plate ).
Is orifice a mouth?
An orifice is an opening or a hole, most often in the body, such as your mouth or your nostril.
Related Question Answers
Why orifice is needed in our daily life?
Applications of Orifice MeterIt is used to measure the flow rate of fluids in their single state (i.e. gaseous state or liquid state). It can also be used to measure the flow rate of fluids in a mixed state (both gaseous and liquid states) such as, wet steam, or natural gas with water.
What is orifice size?
In general, an orifice plate will typically exhibit a bore diameter between around 30 to 75% of the pipe inside diameter. A beta ratio of 0.6 therefore exhibits that the orifice bore diameter is 60% of the pipe inside diameter.How many orifice do humans have?
There are seven natural body openings or orifices providing access to an internal cavity through a natural passage called a canal, duct or meatus.What is another word for Orifice?
In this page you can discover 19 synonyms, antonyms, idiomatic expressions, and related words for orifice, like: opening, cleft, crack, hole, aperture, inlet, mouth, outlet, pore, slit and slot.Is the nose a body orifice?
External. In a typical mammalian body such as the human body, the external body orifices are: The nostrils, for breathing and the associated sense of smell. The ear canals, for the sense of hearing.Is orifice a medical term?
Orifice: An opening.What do you understand by free orifice?
8.1 Free Flow OrificeOrifices used in measurement of irrigation water are commonly circular or rectangular in shape and are generally placed in vertical surfaces, perpendicular to the direction of channel flow. The section where contraction of the jet is maximal is known as the vena contracta.
How does AC orifice tube work?
An orifice tube has no moving parts and contains a permanent restriction within the system. The orifice tube systems control the refrigerant flow through other means, such as cycling the compressor on and off, or the use of a refrigerant regulating valve within the compressor itself.What are the different types of orifice plates?
Three kinds of orifice plates are used: concentric, eccentric, and segmental (as shown in Figure F1). The concentric orifice plate is the most common of the three types.Does an orifice reduce flow?
An orifice affects flow rate (volume) down, and pressure up, as it decreases in diameter. Vice versa, it increases volume, while dropping in pressure and velocity. It is important to define flow rate more specifically, e.g, volume of flow or velocity of flow.How do I choose an orifice size?
Divide the flow of the liquid by the velocity of the liquid to determine the area of the orifice in square feet. In the above example, you would divide 8 by 2. The total area of the orifice would be 4 square feet.Does an orifice increase pressure?
A smaller upstream orifice prevents sufficient liquid flow to achieve higher pressure. The result is an increase of the back pressure on the orifice. If more nozzle(s) become clogged, the pressure on the exit side of the orifice will increase accordingly with the only limit being the supply pressure to the orifice.What is the purpose of restriction orifice?
Restriction Orifice vs Orifice Plate| Restriction Orifice | |
|---|---|
| Purpose | Used for killing the high pressure or reducing pressure; a pressure reducing device. |
| Hole Profile | The hole of the restriction orifice has a straight profile |
| Pressure Drop | High Pressure drop |
| Fluid Velocity | Sonic Velocity to ensure choked flow. |
How do I know if my orifice tube is bad?
Symptoms of a Bad or Failing Expansion Valve (Orifice Tube)- AC system performing worse than usual and blowing warm air. One of the first symptoms of a problem with the AC expansion valve or orifice tube is an underperforming AC system.
- Frost on AC evaporator or coming from the vents.
- AC compressor constantly running.
