Subsequently, one may also ask, what is Sectoring in wireless communication?
In cell sectoring a single omni-directional antenna at base station is replaced by several directional antennas, each radiating within a specified sector. The technique for decreasing co-channel interference and thus increasing system performance by using directional antennas is called sectoring.
Secondly, what is the purpose of cell Sectoring? One way to increase the capacity of a cellular network to make up for the increasing number of subscribers is to replace the omni-directional antenna at the base station with a number of directional antennas. This method is called cell sectoring.
Likewise, what is meant by cell splitting and Sectoring?
Cell splitting is a method of subdividing cell into the smaller sized cell. Cell sectoring is another method to increase capacity. It keeps the radius of the cell constant and decreases the co-channel reuse ratio D/R to reduce the cluster size N.
What do you mean by cell splitting?
Cell splitting is a means of increasing the capacity of a cellular system by subdividing or splitting cells into two or more smaller cells.
Related Question Answers
What is the difference between cell and sector?
The cell site is a location or a point; the cell is a wide geographical area. So in effect, sectors and cells are the same thing in a three-sector situation. However, this cells and sectors terminology will be challenged as the industry deploys new antenna technology for systems like LTE and 4G.What are the types of handoff?
The handoffs are of following types:- Hard Handoff.
- Soft Handoff.
- Queued Handoff.
- Delayed Handoff.
- Intersystem Handoff.
- Intrasystem Handoff.
- Network controlled Handoff (NCHO)
- Mobile Assisted Handoff (MAHO)
What is handoff in mobile communication?
Handoff is the process of changing the channel (frequency, time slot, spreading code, or combination of them) associated with the current connection while a call is in progress. It is often initiated either by crossing a cell boundary or by a deterioration in quality of the signal in the current channel.What is full GSM?
The Global System for Mobile Communications (GSM) is a standard developed by the European Telecommunications Standards Institute (ETSI) to describe the protocols for second-generation (2G) digital cellular networks used by mobile devices such as mobile phones and tablets.What do you mean by Sectoring?
n. 1. a part or subdivision, esp of a society or an economy: the private sector. 2. ( Mathematics) geometry either portion of a circle included between two radii and an arc.What is system capacity in wireless communication?
System capacity is formally defined as the maximum of the product of the number of users per cell times the user spectral efficiency for a given maximum outage probability.What are the advantages of cell splitting?
Advantages of cell splitting :It improves the S/N ratio. It reduces interference which increases capacity. It reduces the cluster size. System capacity gradually expands as demand.
What are the types of cell splitting techniques?
There are two kinds of cell-splitting techniques: a. Permanent splitting: Each new split cell is planned ahead of time with consideration of the number of channels, transmitted power, assigned frequencies, selection of the cell-site and traffic load consideration.Why the shape of cell is not circle?
Why the shape of cell is not circle? Explanation: Circle is the first natural choice to represent the coverage area of a base station. But while adopting this shape, adjacent cells cannot be overlaid upon a map without leaving gaps or creating overlapping regions.What is dynamic cell splitting?
Dynamic cell splitting: This technique is based on utilizing the allocated spectrum efficiency in real time. In this of splitting techniques cells are not splitted permanently depending on requirement of traffic the splitting of the cells are carried out.How is capacity increased by cell Sectoring?
B) SECTORING: This is another method to increase cellular capacity and coverage by keeping cell radius unchanged and decreasing D/R ratio. In this approach, capacity improvement is achieved by reducing the number of cells in a cluster and thus increasing the frequency reuse.Why cell splitting and Sectoring are very important for cellular network design?
Cell splitting increases the capacity of a cellular system since it increases the number of times that channels are reused. The increased number of cells would increase the number of clusters over the coverage region, which in turn would increase the number of channels, and thus capacity, in the coverage area.Which technique avoids the cell splitting?
Explanation: The advantage of the zone cell technique is that co-channel interference in the cellular system is reduced since a large central base station is replaced by several low powered transmitters on the edges of the cell. Thus, signal quality is reduced and it leads to an increase in capacity.What is co-channel interference in mobile communication?

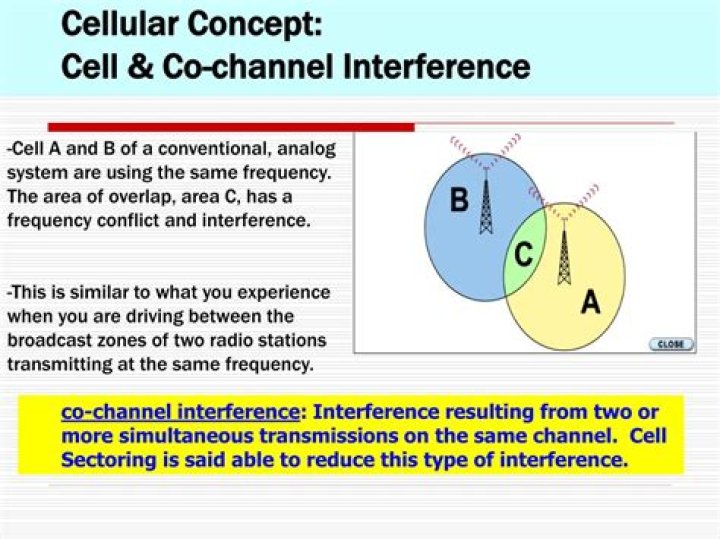

Co-channel interference or CCI exists when two or more devices are operating on the same frequency channel. It hinders the performance by increasing the wait time as the same channel is used by different devices.What is umbrella cell approach?
Umbrella cell approach in mobile communicationThe smaller cell is grouped and assumed to be under a large cell. This method called as an umbrella cell concept. It can be used to provide a large area to high-speed users while small area coverage to users that travel at low speeds.
Where and why the microcell zones are used?
Since a given channel is active only in a particular zone in which mobile is travelling, base station radiation is localized and interference is reduced. The advantage of zone cell technique is that while the cell maintains a particular coverage radius, co-channel interference in the cellular system is reduced.Whats is a cell?
A cell is a mass of cytoplasm that is bound externally by a cell membrane. Usually microscopic in size, cells are the smallest structural units of living matter and compose all living things. Most cells have one or more nuclei and other organelles that carry out a variety of tasks.How the Sectorization is possible in a cellular network?
One way to increase to subscriber capacity of a cellular network is replace the omni-directional antenna at each base station by three (or six) sector antennas of 120 (or 60) degrees opening. Each sector can be considered as a new cell, with its own (set of) frequency channel(s).Why cellular concept is used for mobile telephony?
The cellular concept was invented in solving the spectral congestion and user capacity. To accommodate a large number of users over a large geographic area, the cellular telephone system uses a large number of low-power wireless transmitters to create cells.What is the system capacity?
System capacity is formally defined as the maximum of the product of the number of users per cell times the user spectral efficiency for a given maximum outage probability.How does Sectoring reduce interference?
ABSTRACT : In this work, cell sectoring is used to reduce cochannel interference in the reverse link of a wireless cellular network. The advantage that the number of interfering mobiles decreases with respect to the increase in the number of sectors is taken to sectorize a cell with 120 degrees opening per sector.What is C i in telecom?
C/I: Carrier-to-Interference ratioCarrier-to-Interference ratio (C/I) is the ratio of power in an RF carrier to the interference power in the channel.
