Considering this, why is CO2 used in supercritical fluids?
Carbon dioxide (CO2) is the most widely used supercritical fluid. This is because CO2 is cheap, chemically inert, non-toxic, non-flammable and readily available at high purities and at low costs.
Likewise, how do you make CO2 supercritical? At standard temperature and pressure (STP), CO2 usually behaves as a gas. If dry ice is put in an enclosed vessel, it will sublimate to become a gas and the pressure will increase depending on the mass of dry ice until the desired pressure (supercritical pressure) is achieved.
Also asked, is supercritical CO2 toxic?
Supercritical C02 attracts all this interest be- cause of what it is not. It is not toxic, it is not flam- mable, it is not expensive, and it does not threaten the ozone layer as do chlorofluorocarbons (CFCs), which until the recent ban were used extensively in polymer manufacturing.
What is supercritical fluid example?
Any fluid pushed to a temperature and pressure where it is no longer possible to differentiate between the liquid and gas phase becomes a supercritical fluid. For example, in water, the critical temperature is 374°C, and the critical pressure is 22 MPa.
Related Question Answers
What is liquid CO2 called?
Liquid carbon dioxide is carbon dioxide gas that is highly compressed and cooled to a liquid form. Carbon dioxide exists as a liquid below the critical temperature of 31C and above the triple point with a temperature of -56.6 C and 4.18 bar.What pressure is CO2 a liquid?
Liquid carbon dioxide forms only at pressures above 5.1 atm; the triple point of carbon dioxide is about 518 kPa at −56.6 °C. The boiling point of the liquid is -70°F to +88°F, depending on pressure. When vaporized at 60°F, the expansion ratio is 535:1. CO2 exists as a gas or solid below 60 psig.Is co2 a good refrigerant?
From an environmental perspective, CO2 is a very attractive refrigerant with zero ODP and a GWP of 1. It is a naturally occurring substance and abundant in the atmosphere. CO2 is a high-pressure refrigerant where high operating pressures are required for efficient operation.What are supercritical fluids used for?
Typical applications, operated by means of supercritical fluids (SCFs), are the extraction of hop constituents, decaffeination of tea and coffee, and the separation of lecithin from oil, all of which are high-pressure processes, which are performed on a large industrial scale.What are the advantages of supercritical co2?
Supercritical fluidsSupercritical CO2 offers clear advantages, as it is easily available, inexpensive, non-toxic, non-explosive, not an organic solvent, and ensures gentle treatment of the product at moderate temperatures (<100°C) as well as easy separation of solvent and extract.
What is subcritical fluid?
Subcritical water is liquid water under pressure at temperatures above usual boiling point, 100 °C (212 °F). It is also known as "subcritical water" or "pressurized hot water." At subcritical state, water is maintained in liquid form by apply pressure.Is supercritical carbon dioxide decaffeination safe?
Supercritical carbon dioxide is especially well-suited to the decaffeinating process, since it removes caffeine while leaving the aroma oils, and the beans do not need to be treated after decaffeination to remove solvent residues. The carbon dioxide can be stripped of caffeine residue and reused.What is the main disadvantage of supercritical fluid extraction?
Although the main disadvantage of supercritical carbon dioxide extraction is the expensive equipment and the analysis pr°Cess, the possibility of using a lower temperature during extraction avoids thermal degradation of the labile compounds and makes this method attractive.What is CO2 oil extraction?
CO2 extraction is a process that uses pressurized carbon dioxide to pull the desired phytochemicals from a plant. The extraction process creates an amber-colored oil (CO2 oil) which the consumer can vaporize in several different ways.Can CO2 extraction be done at home?
Dry Ice DIY CO2 ExtractionIt's very common, easy and safe to use the solid form CO2, more commonly known as dry ice to make your own high grade keif hash at home. You will require: Size 73, 160 and 220 bubble hash micron mesh bags. A clean 5-gallon food grade plastic bucket.
What is liquid carbon dioxide extraction?
Carbon dioxide supercritical extraction is one application of the supercritical fluid extraction (SFE) process. SFE is a separation technology that uses supercritical fluid solvent for extraction. Carbon dioxide is the most commonly used supercritical fluid, with other choices including ethanol.What are CO2 essential oils?
CO2s (also known as CO2 oils and supercritical CO2 extracts) refer to oils extracted using carbon dioxide. Originally, carbon dioxide was used to extract oil from plants to be used as flavorings, aromas and in pharmaceuticals and cosmetics. CO2s are also used to decaffeinate coffee and teas.How does Super Critical fluid Extraction work?

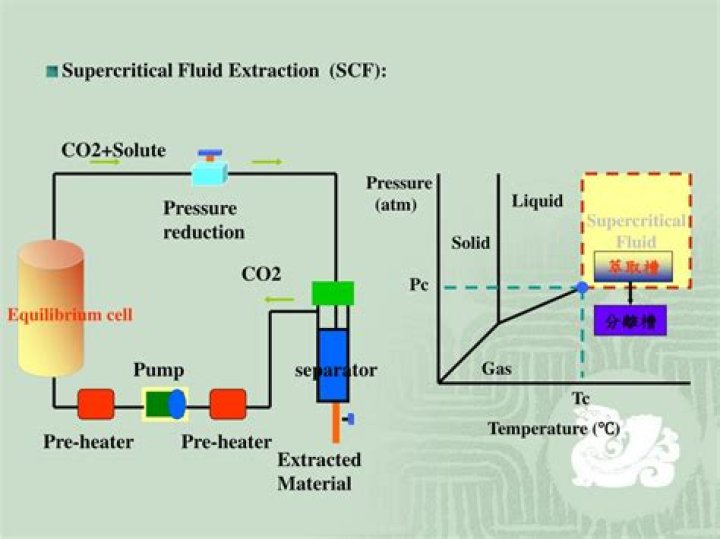

SFE is a highly selective method using pressurized fluids as solvents. A supercritical fluid originates from a fluid being forced to pressure and temperature that is above its critical point causing the liquid and gas phases to become indistinguishable from each other.Why is CO2 a green solvent?
Supercritical CO2 is a unique solvent that has the characteristics of variable density, low viscosity, and high diffusivity. The manipulation of these characteristics has led to numerous applications of this green solvent in diverse areas including extractions, impregnations, particle formation, and cleaning.What is the density of supercritical CO2?
The range of the underground supercritical CO2 density in the study area was 0.4 to 0.6 g cm-3.Which of the following is the actual reason why CO2 is used in CSFE?
Statement 2: CO2 gas can be used in super critical fluid extraction. Explanation: Presence of certain organic solvents in solvent extraction can prove to be carcinogenic. Carbon dioxide gas can be used in super critical fluid extraction.Is air a supercritical fluid?
Many pressurized gases are actually supercritical fluids. For example, nitrogen has a critical point of 126.2 K (−147 °C) and 3.4 MPa (34 bar). Therefore, nitrogen (or compressed air) in a gas cylinder above this pressure is actually a supercritical fluid.Is ammonia supercritical fluid?
It becomes especially easy to dissolve liquids and solids such as these in a supercritical fluid because of the high density.Examples: A Phase Diagram:
| Liquid | Critical Temperature (K) | Critical Pressure (atm) |
|---|---|---|
| Ethane (C2H6) | 305 | 48.2 |
| Carbon Dioxide (CO2) | 305 | 72.9 |
| Ammonia (NH3) | 406 | 112 |
| Water (H2O) | 647 | 218 |
Is CNG a supercritical fluid?
In their respective storage conditions, LNG is a liquid and CNG is a supercritical fluid.How is supercritical carbon dioxide fluid used in the food flavor and fragrance industry?
Carbon dioxide (CO2) supercritical fluid extraction (SCFE) is the preferred method for segregation of ingredients in the Flavor and Fragrance industry [1]. Hydrodistillation can chemically alter the extracted ingredient while organic solvent extraction tends to modify the ingredient's color and aroma [4].What is the phase diagram of CO2?
The Phase Diagram of Carbon DioxideThe triple point is −56.6°C and 5.11 atm, which means that liquid CO2 cannot exist at pressures lower than 5.11 atm. At 1 atm, therefore, solid CO2 sublimes directly to the vapor while maintaining a temperature of −78.5°C, the normal sublimation temperature.
