In classful routing, hello messages are not used. While in classless routing, hello messages are used. In classful routing, address is divided into three parts which are: Network, Subnet and Host. While in classless routing, address is divided into two parts which are: Subnet and Host.
Hereof, what is a classless routing behavior?
Classless routing protocols do send the subnet mask with their updates. Thus, Variable Length Subnet Masks (VLSMs) are allowed when using classless routing protocols. Examples of classful routing protocols include RIPv1 and IGRP. Examples of classless routing protocols include RIPv2, EIGRP, OSPF, and IS-IS.

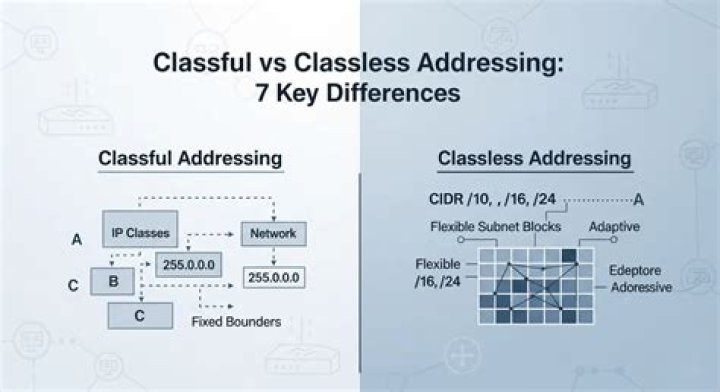

Likewise, what is the difference between class full and classless IP addressing? Classful addressing is an IP address allocation method that allocates IP addresses according to five major classes. Classless addressing is an IP address allocation method that is designed to replace classful addressing to minimize the rapid exhaustion of IP addresses.
Moreover, what is classless IP routing?
CIDR (Classless Inter-Domain Routing) -- also known as supernetting -- is a method of assigning Internet Protocol (IP) addresses that improves the efficiency of address distribution and replaces the previous system based on Class A, Class B and Class C networks.
What are the different types of routing protocol?
7 types of routing protocols
- Routing information protocol (RIP)
- Interior gateway protocol (IGRP)
- Enhanced interior gateway routing protocol (EIGRP)
- Open shortest path first (OSPF)
- Exterior Gateway Protocol (EGP)
- Border gateway protocol (BGP)
- Immediate system-to-immediate system (IS-IS)
Related Question Answers
What is classful & classless IP addressing?
Both terms refer to a perspective on the structure of a subnetted IP address. Classless addressing uses a two-part view of IP addresses, and classful addressing has a three-part view. With classful addressing, the address always has an 8-, 16-, or 24-bit network field, based on the Class A, B, and C addressing rules.Which statement explains classless routing protocol?
Quant Question. Classful routing means that all hosts in the internetwork use the same mask. Classless routing means that you can use Variable Length Subnet Masks (VLSMs) and can also support discontiguous networking.Is OSPF a classless or classful protocol?
Classful routing protocols do not carry subnet masks; classless routing protocols do. Older routing protocols, including RIP and IGRP, are classful. Newer protocols, including RIP-2, EIGRP, and OSPF, are classless.What are the two types of routing protocols?
There are two types of routing protocols:- Interior Gateway Protocols (IGP): These routing protocols exchange routing information within an autonomous system.
- Exterior Gateway Protocols (EGP): These routing protocols are used to route between autonomous systems.
What are the advantages of classless addressing?
Efficient address-space allocation is available in classless addressing. Memory is allocated in terms of bits and bytes rather than huge chunks of contiguous memory. It eliminates any class imbalances. Routing entries are much more efficient.Jun 2, 2018What is the difference between RIPv1 and RIPv2?
RIP v1 is an older, no longer much used routing protocol. RIP v2 is a classless protocol and it supports classful, variable-length subnet masking (VLSM), CIDR, and route summarization. RIPv2 supports authentication of RIPv2 update messages (MD5 or plain-text).What is difference between VLSM and FLSM?
FLSM mandates that every IP subnet within your deployment be the same size (legacy). VLSM allows any IP subnet within your deployment to be any size (modern standard).What is subnetting and Supernetting?
Subnetting is the procedure to divide the network into sub-networks or small networks. Supernetting: Supernetting is the procedure to combine the small networks into larger space. Subnetting is implemented via Variable-length subnet masking, While supernetting is implemented via Classless interdomain routing.Which protocol does not support classless routing?
Routing Information Protocol is a distance-vector routing protocol with three versions; RIPv1, RIPv2, and RIPng. RIPv1 is a classful routing protocol, thus, VLSM and CIDR is not supported. RIPv2 is the enhanced version of RIPv1. It is a classless routing protocol, thus, supports VLSM and CIDR.Is RIP version 2 classless or classful?
First, RIP version 2 is a classless routing protocol. Classless routing protocols always advertise the subnet mask in their routing updates.What is the difference between CIDR and Vlsm?
CIDR and VLSM are the terms explicitly used at the time of designing a network where CIDR is used for merging the routes in order to decrease the routing information carried by the core routers. On the contrary, VLSM facilitates in optimizing the available address space.What is the difference between CIDR and subnet mask?
In a NutshellCIDR IP addresses have a host and network portion. The netmask specifies the number of bits that the network portion uses, and those bits don't change. Subnets are created by the simple act of moving the divider up and down the 32-bit number. The tricky ones are easy, if you start with a known mask.
Why we use CIDR in networking?
The Internet Engineering Task Force introduced CIDR in 1993 to replace the previous classful network addressing architecture on the Internet. Its goal was to slow the growth of routing tables on routers across the Internet, and to help slow the rapid exhaustion of IPv4 addresses.What is CIDR in subnetting?
Classless inter-domain routing (CIDR) is a set of Internet protocol (IP) standards that is used to create unique identifiers for networks and individual devices. The most important of these groups is the network address, and it is used to identify a network or a sub-network (subnet).What is static and dynamic routing?
A static routing table is created, maintained, and updated by a network administrator, manually. A static route to every network must be configured on every router for full connectivity. A dynamic routing table is created, maintained, and updated by a routing protocol running on the router.What is a classless subnet?
At a high level, classless addressing works by allowing IP addresses to be assigned arbitrary network masks without respect to “class.†That means /8 (255.0. 0.0), /16 (255.255. 0.0), and /24 (255.255. 255.0) network masks can be assigned to any address that would have traditionally been in the Class A, B, or C range.How is classless IP address calculated?
IPv4 Classless Subnet equation- Using Equation: Network ID: floor(Host Address/Subnet Number of Hosts) * Subnet Number of Hosts Broadcast ID: (Host ID + (Subnet Number of Hosts-1)) First Host: Network ID + 1 Last Host: Broadcast ID - 1.
- Ex1: 192.168.1.65/28:
What is classful subnetting?
Classful subnetting is a method of splitting a classful network number into two or more smaller subnets. The subnets will all be the same size, determined by the maximum number of hosts per subnet. A single custom subnet mask is used to configure the subnets.How many types of routing are there in MVC?
There are two types of routing (after the introduction of ASP.NET MVC 5). Convention based routing - to define this type of routing, we call MapRoute method and set its unique name, url pattern and specify some default values.Dec 15, 2014What are the three classes of routing protocols?
There are mainly 3 different classes of routing protocols:- Distance Vector Routing Protocol :
- Features –
- Disadvantages –
- Link State Routing Protocol :
- Features –
- Advantages –
- Advanced Distance vector routing protocol :
