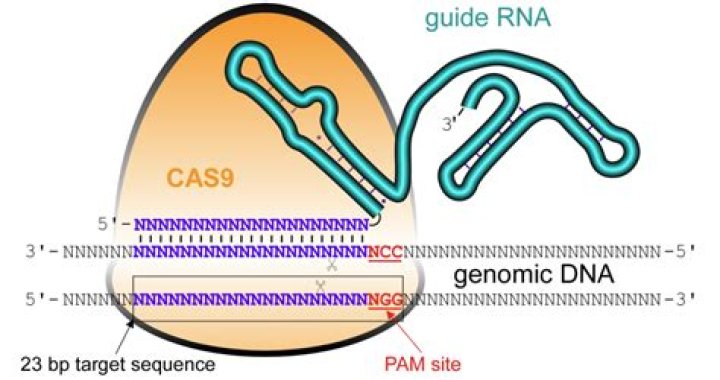

Engineered CRISPR systems contain two components: a guide RNA (gRNA or sgRNA) and a CRISPR-associated endonuclease (Cas protein). The gRNA is a short synthetic RNA composed of a scaffold sequence necessary for Cas-binding and a user-defined ∼20 nucleotide spacer that defines the genomic target to be modified.

Similarly, you may ask, what is the role of gRNA in Crispr?

The CRISPR-associated protein is a non-specific endonuclease. It is directed to the specific DNA locus by a gRNA, where it makes a double-strand break. There are several versions of Cas nucleases isolated from different bacteria. The most commonly used one is the Cas9 nuclease from Streptococcus pyogenes.

Similarly, how do you pick gRNA? How to Design gRNAs to Target Your Favorite Gene

  1. Identify the genomic region you want to target. You need to first find which exons are present in all transcript variants of your targeted gene.
  2. Find all possible protospacer sequences around your intended target site.
  3. Select at least two protospacer sequences that minimize off-target effects.

Thereof, what is Crispr cas9 and how does it work?

CRISPR-Cas9 was adapted from a naturally occurring genome editing system in bacteria. The bacteria capture snippets of DNA from invading viruses and use them to create DNA segments known as CRISPR arrays. The CRISPR arrays allow the bacteria to "remember" the viruses (or closely related ones).

Which diseases are candidates for treatment for the Crispr cas9 system?

4. Application of CRISPR/Cas9 as a Therapeutic Tool for Human Diseases

  • 4.1. Monogenic Disorders.
  • 4.2. Cystic Fibrosis.
  • 4.3. Sickle Cell Anemia.
  • 4.4. Thalassemia.
  • 4.5. Huntington's Disease.
  • 4.6. Duchenne Muscular Dystrophy.
  • 4.7. Hemophilia A.
  • 4.8. Chronic Granulomatous Diseases.

Related Question Answers

What is the role of gRNA?

Guide RNAs (a.k.a. gRNA, sgRNA) are the RNAs that guide the insertion or deletion of uridine residues into mitochondrial mRNAs in kinetoplastid protists in a process known as RNA editing. For this prokaryotic DNA-editing system, the gRNA confers target sequence specificity to the CRISPR-Cas9 system.

What do you need for Crispr?

To use CRISPR, you will need both Cas9 and a gRNA expressed in your target cells. For easy-to-transfect cell types (e.g. HEK293 cells), transfection with standard transfection reagents may be sufficient to express the CRISPR machinery.

How does cas9 cleave DNA?

Cas9 uses the HNH domain to cleave the DNA strand complementary to the crRNA sequence and the RuvC domain to cleave the DNA strand that is non-complementary to crRNA (Gasiunas et al., 2012; Jinek et al., 2012).

What makes a good guide RNA?

A well-designed gRNA should also be specific to the target.

Specific gRNAs have low off-target activity. The CRISPR-Cas9 enzyme can tolerate up to four mismatches between the gRNA and its target, and one nucleotide gap. In addition, high off-target activity can cause depletion of the Cas9 enzyme or even cell death.

Is Crispr an RNA?

A: CRISPR “spacer” sequences are transcribed into short RNA sequences (“CRISPR RNAs” or “crRNAs”) capable of guiding the system to matching sequences of DNA. When the target DNA is found, Cas9 – one of the enzymes produced by the CRISPR system – binds to the DNA and cuts it, shutting the targeted gene off.

How does Crispr work steps?

Step 1) Adaptation – DNA from an invading virus is processed into short segments that are inserted into the CRISPR sequence as new spacers. Step 2) Production of CRISPR RNA – CRISPR repeats and spacers in the bacterial DNA undergo transcription, the process of copying DNA into RNA (ribonucleic acid).

What is cas9 enzyme?

Cas9 is an RNA-guided enzyme that cleaves foreign nucleic acids bearing sequence complementary to the RNA loaded into the enzyme during bacterial adaptive immunity.

Where does Crispr cas9 cut?

The Cas9 cuts 3-4bp upstream of the PAM sequence. There can be some off-target DSBs using wildtype Cas9.

What diseases can Crispr treat?

7 Diseases CRISPR Technology Could Cure
  • Cancer. The first applications of CRISPR could be in cancer.
  • Blood disorders.
  • Blindness.
  • AIDS.
  • Cystic fibrosis.
  • Muscular dystrophy.
  • Huntington's disease.

How expensive is Crispr?

With CRISPR, scientists can create a short RNA template in just a few days using free software and a DNA starter kit that costs $65 plus shipping. Unlike protein-based technologies, the RNA in CRISPR can be reprogrammed to target multiple genes.

How is Crispr being used today?

Scientists have also used CRISPR to detect specific targets, such as DNA from cancer-causing viruses and RNA from cancer cells. Most recently, CRISPR has been put to use as an experimental test to detect the novel coronavirus.

What are the cons of Crispr?

Off-Target Effects

Wrong. In theory, the CRISPR-Cas9 system is incredibly specific, in practice, it is not. It can create mutations elsewhere in the genome, known as 'off-target' modifications. Off-target effects are random and can unduly influence other genes or regions of the genome.

How effective is Crispr?

We now demonstrate that CRISPR/Cas9 mutagenesis in zebrafish is highly efficient, reaching up to 86.0%, and is heritable. The efficiency of the CRISPR/Cas9 system further facilitated the targeted knock-in of a protein tag provided by a donor oligonucleotide with knock-in efficiencies of 3.5-15.6%.

Why is Crispr a good thing?

The CRISPR method is a more efficient way of carrying out DNA modification, making it easier and cheaper for scientists to make changes to an organism's genome. Researchers have been studying CRISPR for years and now they're at the point where they're exploring how to alter the DNA of organisms, including human beings.

Why is gene editing unethical?

In many countries there is a de facto moratorium on human germ line and embryo editing because such work is illegal. It is also completely unethical, not least of all because of lack of consent. The nontherapeutic use of gene editing on human embryos was and remains unethical and illegal on every level.

Has Crispr been used in humans?

Researchers in the U.S. have begun editing the genes of adults with devastating diseases, using a tool known as CRISPR. China has already launched multiple trials of CRISPR in humans.

Is Crispr legal?

In 2017, the Food and Drug Administration said selling gene-editing products intended for self-administration “is against the law” because they haven't been approved. Zayner says that starting in 2017 he did sell one CRISPR product that could target a human gene, the one that encodes a protein called myostatin.

How long is a guide RNA?

The most commonly used gRNA is about 100 base pairs in length. By altering the 20 base pairs towards the 5' end of the gRNA, the CRISPR Cas9 system can be targeted towards any genomic region complementary to that sequence.

What is Pam sequence?

A protospacer adjacent motif (PAM) is a 2–6-base pair DNA sequence immediately following the DNA sequence targeted by the Cas9 nuclease in the CRISPR bacterial adaptive immune system. Cas9 will not successfully bind to or cleave the target DNA sequence if it is not followed by the PAM sequence.

How do you synthesize gRNA?

Step 1: Order oligos to synthesize your gRNA. Step 2: Phosphorylate and anneal each pair of the oligos (1 hr). Step 3: Linearize the desired vector with BbsI (BpiI) and ligate oligos (2 hr). Step 4: Transform the final product (1 day).

How does Crispr target the gene of interest?

CRISPR targets the gene of interest by with the help of Cas9 enzymes which target the DNA. The guide RNA directs them both to the area targeted. This can target specific DNA sequences in the genome from the RNA sequences.
