The lumped-heat-capacity method of analysis is used in which no temperature gradient exists. This means that the internal resistance of the body (conduction) is negligible in comparison with the external resistance (convection). i.e small h and large k.
Moreover, what is lumped system analysis?
Lumped System Analysis

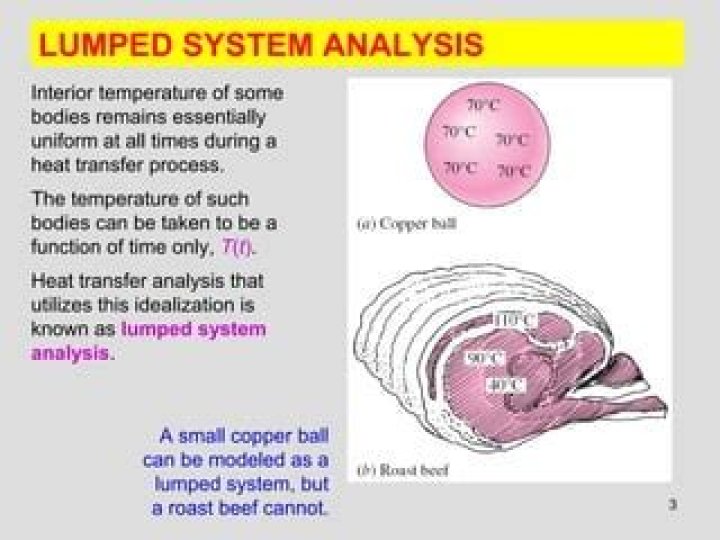

Interior temperatures of some bodies remain essentially uniform at all times during a heat transfer process. The temperature of such bodies are only a function of time, T = T(t). The heat transfer analysis based on this idealization is called lumped system analysis.
Additionally, what is heat transfer analysis? heat transfer analysis, heat source, thermal analysis, generated heat, temperature distribution analysis. The Heat Transfer module is used to analyze the temperature distribution in static and transient heat transfer processes.
Also to know is, what is meant by lumped circuit?
Lumped-Element Circuits:
Physical dimensions of circuit are such that voltage across and current through conductors connecting elements does not vary. • Current in two-terminal lumped circuit element does not. vary (phase change or transit time are neglected)
What are the assumptions for lumped capacity analysis?
The essence of the lumped system analysis is the assumption that the temperature of the solid is uniform within the body at all times and changes with time only, T=T(t). This assumption implies that temperature gradients within the solid are negligible.
Related Question Answers
What is lumped parameter analysis?
A lumped-capacitance model, also called lumped system analysis, reduces a thermal system to a number of discrete “lumps” and assumes that the temperature difference inside each lump is negligible. This approximation is useful to simplify otherwise complex differential heat equations.What is critical thickness?
Critical thickness of insulation means maximum heat loss with min thermal resistance. This concept is useful in the situation when surface area of the base object increases with the insulation, i.e., cylindrical and spherical systems.What is effectiveness of fin?
Efficiency of fin (ηfin):The efficiency of a fin is defined as the ratio of the actual heat transfer from the fin to that the heat that would be dissipated if whole surface of the fin is maintained at base temperature.
What is critical radius of insulation?
ANSWER. The critical insulation radius is defined as the thermal conductivity divided by the convection. heat transfer coefficient; this ratio allows for maximum heat transfer, symbolically seen below.How many types of convection process are there?
two typesWhat does Biot number mean?
The Biot number (Bi) is a dimensionless quantity used in heat transfer calculations. This ratio determines whether or not the temperatures inside a body will vary significantly in space, while the body heats or cools over time, from a thermal gradient applied to its surface.What is the physical significance of Biot number?
The Biot number is the ratio of the internal resistance of a body to heat conduction to its external resistance to heat convection. Therefore, a small Biot number represents small resistance to heat conduction, and thus small temperature gradients within the body.Which mode is more dominant in heat conduction?
ConvectionWhat is difference between lumped and distributed parameters?
The lumped element can be represented with its parameters like resistance orinductance with its total value at a place. In these elements resistance, inductance or capacitances are distributed and cannot be separated and modelled at a single point. These are distributed throughout the circuit.What does lumped mean?
lumped; lumping; lumps. Definition of lump (Entry 2 of 4) transitive verb. 1 : to group indiscriminately. 2 : to make into lumps also : to make lumps on or in.What is lumped capacity?
Definition. The lumped thermal capacity model is the simplest transient heat conduction approach. In this model, the temperature of the solid body is a function of the time only, which means that the temperature is assumed to be spatially independent (uniform).What are distributed elements?
Distributed-element circuits are electrical circuits composed of lengths of transmission lines or other distributed components. These circuits perform the same functions as conventional circuits composed of passive components, such as capacitors, inductors, and transformers.What is a distributed model?
The distributed model defines a way of contact in between the components of a system and it refers to how resources are spread out and works on more than one device to improve the effectiveness and performance of a task. The distributed models are used in many areas; some are.What is meant by transmission line?
transmission line in Electrical EngineeringA transmission line is a system of conductors that transfers electrical signals from one place to another. A transmission line is a system of conductors that transfers electrical signals from one place to another.
When can lumped capacitance be used?
With the corrected heat transfer coefficient, the lumped capacitance method can be applied to model the thermal storage in a wide range of Biot numbers. Four typical structures for the solid thermal storage material are considered.What is lumped parameter in transmission line?
Lumped Parameter L-SectionR is line resistance per unit length. L is the line inductance per unit length. C is the line capacitance per unit length. G is the line conductance per unit length.
What is distributed parameter model?
Distributed parameter systems are modeled by sets of partial differential equations, boundary conditions and initial conditions, which describe the evolution of the state variables in several independent coordinates, e.g. space and time.What are the 4 types of heat transfer?
Various heat transfer mechanisms exist, including convection, conduction, thermal radiation, and evaporative cooling.What are 4 ways fire spreads?
Generally, there are four ways that fire can spread via heat transfer. These are through convection, conduction, radiation, and direct burning. CONVECTION – This is defined as the transmission of heat within a liquid or gas and is due to their difference in density.What is the formula for heat transfer?
Q = m × c × Δ T Q=m imes c imes Delta T Q=m×c×ΔT| Q | Heat transferred |
|---|---|
| m | Mass |
| c | Specific Heat |
| Δ T Delta T ΔT | Difference in temperature |
What are the three types of heat transfer?
The Three Mechanisms of Heat Transfer: Conduction, Convection, and Radiation.What are the 3 methods of heat transfer describe each?
The three types of heat transfer- Convection.
- Conduction.
- Radiation.
Is the least important mode of heat?
Radiation is the least important mode of heat transport in the Earth. The process of heat exchange between the Sun and the Earth, through radiation, controls the temperatures at the Earth's surface. Inside the Earth, radiation is significant only in the hottest parts of the core and the lower mantle.What is the difference between thermodynamics and heat transfer?
THERMODYNAMICS AND HEAT TRANSFER: Thermodynamics deals with equilibrium states and changes from one equilibrium state to another. Heat transfer, on the other hand, deals with systems that lack thermal equilibrium, and thus it is a non-equilibrium phenomenon.How does heat transfer in a vacuum?
Yes. In vacuum heat transfer occurs through radiation mode of heat transfer. In vacuum heat can't be transferred by conduction or convection. Conduction requires material medium for heat transfer whereas conduction requires density difference.How is Biot number calculated?
Biot number formulah [W/(m² * K)] is the heat transfer coefficient at the material's surface, k [W/(m * K)] is the thermal conductivity of the material. Bi is the resulting Biot number.
