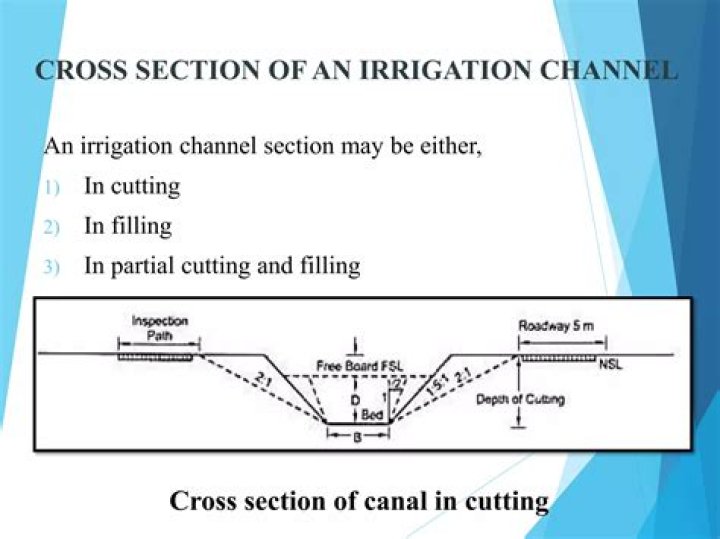

Recommended side slope should be 1.5:1 in the range of 1.75:1 for cutting and upto top of lining and in the range of 1.5:1 to 2:1 for filing and beyond the top of lining. Other parameters should be as per Table 3.0.

Subsequently, one may also ask, how is canal slope calculated?

Calculate the channel slope. Using the formula, slope equals change in elevation divided by ground distance. For example, if the ground distance is 11/16 or 0.69 inches and the scale factor is 1 inch equals 2,000 feet per inch, this equals 1,380 feet. The channel slope is 10 divided by 1,380, which equals 0.0072.

Secondly, which structure is provided when the disposition of earth becomes costlier? Explanation: The disposition of earth becomes costlier when the earthwork in excavation exceeds earthwork in filling. To dispose this earth economically, it should be collected on the edge of the bank embankment.

Moreover, what are the 8 components of canal cross section?

1.1 Components of cross-section:

1) Side slopes 2) Berms 3) Freeboard 4) Banks 5) Service roads 6) Back Berm or Counter Berms 7) Spoil Banks 8) Borrow Pits Figure 1 demonstrated all components of irrigation canal cross section.

What is berm in Canal?

A berm is a level space, shelf, or raised barrier (usually made of compacted soil) separating two areas. It can serve as a fortification line, a border/separation barrier, in industrial settings, or in many other applications.

Related Question Answers

What is bed slope?

The Slope of bed is used to calculate the shear stress at the bed of an open channel containing fluid that is undergoing steady, uniform flow. It is widely used in river engineering, stream restoratioview the full answer.

How do you find the rise and run of slope?

Divide the rise by the slope to calculate the run. In the example, if you had a rise of 12, divide by 0.6 to calculate a run of 20.

Which type of canal is most useful in hilly areas?

5. Which type of canal is most useful in hilly areas? Explanation: The idea of watershed canal in hilly areas is does not work because it is highly uneconomical, since the river flows in valley below the ridge. And the watershed may be hundreds of meters above the river.

What is a channel slope?

Channel slope or gradient is the difference in elevation between two points on a stream divided by the distance between them measured along the stream channel.

What is the main purpose of Canal outlet?

1. What is the main purpose of the canal outlet? Explanation: The canal outlet is a small structure that is built at the head of the watercourse so as to connect it with a distributary channel or a minor channel.

What is bed slope in open channel?

The depth–slope product is used to calculate the shear stress at the bed of an open channel containing fluid that is undergoing steady, uniform flow. It is widely used in river engineering, stream restoration, sedimentology, and fluvial geomorphology.

Is code for lining of canal?

Guidance with regard to the selection of canal lining for any particular canal is given in IS 10430 : 1982 'Criteria for design of lined canals and guidelines for selection of type of lining'.

How does a water slope work?

The water slope uses a moveable gate in a sloping channel. To ascend the slope the moving gate can be opened to allow a boat to enter the concrete channel. The gate then closes off the bottom of the channel and seals off a wedge of water on which the boat is floating, within the channel.

What is balancing depth of cutting?

Balancing canal depth comes when the canal is in partially embankment and partially in cutting. It is the depth of the canal (H) which gives equal amount of filling (i.e earth required for formation of Banks) and cutting (i.e earth from digging). For a given cross-section of a canal, it has only one balancing depth.

What are the different types of canals?

  • Permanent Canal. A Permanent canal is a type of canal in which water is available throughout the year.
  • Inundation Canal. Inundation canal is a type of canal in which water is available only during the flood periods.
  • Irrigation canal.
  • Power canal.
  • Feeder canal.
  • Carrier canal.
  • Navigation canal.
  • Alluvial canal.

What are the different types of canal section?

According to the shape of their cross-section, canals are called rectangular (a), triangular (b), trapezoidal (c), circular (d), parabolic (e), and irregular or natural (f) (see Fig. 73). The most commonly used canal cross-section in irrigation and drainage, is the trapezoidal cross-section.

What type of major dangers can the lining of canals extinguish?

What type of major dangers can the lining of canals extinguish? Explanation: Floods are catastrophic disasters in nature. If a canal is not lined or it constructed on weak foundations then there is chance of regular floods, sometimes even flash floods.

How do you determine the top width of a canal?

Vertical distance divided by horizontal distance. T = Top width of the flowing water [L]. V = Average velocity of the water [L/T]. y = Water depth measured normal (perpendicular) to the bottom of the channel [L].

What is watershed canal?

two streams on either side. ✓ The canal which is aligned along any natural watershed (ridge line) is called a watershed canal, or. a ridge canal. Aligning a canal (main canal or branch canal or distributary) on the ridge ensures gravity irrigation on both sides of the canal.

What is the meaning of Canal?

A canal is a long, man-made strip of water used for irrigation or boat access to a bigger body of water, like the famous Erie Canal, which connects the Hudson River to Lake Erie. It's also a verb meaning "to dig a canal."

How many types of canal irrigation works are there?

five types

How can we improve the duty of water?

Methods of Improving Duty of Water
  1. Proper Ploughing. The duty of water is high in case of deep and proper ploughing because it helps to increase moisture retaining capacity of the soil for a long period.
  2. Crop Rotation.
  3. Method of Irrigation System.
  4. Implementation of Tax.
  5. Frequently Cultivation.
  6. Canal Lining.
  7. Transmission Loss.

What device is placed in front of head regulator for silt removal?

Silt excluder

How many types of falls are present?

4. How many types of falls are present? Explanation: Since the idea of the construction of falls various types of falls have been designed. Some important falls are ogee falls, rapids, trapezoidal notch falls, simple vertical drop type and sarda type falls, straight glacis falls, Montague type falls and inglis falls.

What is the most critical condition of slide of the U S slope?

The most critical condition of the slide of the u/s slope is the sudden draw-down of water-level in the reservoir (Fig. 18.5) and the d/s slope is most likely to slide, when the reservoir is full (Fig. 18.6). The u/s slope failures seldom lead to catastrophic failures, but the d/s slope failures are very serious.

At which point in the entire canal system the duty of water will be more?

Due to this, the duty of water goes on increasing from starting point of canal system till its end point. Therefore, the duty of water is more at the last point of the system, i.e head of the water-course.

What is the USBR recommended value for freeboard when the height of the dam is more than 60 m?

2.5 m

Which device is used for silt removal after it enters the canal?

Silt ejectors, also called silt extractors, are those devices which extract the silt from the canal water after the silted water has traveled a certain distance in the off-take canal. These works are, therefore, constructed on the bed of the canal, and little distance downstream from the head regulator.

Which of the following intake structure is widely used in small works?

Which of the following intake structure is widely used in small works? Explanation: The main disadvantage of simple submerged intakes is that they are not easily accessible for repairing of their gates etc. But, these are economical and do not obstruct navigation and are widely used in small works.

When the reservoir is empty the maximum vertical stress equal to?

When reservoir is empty.

Hence, maximum vertical stress equal to 2WB at eh heel. (∵ resultant is near the heel) as vertical stress at toe will be zero.

What is very critical about gravity dam?

What is very critical about gravity dams? Explanation: All the forces arising in a gravity dam as due to the thrust of the impounded water and the massive weight of the dam material- are assumed to be directly transmitted to the foundation rocks. Hence the strength of the foundation rocks is the most critical factor.

How much does a berm cost?

Building a Berm to Divert Water

Most homeowners pay between $1,500 and $5,500 to install landscaping features like berms.

How is a berm formed?

Spring tides often form a storm ridge which consists of the largest material thrown up by the strong swash of the larger waves. There are often a series of smaller ridges formed beneath the storm ridge known as berms. These mark the successive high tides that follow the spring tide through to the neap tide.

How do you build a berm divert water?

  1. BUILD A BERM, a small hill covered with grass or other plants that will divert runoff around what you want to protect.
  2. ROUTE THE WATER INTO A DRY WELL.
  3. GRADE BROAD SURFACES to direct runoff away from houses, sheds, barns, and patios.
  4. INTERCEPT THE WATER by using a swale, a shallow ditch with gently sloping sides.

What does a berm look like?

A berm is simply a rounded mound of soil (and, sometimes, fill) built upon an otherwise level patch of land to improve the design of a property. The fact that a berm is rounded is what distinguishes it from a raised bed. The latter has a flat surface and a rectangular shape.

Why berm is provided in Canal?

Berm is the horizontal distance left at ground level between the toe of the bank and the top edge of cutting. They help the channel to attain regime conditions. They give additional strength to the banks and provide protection against erosion and breaches. They protect the banks from erosion due to wave action.
