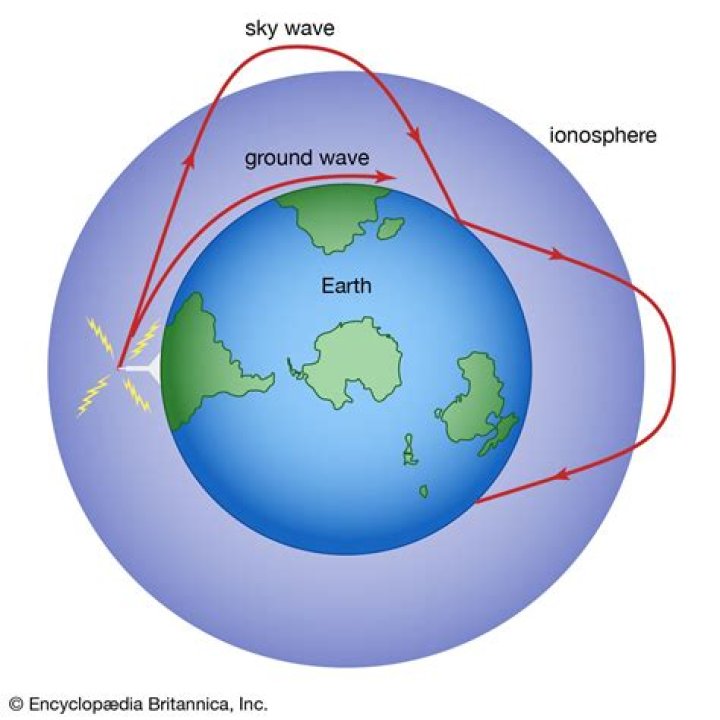

In space wave propagation radio wave moves along line of sight or reflected by the troposphere of reflected by the surface of earth and is received by the receiving antenna. In sky wave propagation radio waves are reflected by the ionosphere and then those are received by the receiving antenna.

Keeping this in view, what is a space wave?

The space waves are the radio waves of very high frequency (i.e. between 30 MHz to 300 MHz or more). The space waves can travel through atmosphere from transmitter antenna to receiver antenna either directly or after reflection from ground in the earth's troposphere region.

One may also ask, what is ground wave and sky wave? Answer: If wave travels directly along the earth from one point to another is called ground wave. If the wave is directed towards the sky and after reflection from ionosphere of earth's atmosphere reaches the desired location on earth is called sky wave.

Also Know, what is the difference between sky wave and space wave?

Sky waves: A radio wave transmitted towards the sky and reflected by the ionosphere towards the desired location of the earth is called a sky wave. Space waves: A radio wave that travels directly from a high transmitting antenna to the receiving station is called space wave.

What is meant by space wave propagation?

Space wave propagation is defined for the radio waves that occur within the 20km of the atmosphere ie; troposphere, comprising of a direct and reflected waves. These waves are also known as tropospheric propagation as they can travel directly from the earth's surface to the troposphere surface of the earth.

Related Question Answers

What is the main limitation of space wave mode?

LIMITATIONS OF SPACE WAVES As a form of electromagnetic radiation, like light waves, radio waves are affected by the phenomena of reflection, refraction, diffraction, absorption, polarization, and scattering. There are some limitations of space wave propagation: ? These waves are limited to the curvature of the earth.

Why sky waves are suitable for long range communication?

Sky waves are radio waves reflected by the ionosphere. Therefore, the propagation of these waves is not limited by the curvature of earth. So, these can be used for beyond the horizon communication. Thus, sky waves are used for communication over long (inter-continental) distances.

Where is ground wave propagation used?

Ground Wave propagation is a method of radio wave propagation that uses the area between the surface of the earth and the ionosphere for transmission. The ground wave can propagate a considerable distance over the earth's surface particularly in the low frequency and medium frequency portion of the radio spectrum.

How do you deflect radio waves?

Thin amounts of plastic wrap, wax paper, cotton and rubber are not likely to interfere with radio waves. However, aluminum foil, and other electrically conductive metals such as copper, can reflect and absorb the radio waves and consequently interferes with their transmission.

What is the frequency of sky wave?

Sky Wave Propagation: The sky waves are the radiowaves of frequency between 2 MHz to 30 MHz. These radio waves can propagate through atmosphere and are reflected back by the ionosphere of earth's atmosphere.

What materials affect radio waves?

Thin amounts of plastic wrap, wax paper, cotton and rubber are not likely to interfere with radio waves. However, aluminum foil, and other electrically conductive metals such as copper, can reflect and absorb the radio waves and consequently interferes with their transmission.

Which layer reflects radio waves back to Earth?

ionosphere

What is the range of space wave propagation?

Space Wave Propagation : The space waves are the radio waves of very high frequency (i.e. between 30 MHz to 300 MHz or more). The space waves can travel through atmosphere from transmitter antenna to receiver antenna either directly or after reflection from ground in the earth's troposphere region.

How do electromagnetic waves travel through a vacuum?

Electromagnetic waves are waves which can travel through the vacuum of outer space. Mechanical waves, unlike electromagnetic waves, require the presence of a material medium in order to transport their energy from one location to another. Electromagnetic waves are created by the vibration of an electric charge.

What is the maximum frequency of sky waves?

between 2 MHz to 30 MHz

How do waves propagate?

A wave can be thought of as a disturbance or oscillation that travels through space-time, accompanied by a transfer of energy. The direction a wave propagates is perpendicular to the direction it oscillates for transverse waves. A wave does not move mass in the direction of propagation; it transfers energy.

What are the different types of wave propagation?

Types Of Wave Propagation
  • Ground Waves.
  • Ionospheric Layer.
  • Sky Waves (Ionospheric Wave)
  • Optimum Working Frequency.
  • Broadcast Fading Zone.
  • Radio Horizon.
  • Space Waves.
  • Troposphere Scatter Propagation.

What do you mean by sky wave propagation?

Skywave propagation refers to the propagation of radio waves reflected or refracted back toward Earth from the ionosphere, an electrically charged layer of the upper atmosphere. When high frequency signals enter the ionosphere obliquely, they are back-scattered from the ionized layer as scatter waves.

Why sky wave propagation is not possible for high frequency radio waves?

Sky wave propagation is not possible for high frequency radio waves because the atmosphere is opaque and will reflect signal well only for lower frequencies.At higher frequencies the atmosphere is not opaque at all.

What is Space wave propagation class 12?

A space wave travels in a straight line from transmitting antenna to the receiving antenna. Space waves are used for line-of-sight (LOS) communication as well as satellite communication. At frequencies above 40 MHz, communication is essentially limited to line-of-sight paths.

What is Space wave propagation give two examples of communication system which use space wave mode?

Two examples of communications systems which use space wave mode are - Television broadcast, microwave links and satellite communication. Therefore the maximum distance up to which the signal transmitted from the tower can be received is 32 km.

Why sky wave propagation is better at night?

As it turns out, the ionosphere reflects certain frequencies of radio waves. So the waves bounce between the ground and the ionosphere and make their way around the planet. You can pick up some radio stations better at night because the reflection characteristics of the ionosphere are better at night.

What is Wave explain?

Waves involve the transport of energy without the transport of matter. In conclusion, a wave can be described as a disturbance that travels through a medium, transporting energy from one location (its source) to another location without transporting matter.

What do radio waves bounce off of before returning to the earth?

In radio communication, skywave or skip refers to the propagation of radio waves reflected or refracted back toward Earth from the ionosphere, an electrically charged layer of the upper atmosphere.

Are sky waves electromagnetic waves?

Sky Wave. Used for the propagation of EM waves with a frequency range of 3 – 30 MHz. These ions provide a reflecting medium to the radio or communication waves within a particular frequency range.

How do electromagnetic waves travel?

Electromagnetic waves are waves which can travel through the vacuum of outer space. This vibration creates a wave which has both an electric and a magnetic component. An electromagnetic wave transports its energy through a vacuum at a speed of 3.00 x 108 m/s (a speed value commonly represented by the symbol c).

Why ground wave are not suitable for high frequency?

Explanation: The degree of attenuation is mainly dependent on the frequency of the wave and is directly proportional to it. So, ground wave propagation is not suitable for high frequency as the losses are high. Ground wave propagation:The process of transmitting waves over the ground is called ground wave propagation.

What is Wave in physic?

Waves involve the transport of energy without the transport of matter. In conclusion, a wave can be described as a disturbance that travels through a medium, transporting energy from one location (its source) to another location without transporting matter.

What is U in wave equation?

Introduction. The wave equation is a partial differential equation that may constrain some scalar function u = u (x1, x2, …, xn; t) of a time variable t and one or more spatial variables x1, x2, … xn.

On what factors ground wave propagation depends?

Propagation by ground wave, Propagation by ionospheric wave (sky wave) and.

Generally the amount of refraction that occurs in the earth' atmosphere depends on three main factors:

  • the density of ionization of the layer,
  • the frequency of the radio wave, and.
  • the angle at which the wave enters the layer.

What is meant by skip distance?

A skip distance is the distance a radio wave travels, usually including a hop in the ionosphere. A skip distance is a distance on the Earth's surface between the two points where radio waves from a transmitter, refracted downwards by different layers of the ionosphere, fall.

What is Space wave propagation state its three components?

The space wave has three components: (a) Direct wave : Along path, radio waves reach receiving antenna directly. (b) Ground reflected wave: The radio waves reach the receiving antenna after reflection from ground. (c)Tropospheric wave: The radio waves reach the receiving antenna after reflection from.

What is meant by critical frequency?

Critical frequency is the highest magnitude of frequency above which the waves penetrate the ionosphere and below which the waves are reflected back from the ionosphere. Its value is not fixed and it depends upon the electron density of the ionosphere.

What is meant by line of sight?

Definition of line of sight. 1 : a line from an observer's eye to a distant point. 2 : the line between two points specifically : the straight path between a transmitting antenna (as for radio or television signals) and a receiving antenna when unobstructed by the horizon.

What is need for modulation?

Modulation is a process in which the feature (amplitude, phase or frequency ) of the carrier signal is changed in accordance with instantaneous value of modulating signal. Modulation is needed for many reasons. Some of them are given below : To increase the bandwidth of the signals. To reduce the antenna size.

How do satellites help in communication?

Satellites communicate by using radio waves to send signals to the antennas on the Earth. The antennas then capture those signals and process the information coming from those signals.

What is meant by space wave propagation and sky wave propagation?

The radio waves having high frequencies are basically called as space waves. These waves have the ability to propagate through atmosphere, from transmitter antenna to receiver antenna. At such higher frequencies the other wave propagation techniques like sky wave propagation, ground wave propagation can't work.
