An SNMP context name or "context" in short, is a collection of management information accessible by an SNMP entity. In other words, if a management information has been defined under certain context by an SNMPv3 entity, then any management application can access that information by giving that context name.
Keeping this in view, what is SNMPv3 engine ID?
The Engine ID is only used by SNMPv3 entities to uniquely identify them. An SNMP agent is considered an authoritative SNMP engine. Each SNMP agent maintains local information that is used in SNMPv3 message exchanges. The default SNMP Engine ID is comprised of the enterprise number and the default MAC address.
One may also ask, why is SNMPv3 important? The secure management of SNMPv3 is an important enabling technology for safe configuration and control operations. SNMPv3 provides security with authentication and privacy, and its administration offers logical contexts, view-based access control, and remote configuration.
In this manner, what is SNMPv3?

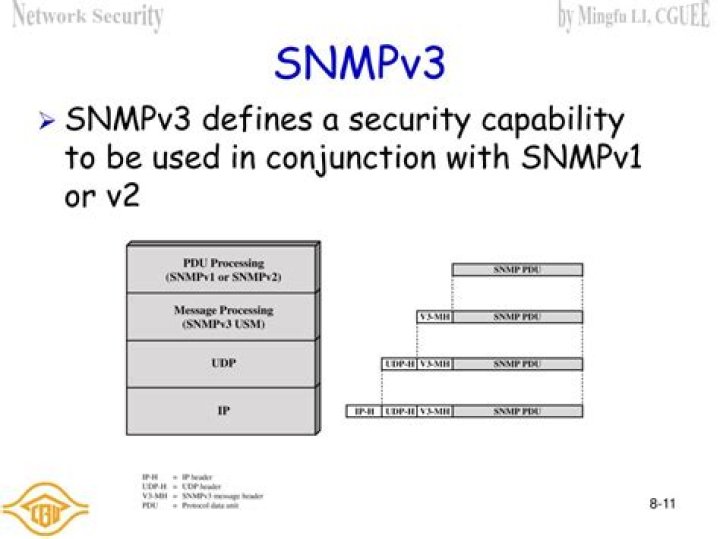

SNMP Version 3. Simple Network Management Protocol version 3 (SNMPv3) is an interoperable, standards-based protocol that is defined in RFCs 3413 to 3415. This module discusses the security features provided in SNMPv3 and describes how to configure the security mechanism to handle SNMP packets.
What are SNMP settings?
- General SNMP Settings.
- Simple Network Management Protocol (SNMP) defines a standard for recording, storing, and sharing information about network devices.
- Key components of any SNMP-managed network are managed devices, SNMP agents, and a management system.
Related Question Answers
Is SNMPv3 encrypted?
Encryption – The process of converting plaintext into ciphertext, thereby making the text unreadable to unintended recipients. In regard to SNMP, data can be encrypted to prevent electronic eavesdropping of sensitive data. SNMPv3 uses DES to encrypt data.What port does SNMPv3 use?
SNMPv3 is the most secure version of the SNMP protocol. The SNMPv3 port is the same port used for SNMPv1 or SNMPv2c. You'll need the port 161 for polling and 162 for notifications (trap messages, for example).Does SNMPv3 use community strings?
SNMPv3 also uses community strings, but allows for secure authentication and communication between SNMP manager and agent.How do I find my SNMP engine ID?
By default the Engine ID is based on the MAC address of the device. To define the SNMP engine ID: Click SNMP > Engine ID. The Engine ID Page opens.What is SNMP server engineID?
The snmp-server engineID remote command configures the name of a Simple Network Management Protocol (SNMP) engine located on a remote device. Use the snmp-server engineID local command for the local engine. A remote agent's engine ID must be configured before remote users for that agent are configured.How do you configure SNMPv3 on the Palo Alto Networks firewall?
Steps- To setup SNMPv3 polling. Go to Device > Setup > Operation > SNMP Setup, then click "v3".
- Once the device starts responding to SNMPv3 GETs/Walks, an SNMPv3 GET needs to be issued against the device for the OID 1.3. 6.1.
- Once the backend SNMPv3 Trap receiver is configured, complete the SNMPv3 Server profile setup.
Is SNMP still used?
SNMP effectively aids the monitoring of network infrastructures such as data stations, printers, servers, hubs, routers, WINS, and host configurations. Today, it is still one of the most widely used layer protocols for simple networks.Which version of SNMP is more secure?
There is no downside. SNMP version 3: adds security to the 64 bit counters. SNMP version 3 adds both encryption and authentication, which can be used together or separately.Is SNMP a TCP or UDP?
Correspondingly, most TCP/IP network equipment comes with an SNMP management agent. SNMP is a request/response protocol. UDP port 161 is its well-known port. SNMP uses UDP as its transport protocol because it has no need for the overhead of TCP.What is the difference between SNMPv2 and SNMPv3?
1. Simple Network Management Protocol version 2 (SNMPv2) is a managing device used to monitor devices in a computer network while the Simple Network Management Protocol version 3 (SNMPv3) is the latest version of the SNMP.Is SNMP a Layer 2?
Layer 2 ProtocolsThese include: SNMP: Simple Network Management Protocol is used for collecting information from devices and configuring them. CDP: Cisco Discovery Protocol is used to share information about directly-connected Cisco equipment.
What is SNMP trap?
Simple Network Management Protocol (SNMP) Traps are alert messages sent from a remote SNMP-enabled device to a central collector, the "SNMP manager". A Trap might tell you that a managed device is overheating, for example.Is SNMP port 161 TCP or UDP?
Typically, SNMP uses UDP as its transport protocol. The well known UDP ports for SNMP traffic are 161 (SNMP) and 162 (SNMPTRAP). It can also run over TCP, Ethernet, IPX, and other protocols. ATM uses SNMP as its ILMI (Integrated Local Management Interface) protocol.What is SNMP v1?
SNMPv1 is the first version of SNMP. It's easy to set up, as it only requires a plain text community. Although it accomplished its goal of being an open, standard protocol, it was found to be lacking in key areas for certain managing applications.Is SNMP v2 secure?
SNMP is without a doubt a very useful protocol for the management and monitoring of network devices, servers and applications. Whether it is secure or not really comes down to the level of risk which is acceptable to the organisation. SNMPv1 and v2c do have flaws in that authentication is almost non-existent.What is SNMP and how it works?
Simple Network Management Protocol (SNMP) is a way for different devices on a network to share information with one another. It allows devices to communicate even if the devices are different hardware and run different software.What are different SNMP versions?
There are three versions of SNMP: SNMPv1, SNMPv2c, and SNMPv3.- SNMPv1: The initial version of the protocol.
- SNMPv2c: The revised version with enhanced protocol packet types, transport mappings, and MIB structure elements, but also uses the existing SNMPv1 administration structure ("community-based" and hence SNMPv2c).
What is the difference between SNMP and SNMP trap?
Pull Model: OpManager sends SNMP request to the SNMP agent running on the monitored device and receives the response. SNMP requests can be scheduled using monitoring intervals. Traps are spontaneous.What are the benefits of using SNMPv3 over SNMPv2?
SNMPv3 is the most advanced and secure version of SNMP yet. With features like user authentication and encryption, you receive a secure user experience unmanted by the previous versions. Using Intermapper for SNMP monitoring helps you take full advantage of the benefits of SNMpv3.Which SNMP versions do not support encryption?
Currently, there are three versions of SNMP defined: SNMP v1 , SNMP v2c and SNMPv3. SNMPv3 adds security and remote configuration capabilities to the previous versions of SNMP. SNMP version 3 (v3) is not supported in Symantec Encryption Management Server (SEMS) 3.3.What is a SNMP Manager?
The SNMP manager is a program, also known as a network management station (NMS), that runs on a host on the network. The manager sends requests to one or more SNMP agents running on devices connected to the network. An agent, or daemon, is a program that listens for SNMP requests from the manager.When was SNMPv3 released?
March 2002What is SNMP community string?
An SNMP community string is a means of accessing statistics stored within a router or other device. Sometimes referred to simply as a community string or an SNMP string, it comprises the user credential—ID or password—delivered alongside a GET request.What port is SNMP?
What is an SNMP port? SNMP ports are utilized via UDP 161 for SNMP Managers communicating with SNMP Agents (i.e. polling) and UDP 162 when agents send unsolicited Traps to the SNMP Manager.How do I connect to SNMP?
Enabling and Configuring SNMP on Windows[Start > Run > services. msc], find the SNMP service and double-click it. There are two important areas in the SNMP service configuration. The “Traps” tab determines where SNMP traps from the Windows host will be sent and which community name those traps will use.
What can you monitor with SNMP?
SNMP can comprehensively monitor not only the network elements like routers and switches, but can also be used to monitor network servers. Details like server hardware description, physical location, IP address, available disk space and server uptime can be monitored through SNMP.How do I know if SNMP is enabled?
For checking SNMP in Windows OS- Go to Start-> Settings-> Control Panel->Administrative Tools-> Services.
- Check for SNMP Service.
- If SNMP Service does not exist, install SNMP.
- If SNMP Service is displayed but the status of the Service is not displayed, double click on SNMP Service and click on Start to start the Service.
