The isoelectric (equiphasic) lead is the frontal lead with zero net amplitude. This can be either: A biphasic QRS where R wave height = Q or S wave depth. A flat-line QRS with no discernible features.
Also, what is isoelectric in ECG?

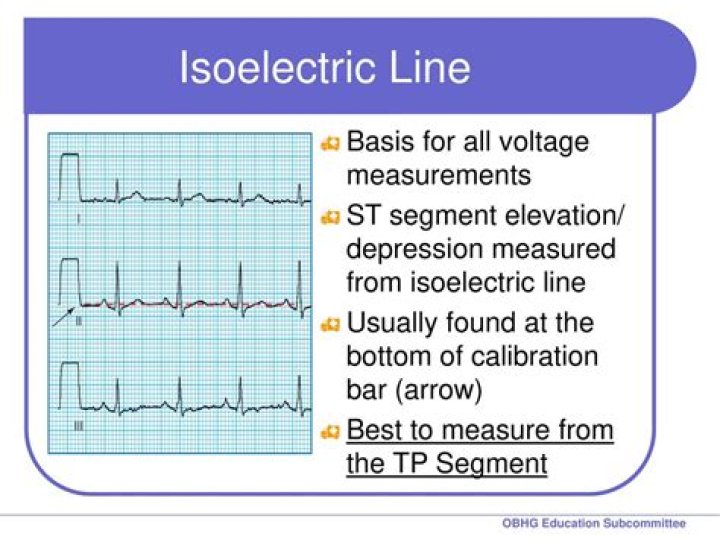

ECG Waveforms. The baseline or isoelectric line. This is represented as a straight line on the ECG paper where there is no positive or negative charges of electricity to create deflections. Waveforms. These are representations of electrical activity created by depolarization and repolarization of the atria and
Likewise, what is the normal electrical axis of the heart? The mean electrical axis for the heart normally lies between -30 and +90°. Less than -30° is termed a left axis deviation and greater than +90° is termed a right axis deviation.
Additionally, what is a biphasic lead?
When the QRS complex is clearly positive, it means that the electric impulse flows towards the lead; if the QRS complex is negative, the impulse flows away from the lead; if the QRS complex is biphasic it means the direction of the impulse is perpendicular to the lead.
How do you find the axis deviation?
To further distinguish normal from left axis deviation in this setting, look at lead II. If lead II is downward (negative), then the axis is more towards -120, and left axis deviation is present. If the QRS complex in lead II is upright (positive), then the axis is more towards +60 degrees, and the QRS axis is normal.
Related Question Answers
Why is lead 2 ECG important?
To assess the cardiac rhythm accurately, a prolonged recording from one lead is used to provide a rhythm strip. Lead II, which usually gives a good view of the P wave, is most commonly used to record the rhythm strip.How is PRI calculated?
The PRI measurement is from the point where the Pwave deflects from isoelectric to the beginning of the Qwave. If no Qwave is present, the end of the PRI is at the beginning of the Rwave.What is normal sinus rhythm?
When everything is working smoothly, you have a normal sinus rhythm and your heart beats between 60 and 100 times per minute.What is aVF in ECG?
aVF means augmented Vector Foot; the positive electrode is on the foot. NOTE: although the F stands for foot, please conceptualize the positive electrode of aVF as being at the umbilicus. Now combine the three limb leads I, II, III.What does PR segment represent?
The PR segment is the flat line between the end of the P-wave and the start of the QRS complex. The PR segment reflects the time delay between atrial and ventricular activation. The PR segment also serves as the baseline (reference line or isoelectric line) of the ECG curve.What does the T wave represent?
T and U wavesThe T wave represents ventricular repolarization. Generally, the T wave exhibits a positive deflection. The reason for this is that the last cells to depolarize in the ventricles are the first to repolarize.
What is an Equiphasic wave?
The isoelectric (equiphasic) lead is the frontal lead with zero net amplitude. This can be either: A biphasic QRS where R wave height = Q or S wave depth. A flat-line QRS with no discernible features.How do you calculate heart rate from ECG?
If the heart rate is irregular, count the number of QRS complexes on the ECG and multiply by 6 to obtain the average heart rate in bpm (the ECG displays a period of 10 seconds; thus, 6 × 10 seconds = 60 seconds [1 minute]).What if P wave is absent?
Bifid P waves (known as P mitrale) indicate left-atrial abnormality - e.g. dilatation or hypertrophy. Absence of the P wave with a flat baseline may indicate: Fine atrial fibrillation. Sinoatrial arrest (with a secondary escape rhythm)What rhythm has an inverted P wave?
Junctional beats/rhythms are characterized by absent or inverted p-waves, absent or shorter than normal PR intervals, and normal/narrow QRS complexes.Why is R wave bigger than P wave?
The rule is: if the wave immediately after the P wave is an upward deflection, it is an R wave; if it is a downward deflection, it is a Q wave: small Q waves correspond to depolarization of the interventricular septum. the R wave reflects depolarization of the main mass of the ventricles –hence it is the largest wave.What does an upside down QRS mean?
The T wave is ventricular repolarization. It is typically much wider than the ventricular depolarization that generates the QRS. Sometimes it is upside down (inverted). Sometimes half of it is upside down and the other half upright; this is called biphasic. The QRS duration is a measurement of how wide the QRS is.What does a double P wave mean?
A “double hump” or notched P wave is diagnostic of LAE if the peaks are one small box or more apart. A biphasic P wave indicates left atrial enlargement if the downward portion of the P wave is one box or larger in both depth and length.Why are P waves inverted?
Elevation or depression of the PTa segment (the part between the p wave and the beginning of the QRS complex) can result from atrial infarction or pericarditis. If the p-wave is enlarged, the atria are enlarged. If the P wave is inverted, it is most likely an ectopic atrial rhythm not originating from the sinus node.Why is v1 and v2 negative in ECG?
ECG – A Pictorial Primer. In right chest leads V1 and V2, the QRS complexes are predominantly negative with small R waves and relatively deep S waves because the more muscular left ventricle produces depolarization current flowing away from these leads. In V1 the QRS are positive with tall R waves.Which ECG leads should be inverted?
In the normal ECG (see below) the T wave is always upright in leads I, II, V3-6, and always inverted in lead aVR. The other leads are variable depending on the direction of the QRS and the age of the patient.What does it mean to have a vertical heart?
loosely descriptive of the hearts electrical axis when this is directed at approximately +90°.What is abnormal ECG?
An abnormal EKG can mean many things. Sometimes an EKG abnormality is a normal variation of a heart's rhythm, which does not affect your health. Other times, an abnormal EKG can signal a medical emergency, such as a myocardial infarction (heart attack) or a dangerous arrhythmia.Which side of the heart Depolarizes first?
leftWhat does it mean to have a left axis deviation?
In electrocardiography, left axis deviation (LAD) is a condition wherein the mean electrical axis of ventricular contraction of the heart lies in a frontal plane direction between −30° and −90°. This is reflected by a QRS complex positive in lead I and negative in leads aVF and II.Why is the S wave negative?
You will also have seen a small negative wave following the large R wave. The S wave travels in the opposite direction to the large R wave because, as can be seen on the earlier picture, the Purkinje fibres spread throughout the ventricles from top to bottom and then back up through the walls of the ventricles.What ECG lead is reflected when the electrical vector travels from the right arm to the left arm?
A maximal positive deflection is recorded in lead II when the depolarization wave travels parallel to the axis between the right arm and left leg. Similarly, a maximal positive deflection is obtained in lead III when the depolarization wave travels parallel to the axis between the left arm and left leg.What is the most common cause of left axis deviation?
Left anterior fascicular block is the most common cause of left axis deviation [2].What does left and right axis deviation mean?
If the electrical axis falls between the values of -30° to +90° this is considered normal. If the electrical axis is between -30° to -90° this is considered left axis deviation. If the electrical axis is between +90° to +180° this is considered right axis deviation (RAD).Is left axis deviation life threatening?
A disorder of axis as it pertains to findings on EKG should be carefully evaluated. Patient history is helpful but may not aid in the underlying cause of axis disorders. Generally, disorders of axis do not present as life threatening emergencies, however, it may be a subtle indicator of something more ominous.What are the causes of right axis deviation?
Causes- Left posterior fascicular block.
- Lateral myocardial infarction.
- Right ventricular hypertrophy.
- Acute lung disease (e.g. Pulmonary Embolus)
- Chronic lung disease (e.g. COPD)
- Ventricular ectopy.
- Hyperkalaemia.
- Sodium-channel blocker toxicity.
Is right axis deviation serious?
RAD on prior ECGs: Chronic right axis deviation is normal in youngsters (less than 21 years of age) and in athletes. It can be a chronic finding in patients with lung disease and RVH or in patients with left posterior hemiblock. The latter is a diagnosis of exclusion.What is a normal QRS axis?
At birth, the normal QRS axis lies between +30 degrees and +190 degrees. Between the ages of 8 to 16 years, the axis moves leftward with normal lying between 0° degrees to +120 degrees. The normal adult QRS axis is between -30 degrees and +90 degrees, which is directed downward and to the left.What is right axis deviation in ECG?
Right axis deviation occurs when the QRS axis is shifted between 90 and 180 degrees. A number of things can result in right axis deviation which include lung disease, right sided heart strain, right bundle branch block, and right ventricular hypertrophy.How can I see ECG report?
How to Read an ECG- Confirm details.
- Step 1 – Heart rate.
- Step 2 – Heart rhythm.
- Step 3 – Cardiac axis.
- Step 4 – P waves.
- Step 5 – PR interval.
- Step 6 – QRS complex.
- Step 7 – ST segment.
