A summary of the temperature ranges ofsoldering Soft solders have a 'low' melting point, usuallyranging from 90°C and 400°C whereas with hard solders, itcan be anything from 450°C and 850°C. Brazing above850°C is possible as long as the melting point of thesolder is below that of the base metals.
Similarly, when soldering Why should flux be used?
In soldering of metals, flux serves athreefold purpose: it removes any oxidized metal from the surfacesto be soldered, seals out air thus preventing furtheroxidation, and by facilitating amalgamation improves wettingcharacteristics of the liquid solder.
Furthermore, when soldering What is the flow of molten filler material between the two base metals called? When soldering what is the flow of molten fillermaterial between the two base metals called capillaryattraction.
Also know, when soldering or brazing the solder is?
The melting temperature of the filler materialdetermines whether the process is brazing orsoldering. The brazing process takes place attemperatures above 840°F and soldering takes place attemperatures below 840°. Both processes are often referred toin conjunction with the filler metal.
Why are some ACR tubing lines insulated?
Some ACR tubing lines are insulated so,that they prevent heat transfer between the fluid in thepipe and the surrounding air. It also preventscondensation from forming on the lines. Place thetube in the cutter.
Related Question Answers
Can you solder without flux?
Is it “okay”, sure it is, so long asyou don't demand anyone else solder without flux.Bear in mind though, most common solder wire is rosin-core,it has one or more cores of flux inside of it. Thekind of solder plumbers use has no flux becausethey apply the flux externally. So you couldsolder with that solder.What is the most common cause of leaking compression fittings?
What is the most common cause of leaking compressionfittings? CAUSE FOR LEAKING IN COMPRESSIONFITTING: Compression ring or ferrule gets damaged if thecompression nut is over tightened. This excess tighteninginduces more compressive stress over the ring which the ringcannot withstand and gets deformed.What is flux made of?
Flux is used in soldering to remove oxides fromthe contacts of the parts to be soldered together. Fluxescan be made from hydrochloric acid, zinc chloride or rosin.Here is a simple and easy homemade rosin flux made from pinecones.What is solder made of?
Solder that is made of 60% tin and 40%lead. 60/40 is the most commonly used type of solder forhand soldering. Solder that is made of 63% tinand 37% lead. 63/37 solder is also known as eutecticsolder and is often preferred because it goes directly froma solid to liquid state when melted.What type of flux is used in electronics soldering?
Flux is designed to improve electricalcontact and mechanical strength in solder joints. There aremainly two types of flux cores. Acid core and rosin core.Acid core is used for plumbing and rosin core is usedfor electronics.Why does solder not stick to copper pipe?
Don't try to solder pipes with water in them.Soldering a joint in pipes that contain even tinyamounts of water is nearly impossible. Most of the heat from thetorch goes into turning the water to steam, so the copperwon't get hot enough to melt the solder.What is a dry joint in soldering?
A "dry joint" occurs when the coolingsolder is moved, and often occurs because the jointmoves when the soldering iron is removed from thejoint. An improperly selected or applied flux can causejoint failure. Without flux the joint may not beclean, or may be oxidized, resulting in an unsoundjoint.Can electrical solder be used for plumbing?
The acid flux in plumbing solder differs fromelectrical solder, which contains rosin flux. However, thatcorrosive acid flux will rapidly degrade wiring if plumbingsolder is mistakenly used for electronics. Deterioratedwiring may cause the connection to fail. Electrical shortsor even fire may result.What is silver solder made of?
Silver Solder Alloys Copper (Cu) is soft and a great heat conductor plusit's resistant to corrosion. Zinc (Zn) and tin (Sn) have really lowmelting points, which lowers the overall melting point of thesolder. All the silver solders sold at Halstead arelead and cadmium-free.Can you braze with a propane torch?
Brazing with Propane. Here is the answerto whether you can braze with a propane / air torch.You can but you have to control the environment sothat the heat loss to the atmosphere and parts is lower than theheat being put into the braze joint.What temp does brazing rod melt?
Brazing uses filler rods that meltabove 840 deg F. The metals being repaired or joined melt atmuch higher temperatures, so brazing does not affectthem.What is pipe brazing?
Brazing is a metal-joining process in which twoor more metal items are joined together by melting and flowing amaterial into the joint, the filler material having a lower meltingpoint than the adjoining metal. The difference betweenbrazing and soldering is the temperature necessary to meltthat filler metal.Is soldering as strong as welding?
Soldering is a low-temperature analog to brazing.By the American Welding Society's definition,soldering takes place with fillers (also known as solders)that melt at below 840°F (450°C). Metals that can besoldered include gold, silver, copper, brass, and iron. Thebond is not as strong as brazed joint or weldedone.What is stronger silver solder or brazing?
Braze. Mechanically this is the same process assoldering. It can be distinguished from soldering bytemperature: in brazing the filler metal melts above 840°F (450 °C). Because of the higher temperatures abrazed joint is stronger than a solderedjoint.What metals can be brazed?
Many different types of metals can be brazed.Copper, and copper based materials like brass and bronze, aretypically brazed with copper phosphorus silver alloys alsoknown as American Welding Society (AWS) BCuP fillermetals.Can I braze over solder?
Yes you should be able to braze over thesolder joint. Heat up the fitting and wipe off as much ofthe solder as you can with a rag before you try tobraze the joint. The valve should be brass, so you may havea problem brazing it unless you use a brazingflux.What is silver solder used for?
Brazing alloys ( silver solders) are designed to:melt and flow at a specific temperature or temperature range belowthe melting point (solidus) of the base metal, fill a specificjoint gap design. join a variety of base metals, including manygrades of steel and stainless steel.What is Tinning the bit?
Tinning is the process of thinly coating sheetsof wrought iron or steel with tin, and the resulting product isknown as tinplate. While once more widely used, the primary use oftinplate now is the manufacture of tin cans.What do you mean by soldering?

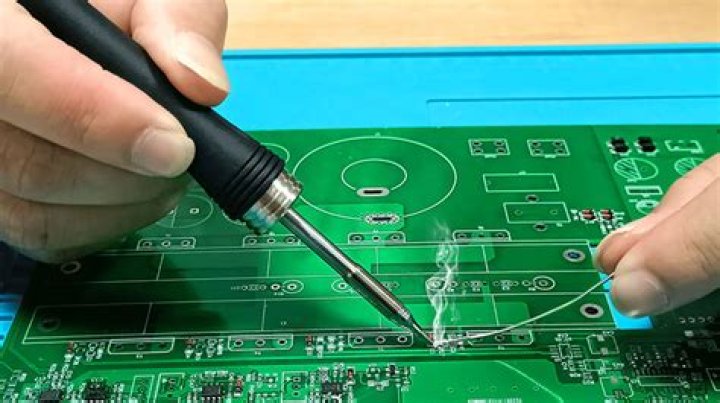

Soldering is a process in which two or more metalitems are joined together by melting and then flowing afiller metal into the joint—the filler metal having arelatively low melting point. The metal to be soldered isheated with a soldering iron and then solder ismelted into the connection.What are the different types of solder?
Types of Solder. Electronics soldergenerally falls into one of three types, a lead alloysolder, a lead-free solder or a silver alloysolder.What is a multiple evacuation?
A multiple evacuation means that. you pull avacuum on a refrigeration system more than once, allowingrefrigerant or nitrogen into the system between eachprocedure.What is a cold solder joint?
Cold solder joint is an electrical solderingjoint where the joining metal or the solder has not beenheated enough to form a proper joint. It often results incracks in soldered joint over the period. The sole reasonfor this to happen is insufficient heating of joints whilesoldering.What are two purposes for using insulation on the suction line?
Suction Line Insulation First, it prevents condensation forming on thepipe. Condensation could drip from the pipe and causedamage to building materials, or create a slip hazard on the floor.The other reason to insulate the suction line, is toprevent the refrigerant in the line from picking upadditional heat.What's the difference between welding and soldering?
The main difference between welding and solderingis melting. In soldering, metal fabricators heat the metalto be bonded but never melt them. Soldering is most similarto brazing because it uses capillary action to flow themetal into the joint until it cools and hardens.Why is tin used in solder?
Lead solder Historically, lead has been widely believed to mitigatethe formation of tin whiskers, though the precise mechanismfor this is unknown. Alloys commonly used for electricalsoldering are 60/40 Sn-Pb, which melts at 188 °C (370°F), and 63/37 Sn-Pb used principally inelectrical/electronic work.How do you Desolder?
Method 1 Using a Desoldering Pump- Locate the terminals for the component to be removed.
- Clean the terminals.
- Attach a heat sink.
- Clean your soldering iron as it heats.
- Push down on the desoldering pump.
- Heat the old solder with your soldering iron.
- Vacuum up the melted solder.
- Empty the desoldering pump into the trash.
