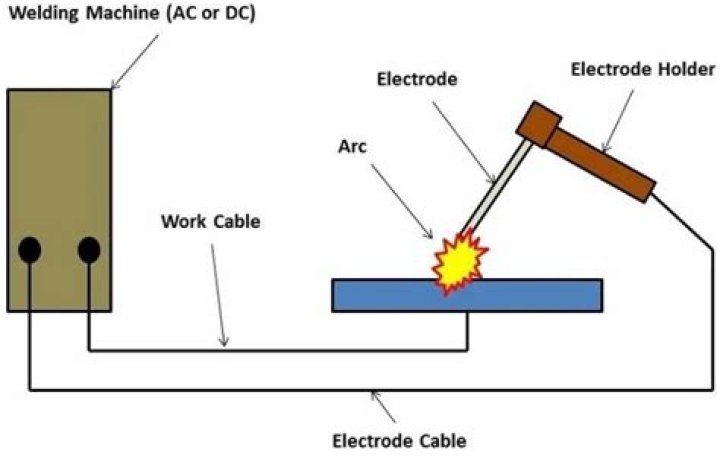

What is the normal no load voltage range in DC arc welding?

Challenge Board (Gabrielle Williams)

A	B
What is the typical no-load open circuit voltage of a DC arc welding machine?	60-80 Volts
List three components of the transformer type arc welding machine.	Primary windings, Secondary windings, Core

Also know, what is a typical open circuit voltage for an arc welding machine?

A: Arc welding involves open circuit (when not welding) voltages which are typically from as low as 20 volts to as high as 100 volts. Q: What voltages are normally found inside the case of an arc welder? A: The voltage inside welding equipment is commonly much higher: from 120 volts to 575 volts or more.

Likewise, how is the AC arc stabilized? Arc is stabilized by the inert shielding gas. Voltage drops as the arc length decreases.

Similarly, it is asked, what is the recommended maximum safe voltage for arc welding equipment?

80 volts

What are three types of DC arc welding machines?

List three types of dc arc welding machines. AC transformer with DC rectifiers, inverter, and motor- or engine-driven generator.

Related Question Answers

What is arc voltage?

As soon as the contacts of the circuit breaker separate, an arc is formed. The voltage that appears across the contacts during arcing period is called the arc voltage. Its value is low except for the period the fault current is at or near zero current point.

Can you touch the electrode while arc welding?

A: A stick electrode is always "electrically hot" when the welder is on. Wear dry gloves in good condition when welding. Do not touch the electrode or metal parts of the electrode holder with skin or wet clothing.

What is the voltage of an open circuit?

The open-circuit voltage, V_OC, is the maximum voltage available from a solar cell, and this occurs at zero current. The open-circuit voltage corresponds to the amount of forward bias on the solar cell due to the bias of the solar cell junction with the light-generated current.

Can you get electrocuted by DC current?

Both AC an DC can cause electric shock. In AC as ground is neutral, if you touch phase, current flows through you. In case of DC (say more than 50 volts) if you touch the current carrying wire while standing on the ground, current does not flow through. So, you cannot experience electric shock.

Can an arc welder kill you?

It is possible to be shocked when welding, especially in wet conditions, but this is usually due to damaged equipment and carelessness. Since voltages involved are low, a welding unit is less likely to kill you than a regular power outlet. (Note: electrocuted means "killed by electricity" and not simply being shocked.)

What is the strongest type of weld?

TIG welding

Why does my welding rod keep sticking?

Sticking the welding rod is where the rod instead of melting like it should, sticks to the base metal. There is not enough current to melt it, but enough for it to stick. If you jerk the "stinger" (electrode holder) quick enough you can break the rod off of the base metal and re-strike your arc.

Is stick welding stronger than MIG?

Quality of Weld Despite being good for thicker plates, stick welders are not ideal for thin metal projects. The E70s6 bare wire used in MIG and 7018 stick used in stick welders are both equally strong. They have a 70,000 psi tensile strength, which is stronger than most steels that you will work with.

Can you be electrocuted by a welder?

It is possible to be shocked when welding, especially in wet conditions, but this is usually due to damaged equipment and carelessness. Since voltages involved are low, a welding unit is less likely to kill you than a regular power outlet. (Note: electrocuted means "killed by electricity" and not simply being shocked.)

Can you touch the metal your welding?

A: A stick electrode is always "electrically hot" when the welder is on. Wear dry gloves in good condition when welding. Do not touch the electrode or metal parts of the electrode holder with skin or wet clothing.

Is it OK to weld in the rain?

Welding in the rain is possible but since rainwater can conduct electricity, you're at the risk of getting electrically shocked. According to OSHAS standards, no regulations are saying it's illegal but you must know it's a neither smart or safe thing to do.

How many volts do you need to weld?

A: Arc welding involves open circuit (when not welding) voltages which are typically from as low as 20 volts to as high as 100 volts. Q: What voltages are normally found inside the case of an arc welder? A: The voltage inside welding equipment is commonly much higher: from 120 volts to 575 volts or more.

Why don't I get electrocuted when welding?

It is possible to be shocked when welding, especially in wet conditions, but this is usually due to damaged equipment and carelessness. Since voltages involved are low, a welding unit is less likely to kill you than a regular power outlet. (Note: electrocuted means "killed by electricity" and not simply being shocked.)

What is the best welding rod?

The 10 Best Arc Welding Rods In 2019 Reviews

Table of the Arc Welding Rods:
#1. Forney 30705 E7018 Welding Rod.
#2. Hobart 770460 6011 Stick.
#3. Hot Max 22075 E6013 1 ARC Welding Electrodes.
#4. US Forge Welding Electrode E6013.
#5. Blue Demon E308L-Tube Stainless Steel Arc Welding Electrode.
#6. Bernzomatic AL3 Aluminum Brazing/Welding Rods.
#7.

Do you have to weld on a metal table?

You don't need a metal welding table to weld, But! Working in a shop or garage without a welding table can easily be done.

What shade do you use for arc welding?

OPERATIONS	MINIMUM* PROTECTIVE SHADE
Gas metal arc welding and flux cored arc welding	10
Gas tungsten arc welding	8
	8
	10

Why DC current is used in welding?

DC polarity is used in most welding applications. It produces a smoother welding output compared to AC. It creates a more stable arc, easier welding and less spatter. You can also either use DC negative for faster deposition rates when welding thin sheet metal or use DC positive for more penetration into the steel.

What are the 4 types of welding?

More than 30 different types of welding exist, and they range from simple oxy-fuel to high-tech processes such as laser beam welding. However, only four welding types are used commonly, and they are MIG, TIG, Stick and Flux- Cored arc welding.

When a GTAW arc is struck across a gap the resistance generates heat in the range of?

"The gas tungsten arc welding process utilizes the heat of an arc between a nonconsumable tungsten electrode and the base metal. The arc develops intense heat, approximately 11,000°F."

What is DC arc?

The direct current arc (dc arc): The most basic type of electrical arc is the dc arc. The dc arc is fed by a source having a total available voltage of between 100 and 300 V and a power of some kW.

How hot is a welding arc?

The heat of the arc melts the surface of the base metal and the end of the electrode. The electric arc has a temperature that ranges from 3,000 to 20,000 °C. Welding fumes are complex mixtures of particles and ionized gases.

How bright is a welding arc?

Welding arcs are incredibly bright, though. They even produce harmful UV radiation, making protection is necessary. Welding arcs release a significant amount of UV radiation. A metal inert gas weld using helium at 300 A usually produces around 5Wm^-² UVB and UVC radiation at a distance of one meter.

What is the temperature of the arc in SMAW?

Also temperature varies with the shielding gas used. In general the temperature varies from 5000-30,000K depending upon the parameters mentioned earlier.

How does welding generate arc?

An arc is an electric current flowing between two electrodes through an ionized column of gas. A negatively charged cathode and a positively charged anode create the intense heat of the welding arc. Negative and positive ions are bounced off of each other in the plasma column at an accelerated rate.

What is difference between AC and DC welding?

Direct current (DC) is used on most stick welding applications. Alternating current (AC) is typically only used as a second option. DC positive polarity provides a high level of penetration into the steel. DC negative polarity results in less penetration but a higher deposition rate.

What can you weld with an arc welder?

so what can be welded with this well you can weld carbon steel cast iron ductile iron copper. sometimes aluminum nickel there's some many many many applications that. you can weld with but you're going to need the the proper filler metal or the corresponding metal that is similar to whatever is you're welding.

Which is better AC or DC welding?

DC stick welding offers advantages over AC when welding steel, including smoother and more stable arcs, easier starts, fewer arc outages, less spatter and easier vertical up and overhead welding. DC positive polarity provides a high level of penetration into the steel.

Which current is used in arc welding?

Both direct current (D.C.) and alternating current (A.C.) are used for arc welding. The alternating current for arc is obtained from a step down transformer. The transformer receives current from the main supply at 220 to 440 volts and step down to required voltage i.e., 80 to 100 volts.

What is the danger of arc flash?

Dangers of arc flashes An arc flash can cause minor injuries, third degree burns and potential death as well as other injuries including blindness, hearing loss, nerve damage and cardiac arrest. Fatal burns can occur when the victim is several feet from the arc. Serious burns are common at a distance of 10 feet.

What are the different types of welding techniques?

Some of the most common current welding methods are:

Shielded metal arc welding (SMAW), also known as "stick welding."
Gas tungsten arc welding (GTAW), also known as TIG (tungsten, inert gas).
Gas metal arc welding (GMAW), also known as MIG (metal, inert gas).
Flux-cored arc welding (FCAW), very similar to MIG.

What is the difference between AC DC welders?

DC polarity is used in most welding applications. It produces a smoother welding output compared to AC. It creates a more stable arc, easier welding and less spatter. You can also either use DC negative for faster deposition rates when welding thin sheet metal or use DC positive for more penetration into the steel.

Will help prevent undercutting?

To eliminate undercut, reduce current and slow travel speed, or simply reduce size until you have a puddle size you can handle. Then change the electrode angle so the arc force holds the metal in the corners. Use a uniform travel speed and avoid excessive weaving.

What does undercut mean in welding?

Undercutting is a groove or crater that occurs near the toe of the weld. When this weld flaw occurs, the weld metal fails to fill in that grooved area, resulting in a weak weld that is prone to cracking along the toes.

What is a tack weld?

Tack welding is an important welding process that most welders will become quite familiar with their career. Tack welds are essentially temporary welds that help to hold two metals in place. The main purpose of the tack weld is to hold the two pieces of metal in place while you apply the actual, final weld.

Which of the following is not a type of DC welding machine?
