The common ocular magnifies ten times, marked as 10x. The standard objective lenses magnify 4x, 10x and 40x. If the microscope has a fourth objective lens, the magnification will most likely be 100x.
Simply so, what is ocular magnification?

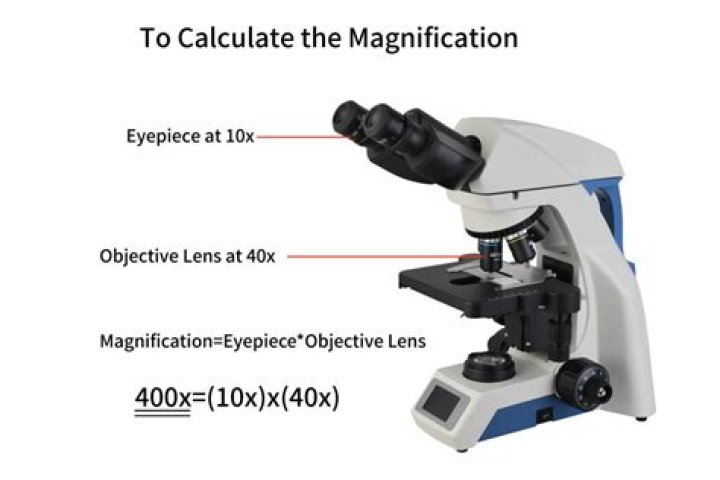

magnification of ocular x magnification of objective = total magnification. For example, if the ocular lens magnifies the image by a factor of 10 (10X), and the. objective lens magnifies the image by a factor of 50 (50X), the total magnification of the. image is 500X: 10X x 50X = 500X.
Similarly, what is the total magnification at 4x 10x and 40x? 4x is a common magnification for scanning objectives and, when combined with the magnification power of a 10x eyepiece lens, a 4x scanning objective lens gives a total magnification of 40x.
People also ask, how do you find ocular magnification?
To figure the total magnification of an image that you are viewing through the microscope is really quite simple. To get the total magnification take the power of the objective (4X, 10X, 40x) and multiply by the power of the eyepiece, usually 10X.
What is the common magnification of the ocular lens?
Magnification
| Magnification | Ocular lens | |
|---|---|---|
| Scanning | 4x | 10x |
| Low Power | 10x | 10x |
| High Power | 40x | 10x |
Related Question Answers
What magnification do you need to see bacteria?
Bacteria are too small to see without the aid of a microscope. While some eucaryotes, such as protozoa, algae and yeast, can be seen at magnifications of 200X-400X, most bacteria can only be seen with 1000X magnification.What is the use of ocular lens in microscope?
The ocular lens, or eyepiece lens, is the one that you look through at the top of the microscope. The purpose of the ocular lens is to provide a re-magnified image for you to see when light enters through the objective lens. The ocular lens is generally 10- or 15-times magnification.What is 1000x magnification?
At 1000x magnification you will be able to see 0.180mm, or 180 microns.What are the 3 lenses on a microscope?
Objective Lenses: Usually you will find 3 or 4 objective lenses on a microscope. They almost always consist of 4x, 10x, 40x and 100x powers. When coupled with a 10x (most common) eyepiece lens, total magnification is 40x (4x times 10x), 100x , 400x and 1000x.How do you calculate actual magnification?
Magnification can be calculated using a scale bar.Working out magnification:
- Measure the scale bar image (beside drawing) in mm.
- Convert to µm (multiply by 1000).
- Magnification = scale bar image divided by actual scale bar length (written on the scale bar).
Where is the ocular lens on a microscope?
The eyepiece or ocular, which fits into the body tube at the upper end, is the farthest optical component from the specimen. In modern microscopes, the eyepiece is held into place by a shoulder on the top of the microscope observation tube, which keeps it from falling into the tube.What objective lens do you use first?
ALWAYS use both hands when picking the microscope up and moving it from one place to another. 3. When focusing on a slide, ALWAYS start with either the 4X or 10X objective. Once you have the object in focus, then switch to the next higher power objective.What happens to your image if you try to magnify it using 40x or 100x?
5. What happens to your image if you try to magnify it using 40x or 100x? It could blow up your iage if you do not adjust the stage accordingly.Why is the magnification of the ocular always 10x?
The objective and ocular lenses are responsible for magnifying the image of the specimen being viewed. So for 10X objective and 10X ocular, The aperture angle is the angle described by the cone of light that enters the objective lens after passing through the specimen.What is the difference between ocular and objective lenses?
What is the difference between ocular and objective lenses? Ocular is the eyepiece and objective lenses magnifies with the help of the eyepiece. Objective power= 10x.What is apparent magnification?
By convention, for magnifying glasses and optical microscopes, where the size of the object is a linear dimension and the apparent size is an angle, the magnification is the ratio between the apparent (angular) size as seen in the eyepiece and the angular size of the object when placed at the conventional closestWhat is the total magnification of a sample with an ocular lens power of 15x?
Ocular lens- 15x, Objective- 20x.How do you calculate total magnification and field of view?
Field of View = Field Number (FN) ÷ Objective MagnificationYou will have to multiply the eyepiece magnification by the objective magnification to find the total magnification before dividing the field number. For instance, if your eyepiece reads 10X/22, and the magnification of your objective lens is 40.
How do you measure ocular units?
The spaces on the ocular micrometer are called ocular units and the spaces on the stage micrometer are called stage units. Divide the number of stage units by the number of ocular units. For example, if you count 21 stage units and 29 ocular units, dividing these numbers gives 0.724.What can you see with 40x magnification?
What will you be able to see under a high power microscope?- At 40x magnification you will be able to see 5mm.
- At 100x magnification you will be able to see 2mm.
- At 400x magnification you will be able to see 0.45mm, or 450 microns.
- At 1000x magnification you will be able to see 0.180mm, or 180 microns.
