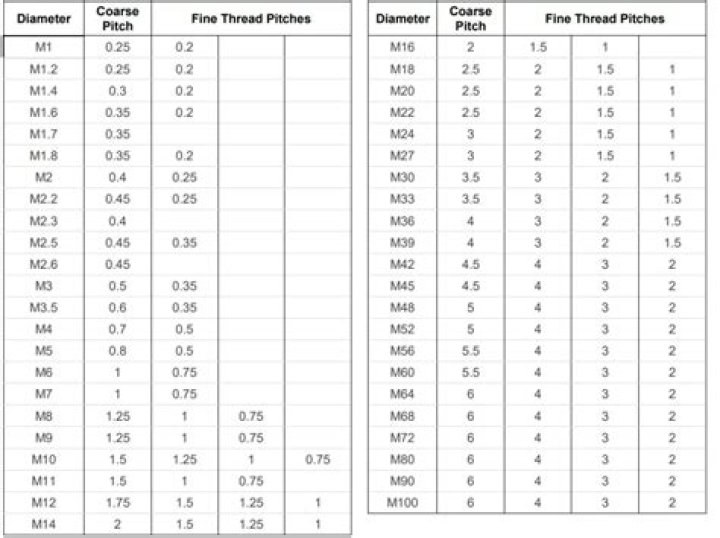

Basic Metric Thread Chart (M1 – M100)
| Diameter | Coarse Pitch | Fine Thread Pitches |
|---|---|---|
| M10 | 1.5 | 1 |
| M11 | 1.5 | 0.75 |
| M12 | 1.75 | 1.25 |
| M14 | 2 | 1.25 |
In this regard, what is pitch of the thread?
The thread pitch is the distance between threads expressed in millimeters (measured along the length of the fastener). For example a thread pitch of 1.5 means that the distance between one thread and the next is 1.5mm. In general smaller fasteners have finer thread so they have lower thread pitch.
Likewise, what is the pitch of an m6 thread? Table 3.
| Metric | Closest Inch |
|---|---|
| M5-0.8 | 10-32 (Smaller) |
| M6-1.0 | 1/4-28 (Larger) |
| M7-1.0 | 1/4-28 (Smaller) |
| M8-1.25 | 5/16-18 (Smaller) |
Furthermore, what is the pitch of an m8 thread?
Metric Thread Pitch and Tapping Sizes
| Size | Pitch (mm) | Tapping Diameter (mm) |
|---|---|---|
| M6 | 1.0 | |
| M8 | 1.25 | 7.0 |
| M10 | 1.5 | 8.7 |
| M12 | 1.75 | 10.8 |
What does m10 thread mean?
M10 means a 10 millimeter outer diameter for the bolt or whatever piece it is; M12 means 12 millimeters. The part after the 'x' is the pitch -- how many mm a thread is wide. To figure out which you have, you can measure the existing part with calipers and a thread gauge.
Related Question Answers
What is pitch formula?
The general pitch-to-frequency conversion formula is. the frequency corresponding to pitch p is f = 440 · 2(p-69)/12 Hz. In order to convert from frequency to pitch, we need a way to write any given frequency f in the form 440 · 2x (that is, we need to ind x in terms of f).How is pitch calculated?
The angle, or pitch, of a roof is calculated by the number of inches it rises vertically for every 12 inches it extends horizontally. For example, a roof that rises 6 inches for every 12 inches of horizontal run has a 6-in-12 pitch.What pitch is a 1/4 20 thread?
1/4″-20 x 2″ The 1/4″ refers to the bolt diameter (in inches), the -20 refers to the threads per inch meaning that there are 20 threads per inch on this bolt, and the 2″ refers to the length (also in inches).How do you determine pitch?
The angle, or pitch, of a roof is calculated by the number of inches it rises vertically for every 12 inches it extends horizontally. For example, a roof that rises 6 inches for every 12 inches of horizontal run has a 6-in-12 pitch.What is diametral pitch?
The diametral pitch of a gear is the number of teeth per inch of pitch diameter. Pitch diameter is the pitch circle below. It specifies the tooth spacing along the pitch circle of each gear, which must be the same for the gears to work together. It's used to know that two gears will mesh.What pitch is a standard m10 thread?
1.25mmHow do you read thread pitch?
How to Read Screw Sizes- Read the first letter of the size. This the largest diameter: the measurement of the screw on the thread.
- Read the second number. This is either the number of threads per unit of the distance between threads; also known as the "thread pitch".
- Read the third number, generally the one following the "x."
What is pitch of micrometer?
Basically it is a screw with an accurately constant pitch (the amount by which the thimble moves forward or backward for one complete revolution). The micrometers in our laboratory have a pitch of 0.50 mm (two full turns are required to close the jaws by 1.00 mm).What is 1.5 thread pitch?
Thread Pitch. Metric fasteners are specified with a thread pitch instead of a thread count. The thread pitch is the distance between threads expressed in millimeters (measured along the length of the fastener). For example a thread pitch of 1.5 means that the distance between one thread and the next is 1.5mm.What is m4 thread size?
| Tap size | Basic major dia (mm) | mm per thread |
|---|---|---|
| M3.5 x 0.6 | 3,5mm | .6 |
| M4 x 0.7 | 4mm | .7 |
| M5 x 0.8 | 5mm | .8 |
| M6 x 1 | 6mm | 1 |
What is standard thread on Bolt?
The common V-thread standards (ISO 261 and Unified Thread Standard) include a coarse pitch and a fine pitch for each major diameter. For example, ?1⁄2-13 belongs to the UNC series (Unified National Coarse) and ?1⁄2-20 belongs to the UNF series (Unified National Fine).What is m8 thread?
M8 is the designation for a metric (M) sized bolt or screw that is 8mm (8) in diameter.What is m20 thread size?
| Tap size | Basic major dia (mm) | Basic major dia (inch) |
|---|---|---|
| M20 x 2.5 | 20mm | .7874 |
| M20 x 1.5 | 20mm | .7874 |
| M22 x 2.5 | 22mm | .8661 |
| M22 x 1.5 | 22mm | .8661 |
What is the pitch of a tap?
Pitch: The distance between a point on a screw thread and a corresponding point on the next thread. The pitch is equivalent to one divided by the number of threads per inch. Square (Flats): The squared end of the tap shank.What does m8 1.25 mean?
For metric fasteners, you will see a M8 x 1.25 or an M8 x 1. For thread pitch, the distance between two points is the second number meaning the higher the number the fewer threads there are. This means the M8 x 1.25 is the coarse threading and the M8 x 1 is the fine thread.What size thread is m6?
| Tap size | Basic major dia (mm) | Basic major dia (inch) |
|---|---|---|
| M4 x 0.7 | 4mm | .1575 |
| M5 x 0.8 | 5mm | .1969 |
| M6 x 1 | 6mm | .2362 |
| M8 x 1.25 | 8mm | .3150 |
What does M mean in bolt sizes?
The "M" means "metric." Metric threads are designated by diameter and thread spacing. For instance, the most common bolt size used on bicycles is 5 x . 8, also known as "M5." This size is used for water bottle mounts, cable anchor bolts, fender/rack eyelets, shifter mounts etc. The "5" means the bolt diameter is 5 mm.What does m8x1 25 mean?
1.0 = Pitch (distance from thread to thread), in millimeters. 20 = Length, in millimeters (see below) This example illustrates how a coarse threaded screw may appear… M12 x 25 = 12 mm diameter, coarse thread is assumed (1.75 mm), 25 mm long.What is a fine pitch thread?
Coarse threads are those with larger pitch (fewer threads per axial distance), and fine threads are those with smaller pitch (more threads per axial distance). Coarse threads have a larger threadform relative to screw diameter, where fine threads have a smaller threadform relative to screw diameter.What pitch is metric fine?
METRIC THREAD -- FINE PITCH -- M (1 mm - 28 mm)Is m10 the same as 10mm?
The M8 will measure about 8 mm in diameter, more likely, just a touch undersize, (. 31496") The M10, about 10 mm in diameter, (. 3937") and the M12 about 12 mm in diameter, (. In this example the bolt is 10 mm in diameter, 40 mm long, and the threads are 1.25 mm apart.How big is an m10 hole?
Tap Size| Tap Size | Drill Size |
|---|---|
| M10 x 1.25 | 8.9mm |
| M10 x 1.5 | 8.4mm |
| M11 x 1.50 | 9.7mm |
| M12 x 1.25 | 10.9mm |
Is m12 the same as 12mm?
Yes. M12 is a 12mm diameter thread. You have to be sure the thread pitch measured in threads per millimeter (1.5 here) is the same as what u need.How do you do internal threading?
Step by step (Internal) Threaded Holes (Using a Tap)- Turn the handle of the wrench to wideren the jaws, fit the threading tap with with single groove to start.
- Use a centre punch mark to centre the drill point.
- Drill a hole smaller than the measure needed for the tap.
