Uniform Circular Motion describes the movement of an object traveling a circular path with constant speed. The one-dimensional projection of this motion can be described as simple harmonic motion. A point P moving on a circular path with a constant angular velocity ω is undergoing uniform circular motion.
Keeping this in view, what is the relationship between simple harmonic motion and circular motion?
Uniform Circular Motion describes the movement of an object traveling a circular path with constant speed. The one-dimensional projection of this motion can be described as simple harmonic motion. A point P moving on a circular path with a constant angular velocity ω is undergoing uniform circular motion.
Similarly, is circular motion is SHM? Circular motion is not a form of simple harmonic motion. Circular motion occurs when a particle in motion is subjected to a force acting perpendicular to the direction of motion at all times. SHM occurs when a particle is subjected to a force that is anti-parallel to the particle's motion.
Also know, what is the relation between SHM and uniform circular motion?

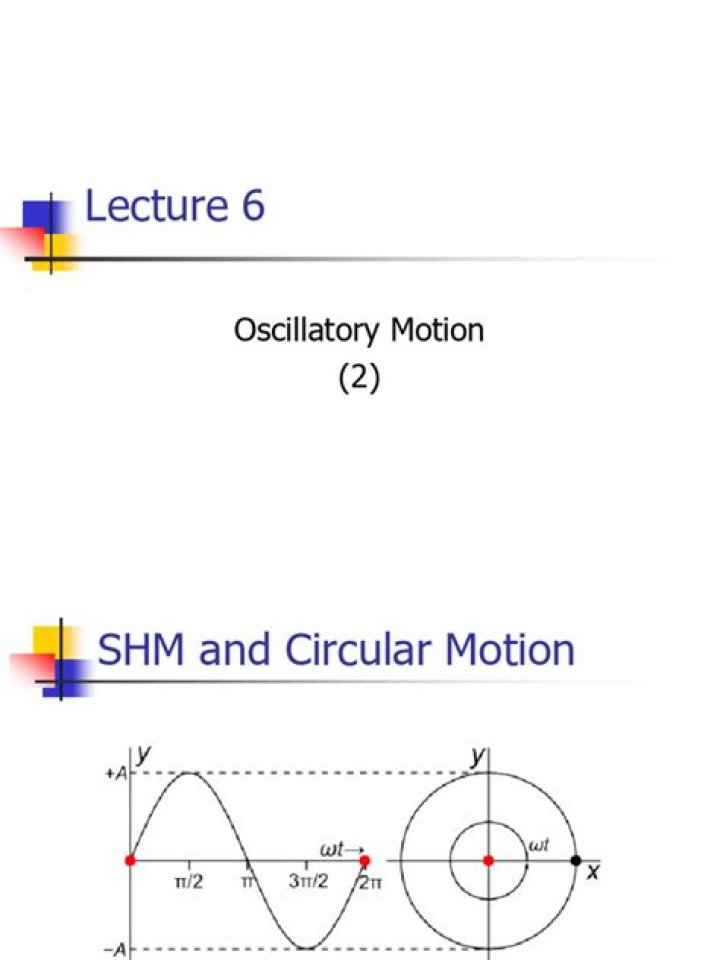

We can conclude that, if a particle moves in a uniform circular motion, its projection can be said to move in a simple harmonic motion, where the axis of oscillation is the diameter of the circle or in other words, simple harmonic motion is the projection of uniform circular motion along the diameter of the circle on
What is the relation between time period and frequency in case of uniform circular motion?
Notes: Time period and Frequency are reciprocal to each other in case of uniform circular motion. Time period = 1 /Frequency Time Period is the time taken by the object to complete one revolution. Frequency is the number of revolutions completed by the object in unit time.
Related Question Answers
What can you say about objects moving in circular motion?
As an object moves in a circle, it is constantly changing its direction. Accelerating objects are objects which are changing their velocity - either the speed (i.e., magnitude of the velocity vector) or the direction. An object undergoing uniform circular motion is moving with a constant speed.Is circular motion periodic?
An example of periodic motion which we hrNe already encountered is uniform circular motion, in which the velocity and acceleration of the body at a given angular position were always the same. In uniform circular motion this position is the center of the circle.What is the difference between harmonic motion and simple harmonic motion?
Harmonic motion would just be any motion that is periodic. For example, motion following a kind of square wave would be harmonic. Simple harmonic motion is motion that is specifically sinusoidal; that is, it can be described by a sine wave.What is the equation of simple harmonic motion?
For a simple harmonic oscillator, an object's cycle of motion can be described by the equation x ( t ) = A cos ? ( 2 π f t ) x(t) = Acos(2pi f t) x(t)=Acos(2πft)x, left parenthesis, t, right parenthesis, equals, A, cosine, left parenthesis, 2, pi, f, t, right parenthesis, where the amplitude is independent of theWhat is exhibit circular motion?
In physics, circular motion is a movement of an object along the circumference of a circle or rotation along a circular path. It can be uniform, with constant angular rate of rotation and constant speed, or non-uniform with a changing rate of rotation.What is the motion?
Motion, in physics, change with time of the position or orientation of a body. Motion that changes the orientation of a body is called rotation. In both cases all points in the body have the same velocity (directed speed) and the same acceleration (time rate of change of velocity).How are the sine and cosine functions relate to the concepts of circular motion?
As a point rotates counterclockwise around a circular path in the complex plane the real component (blue line) oscillates back and forth along the real axis as a cosine function. Meanwhile, the height of the imaginary component (red line) oscillates up and down as a sine function.Which statement is true about an object that is traveling in uniform circular motion?
Which statement is true about an object that is traveling in uniform circular motion? The speed of the object varies. The net force on the object is directed toward the center of the circular path. The direction of the object's velocity is constant.What is centripetal force?
A centripetal force is a net force that acts on an object to keep it moving along a circular path.When can we say that an object is exhibiting a simple harmonic motion?
Simple harmonic motion can be considered the one-dimensional projection of uniform circular motion. If an object moves with angular speed ω around a circle of radius r centered at the origin of the xy-plane, then its motion along each coordinate is simple harmonic motion with amplitude r and angular frequency ω.What kind of motion is executed by a pendulum of a wall clock?
1 Answer. Periodic. Periodic motion is motion that repeats itself at regular intervals of time. Every body executing circular motion can be said to be executing periodic motion.What is oscillatory motion?
A motion repeating itself is referred to as periodic or oscillatory motion. An object in such motion oscillates about an equilibrium position due to a restoring force or torque. This motion is important to study many phenomena including electromagnetic waves, alternating current circuits, and molecules.What is uniform motion?
Definition: This type of motion is defined as the motion of an object in which the object travels in a straight line and its velocity remains constant along that line as it covers equal distances in equal intervals of time, irrespective of the duration of the time.What is the formula for uniform circular motion?
Equations| Equation | Symbol breakdown |
|---|---|
| v = r ω v = r omega v=rω | v v v is linear speed, r is radius, ω is angular speed. |
| T = 2 π ω = 1 f T = dfrac{2pi}{omega} = dfrac{1}{f} T=ω2π=f1 | T T T is period, ω is angular speed, and f is frequency |
