Then, how do you find the shading coefficient of glass?
The shading coefficient is calculated by the equation SC = SHGC / 0.86. For example, for glazing with a SHGC of 0.6, we have 0.6 / 0.86 = 0.69, so the shading coefficient (SC) is 0.69.
Secondly, is higher Shgc better? The lower the SHGC, the less solar heat it transmits and the greater its shading ability. A product with a high SHGC rating is more effective at collecting solar heat during the winter. A product with a low SHGC rating is more effective at reducing cooling loads during the summer by blocking heat gain from the sun.
In this regard, what is Shgc in glass?
Solar Heat Gain Coefficient or SHGC is a measure of how much solar radiation passes through the window. In a cool climate, windows which have a high SHGC allow a greater amount of solar radiation to pass through, offering free solar heating for the home.
What is a good SHGC value?
0.42 to 0.63
Related Question Answers
What is window U value?
The U-Factor measures how well the window in- sulates. While the U-Factor can take any value, in general for windows it ranges from 0.20 to 1.20. The lower the U-Factor, the better the window insulates. The SHGC measures how much of the sun's heat comes through the window. It can range in value from 0 to 1.What is SC glass?

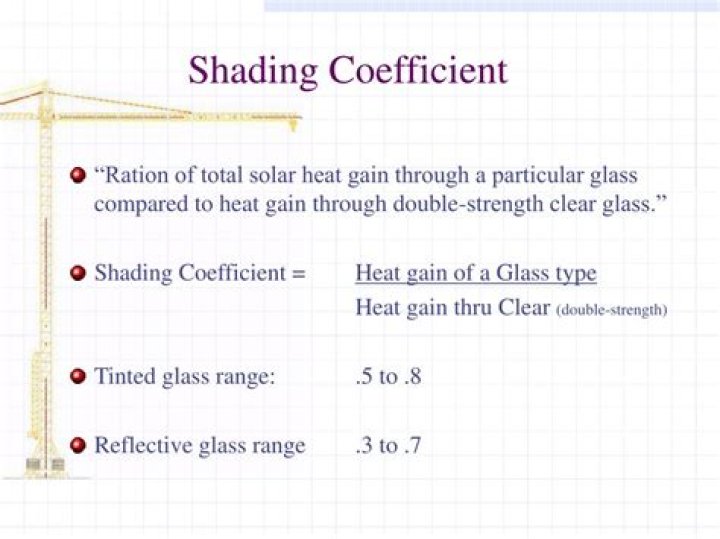

The Shading Coefficient (SC) is a measure of the heat gain through glass from solar radiation. Specifically, the Shading Coefficient is the ratio between the solar heat gain for a particular type of glass and that of double-strength clear glass.How is solar heat gain coefficient calculated?
To perform an approximate conversion from SC to SHGC, multiply the SC value by 0.87. The SHGC is also affected by shading from the frame as well as the ratio of glazing and frame. The SHGC is expressed as a dimensionless number from 0 to 1.What is light to solar gain?
Light-to-solar gain (LSG) is the ratio of the visible light transmittance to the Solar Heat Gain Coefficient (SHGC). LSG=Transmittance(Tvis)/SHGC. A higher LSG ratio means sunlight entering the room is more efficient for daylighting, especially for summer conditions where more light is desired with less solar gain.What is a good U value?
The U-value signifies the heat lost through a given thickness of a particular material. The best insulating materials have a U-value of close to zero – the lower the better. Building regulations currently stipulate that for a new building, the elements must have maximum U-values as follows: Wall – 0.3 W/m2k.What is Low E coating on glass?
Here is the simplest definition: Low Emittance, or Low E, is a razor-thin, colorless, non-toxic coating applied to window glass to improve energy efficiency. These windows are entirely safe and are becoming the standard for energy efficiency in the modern home.What is U value and SHGC?
Solar Heat Gain Coefficient (SHGC) is the measure of the percentage of solar heat gain that passes through a window. A U-Value is the measure of how much heat energy is transferred through a window. Heat can be lost and gained through a window by the processes of conduction, convection and radiation.What does Vt mean for Windows?
Visible TransmittanceWhat do window ratings mean?
Window Efficiency Labels Explained. When lower ratings mean better windows: U-Value/U-Factor: U-Value, sometimes called window U-Factor, measures the rate of heat transfer—it tells you how much heat is lost or gained through your window. According to Energy Star, the U-Value of a window can range from . 25 to 1.25.Which doors are most energy efficient?
Best Energy Efficient Exterior Doors- Fiberglass Exterior Doors. Fiberglass is a poor conductor of heat and electricity.
- Vinyl Doors. Vinyl is another energy efficient door material.
- Steel Doors. Steel doors are also energy efficient as steel is a good thermal insulator.
- Wooden Doors.
- Glass and Weatherstripping.
What is a good air infiltration rating?
The American Architectural Manufacturers Association (AAMA) says that any residential window that achieves a rating below 0.30 cfm/sqft meets the requirements for their gold rating. This is the best rating they offer. This is also the minimum air infiltration rating for the energy star program.What is a good energy rating?
What does an Energy Performance Certificate (EPC) look like? It's a little coloured chart which shows how well the property is rated in terms of energy efficiency. The best rating is A (dark green), the worst is G (bright red).How can I reduce my Shgc?
SHGC and U-factor can be reduced in the glass portion of a window assembly in a number of ways: Low-emissivity (low-e) coatings reduce the ultraviolet and infrared light that passes through the glass, limiting heat gain while preserving visible light transmission.What is the most energy efficient window?
Dual-pane glass insulates almost twice as well as single-pane, while triple-pane glass maximizes your energy efficiency. Inert argon gas can be used between panes of glass to improve insulating properties and help reduce thermal transfer.What is a good performance grade for Windows?
A window rated "R" 15 just passed for residential use only. An "R" 30 or 45 rated window will perform much better.What does SGC mean for Windows?
Server-Gated CryptographyWhat brand of Windows are best?
Best Major Brand Window Manufacturers- Andersen Windows & Doors. In business for over a century, this Minnesota-based company produces a full complement of fenestration products: doors, windows, skylights, and more.
- Jeld-Wen.
- Pella Corporation.
- Marvin Windows and Doors.
What is a good U value for doors?
around 1.6What does argon gas do in Windows?
Benefits of Argon Gas WindowsArgon is the gas most often used between panes in a double- or triple-glazed window. It's colorless and odorless and is denser than the atmosphere, providing more thermal efficiency than having air between the panes.
What is the minimum U value for a window?
1.6 W/m2KWhat is the most important rating for fenestration in hot climates?
In a hot climate, the best U-factor ratings fall between 0.17 and 0.30. To put this in perspective, a standard clear window with one pane of glass will have a U-factor rating of approximately 1.09.How is U factor calculated?
U-value formulaU Value is the reciprocal of all resistances of the materials found in the building element. To calculate the U-Value of the building element the R-Value of all the different components that make up that element will be considered. U-Value (of building element) = 1 / (Rso + Rsi + R1 + R2 …)
