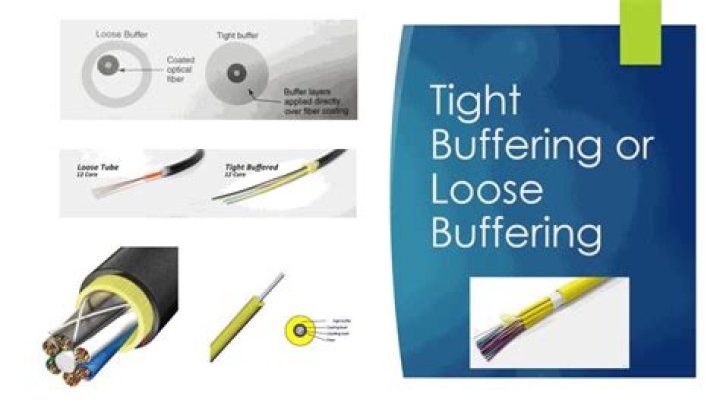

Tight-buffered designs often do not have anti-buckling elements and do not decouple the fiber from extreme stresses, such as the material contractions that are experienced at extremely cold temperatures. This is why loose-tube cables are so widely accepted for use in outdoor environments.

Similarly one may ask, what is a fiber buffer tube?

In a fiber optic cable, a buffer is one type of component used to encapsulate one or more optical fibers for the purpose of providing such functions as mechanical isolation, protection from physical damage and fiber identification.

Also, what is distribution cable? Distribution cables. Distribution cable is the most popular indoor cable, as it is small in size and light in weight. They contain several tight-buffered fibers bundled under the same jacket with Kevlar strength members and sometimes fiberglass rod reinforcement to stiffen the cable and prevent kinking.

Additionally, what is loose tube cable?

loose-tube cable - Computer Definition A fiber optic cable configuration involving a semi-rigid hollow plastic tube that houses and protects a number of optical fibers. There also commonly is an aramid yarn strength member in the cable core.An outer polyethylene jacket surrounds the entire cable.

What is the fiber color code?

Fiber Type Color Code
Multimode (62.5/125) (OM1) Orange Slate
Multimode (100/140) Orange Green
Single-mode (OS1, OS1a, OS2) Yellow Yellow
Polarization Maintaining Single-mode Blue Undefined

Related Question Answers

How much fiber is in a buffer tube?

12 fibers

What are the different types of fiber optic cables?

There are three types of fiber optic cable commonly used: single mode, multimode and plastic optical fiber (POF). Transparent glass or plastic fibers which allow light to be guided from one end to the other with minimal loss.

Why is there a limit to how tight fiber optic cables can be wound up while in use?

12. Cable ties used on fiber optic cables __________. Tightening cable ties can put harmful stress on the fibers (or pairs in UTP copper cables), so hand tighten them and cut off the excess length. Even better, use soft "hook and loop" ties that can be reopened to move cables.

How strong is fiber optic cable?

How strong? The glass fiber's theoretical maximum (tensile) strength is about 2 million pounds per square inch, but the practical limit is 10 to 20 percent of that. The cross-sectional area is so small,about 20 millionths of an inch,that the actual maximum fiber strength is about five to 10 pounds of tension.

How do you protect fiber optic cable?

Fiber optic cables should be placed in their own dedicated ducts or trays. Do not mix copper cable and fiber cable in the same ducts or trays. After the fiber optic cable is installed into a duct or innerduct, end plugs should be installed to provide an effective water seal.

What are the 3 main layers of Fibre optic cabling and list their function?

The three basic elements of a fiber optic cable are the core, the cladding and the coating. Core: This is the light transmission area of the fiber, either glass or plastic. The larger the core, the more light that will be transmitted into the fiber.

How do you Ribbonize loose tube fibers?

1.3 Place the fibers in color-coded order in the fiber arrangement tool. 1.4 Place the fiber ends so they extend 2 to 3 inches beyond the tool. Insert the holding clips into position to hold the fibers in place. 1.5 Grasp the fibers and pull them back, aligning the fiber ends within a 1/2-inch of the tool's edge.

Which conductor is used in distribution line?

AAC, AAAC, ACSR Aluminium Conductors These overhead aluminium conductors are used as power transmission and distribution lines. All aluminium conductors are made up of one or more strands of aluminium wire depending on the specific application.

What is a primary conductor?

With most installations, conductors supplying the transformer (or primary side conductors) are protected at the conductor's ampacity. Even if they aren't, they are usually protected with the next higher standard overcurrent device rating above the ampacity of the conductor.

What is 900um fiber?

Tight-buffered 900um fiber includes an additional 900um layer of hard plastic over the 250um fibers for protection. Tight-buffered 900um fiber cable comes in various fiber counts that typically range from 2 to 144 fibers, with larger fiber counts featuring fiber subunits of 6 or 12 fibers within the cable.

How much does fiber cable weight?

Product Description
FIBER COUNT NO. OF LOOSE TUBES NOMINAL CABLE WEIGHT
LBS/1000'
144 12 169

What does a fusion splicer do?

Fusion splicing is the act of joining two optical fibers end-to-end. The goal is to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the intact fiber.

What is ribbon splicing?

Since mass mechanical splicing is designed to be used with ribbon or ribbonized fiber cable, it is first necessary to construct ribbons out of loose-tube 250-micron fibers. The process is also an efficient solution for terminating a large number of fibers to active equipment.

What is splicing machine?

In fusion splicing a machine is used to precisely align the two fiber ends then the glass ends are "fused" or "welded" together using some type of heat or electric arc. This produces a continuous connection between the fibers enabling very low loss light transmission. (
