Beside this, is FPT and Fnpt the same?
MPT and FPT are both sub-types of NPT. National Pipe Threads (NPT) have tapered threads.
| Definition of Pipe Thread Acronyms | |
|---|---|
| NPT | National Pipe Thread (tapered) |
| FPT | Female Pipe Thread (interchangeable with NPT) |
| FIP | Female Iron Pipe (interchangeable with NPT) |
| MPT | Male Pipe Thread (interchangeable with NPT) |
Also, what does NPT mean in fittings? National Pipe Taper
Likewise, what does Fnpt mean in piping?
FPT, or FNPT, or NPT(F): Female Pipe Thread (interchangeable with NPT) FIP: Female Iron Pipe (interchangeable with NPT) MPT, MNPT or NPT(M): Male Pipe Thread (interchangeable with NPT) MIP: Male Iron Pipe (interchangeable with NPT)
What is the difference between NPT thread and NPT thread?

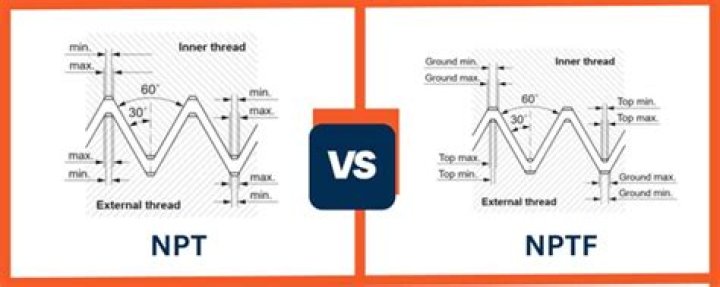

NPT stands for National Pipe Taper. seal through thread form deformation at assembly, while NPT thread roots are designed to allow clearance with mating thread crests on assembly. While NPT and NPTF are both designed to screw together, NPT requires a seal to be leak proof while NPTF do not.
Related Question Answers
What MPT means?
Master of Physical Therapy (also seen as MSPT) MPT.What does MNPT mean?
Male National Pipe Thread TaperDoes NPT fit MIP?
Yes, NPT (national pipe thread) has the same thread dimensions as an MIP (male iron pipe) and FIP (female iron pipe).Are NPT and MPT threads compatible?
MPT Male Pipe Thread (interchangeable with NPT) National pipe thread connection to an FPT (Female Pipe Thread) or equivalently an FIP (Female Iron Pipe).What does IPS stand for in plumbing?
Iron Pipe StraightWhat does NTP mean in plumbing?
American National Standard Pipe Thread standards, often called national pipe thread standards for short, are U.S. national technical standards for screw threads used on threaded pipes and pipe fittings.What is NPT vs MIP?
NPT National Pipe Thread (tapered) National Pipe Thread Taper (NPT) is a U.S. standard for tapered threads on threaded pipes and fittings. MIP Male Iron Pipe (interchangeable with NPT) Male Iron Pipe, a threaded pipe or fitting connection to an FIP or FPT fitting.What is GHT and NPT?
What are GHT and NPT? Garden hose threads (GHT) are screw thread standards set by ANSI-ASME B1. 20.7 for couplings, fittings, nozzles, and valves for hoses. On the other hand, National pipe taper threads (NPT) are screw thread standards set by ANSI-ASME B1. 20.1 for threaded pipes and fittings.How is NPT size measured?
NPT fittings are slightly tapered so the “nominal†diameter is the diameter in the middle of the threaded portion, as measured by the top (crest) of the threads.What is female national pipe thread?
NPT Threads may be referred to as MPT (Male Pipe Thread), MNPT, or NPT(M) for male external threads, and FPT (Female Pipe Thread*), FNPT, or NPT(F) for female (internal) threads. A 3/4†NPT pipe thread has an outside diameter -OD - of 1.050 inches.How do I know if thread is NPT?
NPT/NPTF Thread Type – National Pipe Tapered FuelThis thread type is most commonly used in North America. You'll recognize it by its tapered outer and inner diameter which is self-sealing. When torqued the flanks of the threads compress against each other forming a leak-tight seal.
