If you want to check the LUNs that are provisioned to the server, run "fdisk -l" or "cat /proc/scsi/scsi". Keep in mind that you may see duplicates if you have multiple paths to the SAN.

Then, how do I find my storage path in Linux?

  • You can check your disk space simply by opening a terminal window and entering the following: df.
  • You can display disk usage in a more human-readable format by adding the –h option: df –h.
  • The df command can be used to display a specific file system: df –h /dev/sda2.

    • Also, how check SAN LUN Linux? How to Scan/Detect New LUNs on Linux

    1. 1) Using /sys class file. You can use the echo command to scan each scsi host device as below.
    2. 2) Scan lun with multipath/powermt. You can check current multipath setup using multipath or powermt command.
    3. 3) Using Script.
    4. Conclusion.

    In respect to this, what is SAN storage Linux?

    A storage area network (SAN) or storage network is a computer network which provides access to consolidated, block-level data storage. SANs are primarily used to access storage devices, such as disk arrays and tape libraries from servers so that the devices appear to the operating system as direct-attached storage.

    How do I know if my storage is local or SAN?

    You can go to a command prompt and type "net use" to get a list of drive letters and mappings. These could be NAS, SAN etc but all other drives not listed should be local. Also, you can go to disk managemet to find out how the local drives are setup.

    Related Question Answers

    How do I see all drives in Linux?

    Let's see what commands you can use to show disk info in Linux.
    1. df. The df command in Linux is probably one of the most commonly used.
    2. fdisk. fdisk is another common option among sysops.
    3. lsblk. This one is a little more sophisticated but gets the job done as it lists all block devices.
    4. cfdisk.
    5. parted.
    6. sfdisk.

    How do I see devices on Linux?

    Find out exactly what devices are inside your Linux computer or connected to it. We'll cover 12 commands for listing your connected devices.
    1. The mount Command.
    2. The lsblk Command.
    3. The df Command.
    4. The fdisk Command.
    5. The /proc Files.
    6. The lspci Command.
    7. The lsusb Command.
    8. The lsdev Command.

    How do I see disk space in Linux?

    Linux command to check disk space
    1. df command – Shows the amount of disk space used and available on Linux file systems.
    2. du command – Display the amount of disk space used by the specified files and for each subdirectory.
    3. btrfs fi df /device/ – Show disk space usage information for a btrfs based mount point/file system.

    How do I check disk space in Unix?

    Unix command to check disk space:
    1. df command – Shows the amount of disk space used and available on Unix file systems.
    2. du command – Display disk usage statistic for each directory on Unix server.

    Which command is used for checking disk space usage in Linux?

    df command

    What devices use Linux?

    30 Big Companies and Devices Running on GNU/Linux
    • Google. Google, an American based multinational company, the services of which includes search, cloud computing and online advertising technologies runs on Linux.
    • Twitter. Twitter, famous online social networking and micro-blogging site that is Powered by nix.
    • 3. Facebook.
    • Amazon.
    • IBM.
    • McDonalds.
    • Submarines.
    • NASA.

    What does du command do in Linux?

    The du command is a standard Linux/Unix command that allows a user to gain disk usage information quickly. It is best applied to specific directories and allows many variations for customizing the output to meet your needs. As with most commands, the user can take advantage of many options or flags.

    Which is better SAN or NAS?

    SANs are the higher performers for environments that need high-speed traffic such as high transaction databases and ecommerce websites. NAS generally has lower throughput and higher latency because of its slower file system layer, but high-speed networks can make up for performance losses within NAS.

    Is Nimble Storage SAN or NAS?

    Nimble, which makes so-called storage arrays, that go up against EMC (EMC), is now entering the classic domain of NetApp (NTAP), the NAS market, writes Nandury, citing "conversations with our contacts in the industry."

    What is difference between San NAS storage?

    A NAS is a single storage device that serves files over Ethernet and is relatively inexpensive and easy to set up, while a SAN is a tightly coupled network of multiple devices that work with block-based data and is more expensive and complex to set up and manage.

    Is iSCSI a SAN or NAS?

    The performance of NAS is thus enhanced by SAN technology. Like Fibre Channel, iSCSI is a block storage protocol. In a pristine iSCSI environment, both hosts and storage targets have Ethernet or Gigabit Ethernet interfaces, and the IP network serves as the SAN infrastructure.

    Is NetApp a SAN or NAS?

    NetApp is now the fastest growing enterprise SAN storage vendor: Accelerate your SAN solutions with NetApp's leading performance. Leverage the best cloud-connected infrastructure to flexibly move and protect your data across your hybrid cloud environment.

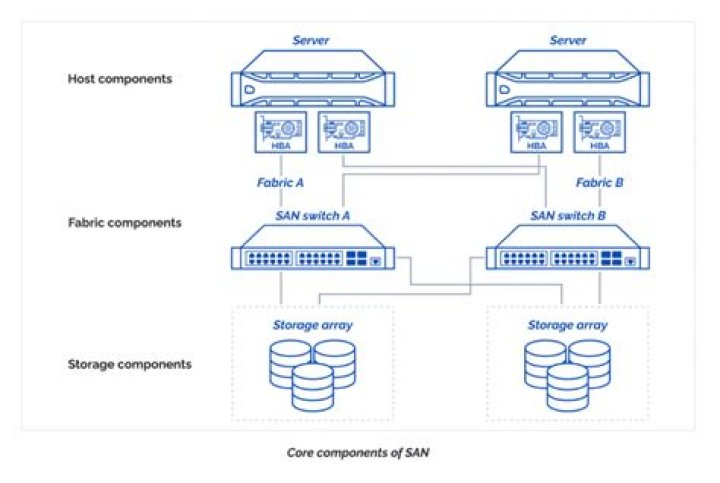

    What is SAN storage and how it works?

    A storage area network (SAN) is a dedicated, independent high-speed network that interconnects and delivers shared pools of storage devices to multiple servers. Each server can access shared storage as if it were a drive directly attached to the server.

    What is SAN storage?

    A Storage Area Network (SAN) is a specialized, high-speed network that provides block-level network access to storage. SANs are typically composed of hosts, switches, storage elements, and storage devices that are interconnected using a variety of technologies, topologies, and protocols.

    What is a LUN in storage?

    In simple terms, a logical unit number (LUN) is a slice or portion of a configured set of disks that is presentable to a host and mounted as a volume within the OS. Any remaining capacity can then be 'sliced' into additional logical unit number (LUNs) as required.

    What are the advantages of SAN?

    SAN advantages include:
    • Elimination of bandwidth bottlenecks associated with LAN-based server storage.
    • No scalability limitations imposed by SCSI bus-based implementations.
    • High availability.
    • Greater fault tolerance.
    • Centralized storage management.
    • Faster backups.
    • Global file systems.
    • Rapid data migration.

    How do I rescan HBA in Linux?

    Online rescanning of LUNs on Linux hosts
    1. Update the HBA driver by installing or updating the files sg3_utils-*.
    2. Ensure that DMMP is enabled.
    3. Ensure that the LUNS that need to be expanded are not mounted and are not used by applications.
    4. Run sh rescan-scsi-bus.sh -r .
    5. Run multipath -F .
    6. Run multipath .

    How do I scan newly added LUN in Linux?

    Follow the steps below to scan the new LUN in OS and then in multipath.
    1. Rescan SCSI hosts: # for host in 'ls /sys/class/scsi_host' do echo ${host}; echo "- - -" > /sys/class/scsi_host/${host}/scan done.
    2. Issue LIP to FC hosts:
    3. Run rescan script from sg3_utils:

    How increase LUN size in Linux?

    Resizing a LUN:
    1. Increase the size of the LUN on the SAN.
    2. On the server, execute `echo 1 > /sys/block/sdX/device/rescan`.
    3. Resize the MPIO map. a) On SLES11 or SLES12, use `multipathd -k'resize map <MPIO_MAP_NAME>'`

    What is a LUN it?

    A logical unit number (LUN) is a unique identifier for designating an individual or collection of physical or virtual storage devices that execute input/output (I/O) commands with a host computer, as defined by the Small System Computer Interface (SCSI) standard.

    How do I find the WWN in Linux?

    You can easily identify how many HBA cards are installed on your Linux system by running the lspci command.

    How do I know if my Windows disk is local or SAN?

    Using Disk Manager
    1. Access Disk Manager under "Computer Management" in "Server Manager" or in the command prompt with diskmgmt.msc.
    2. Right-Click on the side-bar of the disk you wich to view and select "Properties"
    3. You will see the LUN number and the target name. In this example it's "LUN 3" and "PURE FlashArray"

    Where is iSCSI disk in Linux?

    Steps
    1. Enter the following command to discover the iSCSI target: iscsiadm --mode discovery --op update --type sendtargets --portal targetIP.
    2. Enter the following command to create all needed devices: iscsiadm --mode node -l all.
    3. Enter the following command to see all the active iSCSI sessions: iscsiadm --mode session.

    How do you identify if a disk is a local or SAN disk in Linux?

    Re: How to find the local disks and SAN disks in linux

    Another way is to examine the /sys filesystem. To know how e.g. /dev/sda is connected to the system, run "ls -l /sys/block/sda". There is a symlink "device" and the long directory listing tells you where the symlink points to.

    How do I find the LUN ID in Linux vmware?

    Determine Virtual Machine Disk SCSI ID

    In the vSphere Client, the SCSI ID is displayed in the Virtual Machine configuration. The SCSI ID has two numbers (Controller:Device) and can be found in the Virtual Device Node section.

    What are the steps to create LVM of newly created LUN?

    NOTE: Here vda is virtual machines hard drive as I'm using virtual machine for demonstration, /dev/sda is added additionally for storage.
    1. Step 1: Creating LVM Drive for LUNs. We going to use /dev/sda drive for creating a LVM.
    2. Step 2: Creating Logical Volumes for LUNs.
    3. Step 3: Define LUNs in Target Server.
