Gas chromatography uses relatively long packed or open tubular capillary columns and is subsequently far more efficient at separation than fractional distillations with short reflux columns. The chromatography column does not have discrete plates.
Similarly one may ask, what is an advantage of using gas chromatography?
GC is used to separate complex mixtures. It is much better at this than thin-layer or paper chromatography. This is because it is more sensitive - allowing the determination not only of what chemicals are in the mixture, but also how much of each chemical there is.
Subsequently, question is, what is a theoretical plate and the relationship between separation efficiency? The number of theoretical plates is often used to establish the efficiency of a column. Plate numbers range from 100 to 106. The more theoretical plates available within a column, the more equilibrations between the stationary and mobile phases are possible and the better the quality of the separation.
People also ask, what would be a disadvantage of having too fast of a gas flow rate?
If the flow is too fast for the equilibration rate or vice versa, it will cause band broadening due to mass transfer effects. The B term describes the longitudinal diffusion, and is related to diffusion of the analyte in the mobile phase.
What does gas chromatography separate based on?
Gas chromatography separates according to vapor pressure and not boiling point. For example, if you have a non-polar column, but a mixture of alcohols and hydrocarbons, the higher boiling point alcohols will elite much sooner than the corresponding hydrocarbon of the same boiling point.
Related Question Answers
What is principle of gas chromatography?

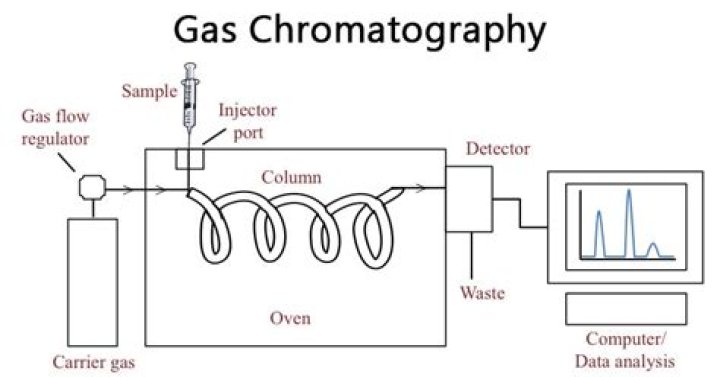

Principle of gas chromatography: The sample solution injected into the instrument enters a gas stream which transports the sample into a separation tube known as the "column." (Helium or nitrogen is used as the so-called carrier gas.) The various components are separated inside the column.What are the disadvantages of chromatography?
The disadvantages of Chromatography:- The chromatography equipment can only be operated by a trained person.
- Chromatography instruments are expensive.
- An error occurs due to the overloading of the samples.
- Chromatography equipment must be handled with care because of these parts are expensive and sensitive.
What are the advantages and disadvantages of temperature programming in gas chromatography?
There are disadvantages in this method when the sample contains heavy compounds with higher molecular weights and higher boiling points. These disadvantages include: Poor resolution of lighter components at higher temperatures. Broad peaks for the compounds that elute later.What elutes first in gas chromatography?
The mixture of compounds in the mobile phase interacts with the stationary phase. Each compound in the mixture interacts at a different rate. Those that interact the fastest will exit (elute from) the column first. Those that interact slowest will exit the column last.Is gas chromatography qualitative or quantitative?
Gas chromatography (GC) can be used for both qualitative and quantitative analyses. This chapter begins with a brief look at qualitative analysis. The chromatographic parameter used for qualitative analysis is the retention time or some closely related parameter.Who discovered gas chromatography?
Modern gas chromatography (GC) was invented by Martin and James in 1952 [1], and has become one of the most important and widely applied analytical techniques in modern chemistry.What is column efficiency?
Column efficiency, indicated as the number of theoretical plates per column, is calculated as N = 5.54 (tR / w0.5)2 where tR is the retention time of the analyte of interest and w0.5 the width of the peak at half height.How does temperature affect resolution in gas chromatography?
Increasing the carrier gas flow rate and/or the temperature will send the vapors through the column faster, which will lower the retention time and worsen the resolution. Lowering the temperature and/or flow rate increases retention times and broadens the peaks.How can you improve the separation of chromatography?
In liquid chromatography, the easiest way to increase a solute's retention factor is to use a mobile phase that is a weaker solvent. When the mobile phase has a lower solvent strength, solutes spend proportionally more time in the stationary phase and take longer to elute.Why does Silanization reduce tailing of chromatographic peaks?
Explain how silanization reduces tailing of chromatographic peaks? Silanization cpas hydroxyl groups to which strong hydrogen bonding can occur. Beginning of band abrupt, but back trials off slowly as tightly bound solute is gradually eluted.What type of substance is the mobile phase in gas chromatography quizlet?
What type of substance is a mobile phase in gas chromatography? An inert gas is used as the mobile phase in gas chromatography. The most commonly used gas is helium.What is the role of helium gas in gas chromatography quizlet?
Helium is most commonly used because it is safer than, but comprable to hydrogen in efficiency, has a larger range of flow rates and is compatible with many detectors.What are the considerations in choosing a chromatographic solvent?
Stability: The analyte should be stable for considerable period of time in the solvent. In other words, the solvent you choose should not react or aid any degradation of the analyte. Interference: Your solvent should not give any interference at your peak of interest.What is the disadvantage to smaller particle size of the stationary phase?
backpressureWhich of the following is not a feature of carrier gas used in gas chromatography?
Its application is limited because of semi-permanent retention of the analyte. 2. Which of the following is not a feature of carrier gas used in gas chromatography? Explanation: It should be highly pure.What is height equivalent to a theoretical plate?
4 Efficiency. The efficiency of a column is measured by the number of theoretical plates (N), or more often, the height equivalent to a theoretical plate (HETP or H).How do you increase the efficiency of a column?
Decreasing particle size thus is a useful method for improving column efficiency and providing better separations. changing to particles that are half as big, while keeping the column length the same, will double the performance, but increase the required pressure by a factor of four.How is Hetp calculated?
The width of these peaks increases based on the square root of the distance the peak has migrated on the graph the chromatogram produces. This lets you calculate HETP = σ 2/__L for the standard deviation of the distances "sigma" σ and the each distance traveled L. The equation also ensures HETP measures a distance.What is plate efficiency?
The plate efficiency has been defined as Murphree's plate efficiency with the vapor composition in equilibrium with the liquid leaving the plate. This efficiency is reasonable only when the liquid is well mixed (as described in the later sections) and there is no composition gradient of the liquid on the plate.What is Hetp?
Simplified peak evaluation by measurement of. peak width and asymmetry factor. Peak broadening is typically described as plate number N or as height equivalent to a theoretical plate (HETP). This concept is equivalent to a tanks-in-series model reflecting the number of equilibrium stages represented by the column.How do you increase the number of theoretical plates?
One obvious way to increase the number of plates is to increase the length of the column. Doubling the length doubles the number of theoretical plates. One cautionary note about this is to consider the square root dependency on the number of plates in the equation.What is a theoretical plate and why is it important?
Theoretical plate number (N) is an index that indicates column efficiency. It describes the number of plates as defined according to plate theory, and can be used to determine column efficiency based on calculation in which the larger the theoretical plate number the sharper the peaks.Why resolution is important in chromatography?
The resolution of a elution is a quantitative measure of how well two elution peaks can be differentiated in a chromatographic separation. If the resolution is greater than one, the peaks can usually be differentiated successfully.What is column efficiency in distillation?
The efficiency of a particular section of a column (ηsection) is the number of theoretical stages (nth) found in a section of a column divided by the number of actual trays (ntrays):Which type of GC detector is most commonly used?
FIDWhy is helium used in gas chromatography?
Carrier gases in gas chromatography are used to move the solutes through the column. Helium provides good efficiency and analysis times but is an expensive choice for a carrier gas. Hydrogen provides the fastest analysis times over a broad linear velocity range.How does boiling point affect gas chromatography?
The lower the boiling point is, the higher the vapor pressure of the compound and the shorter retention time usually is because the compound will spent more time in the gas phase.What is stationary phase in gas chromatography?
The stationary phase is a microscopic layer of liquid or polymer on an inert solid support, inside a piece of glass or metal tubing called a column (an homage to the fractionating column used in distillation).What are the detectors used in gas chromatography?
In gas chromatography:- Flame ionization detector (FID)
- Flame photometric detector (FPD)
- Nitrogen Phosphorus Detector (NPD)
- Atomic-emission detector (AED)
